wall Mounted Line Single Stage 3000psi Nitrogen Gas Regulator
Application
Laboratory ，Gas Chromatography ，Gas Lasers ，Gas Bus-bar ，Petrochemical Industry ，Testing Equipment
Design Feature
Single-stage pressure reducer
Maternal and diaphragm use hard seal form
Body NPT:1/4”NPT(F)
The internal structure easy to purge
Can set filters Can use a

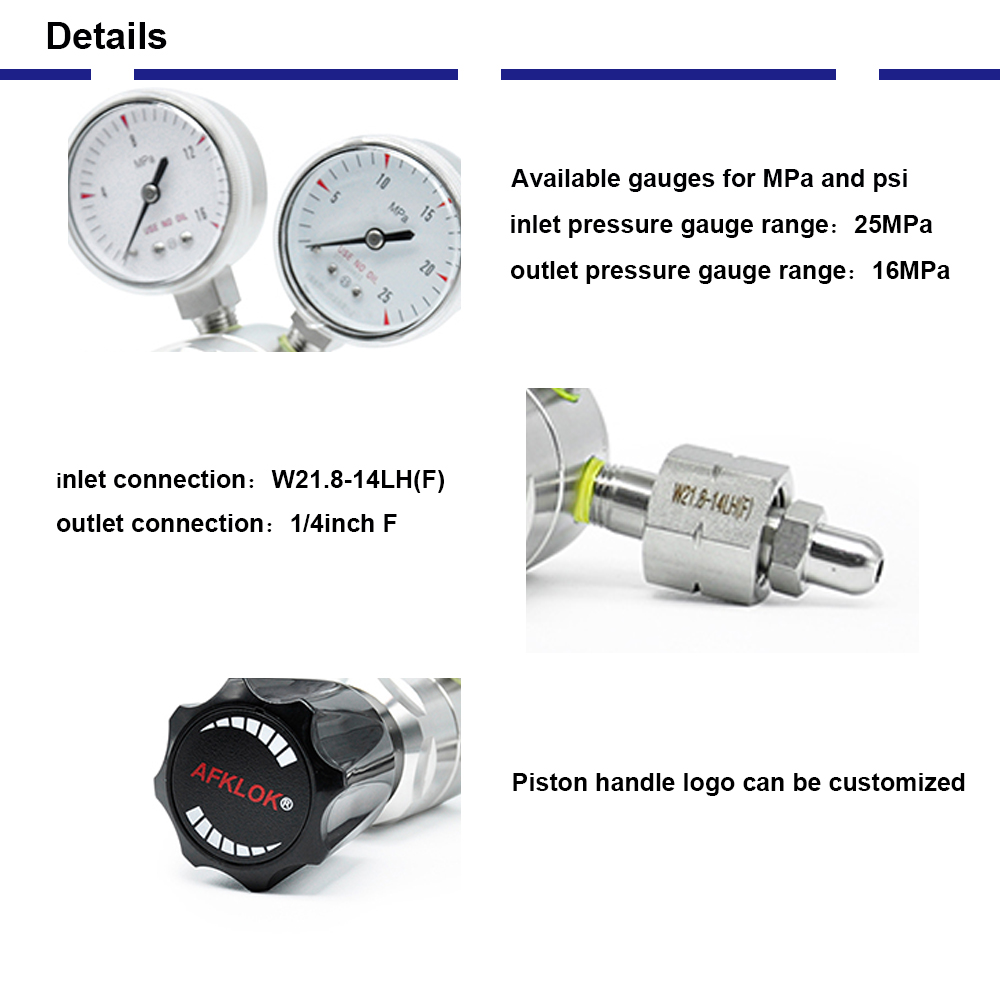

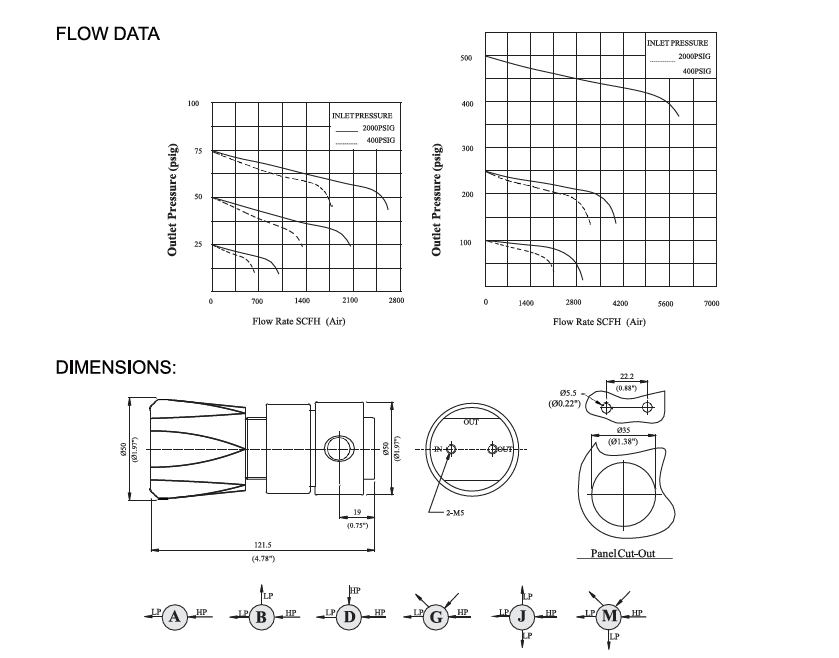

Product Parameenters
| 1 | Maximum Inlet Pressure | 500,3000psig |
| 2 | Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig |
| 3 | Safety test pressure | 1.5 times maximum inlet pressure |
| 4 | Operating Temperature | -40°F to 165°F / -40°c to 74°c |
| 5 | Leakage Rate AgainstAtmosphere | 2*10-8atm cc/sec he |
| 6 | Cv value | 0.08 |
Materials of High Flow Nitrogen Regulator
| 1 | Body | 316L,Brass |
| 2 | Bonnet | 316L. Brass |
| 3 | Diafragm | 316L |
| 4 | strainer | 316L(10mm) |
| 5 | Seat | PCTFE,PTEE,Vespel |
| 6 | Spring | 316L |
| 7 | Plunger valve core | 316L |
Ordering Information
|
R11 |
L |
B |
B |
D |
G |
00 |
02 |
P |
|
Item |
Body Material |
Body Hole |
Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
|
R11 |
L:316 |
A |
D:3000 psi |
F:0-500psig |
G:Mpa guage |
00:1/4″NPT(F) |
00:1/4″NPT(F) |
P:Panel mounting |
| B:Brass |
B |
E:2200 psi |
G:0-250psig |
P:Psig/Bar Guage |
01:1/4″NPT(M) |
01:1/4″NPT(M) |
R:With relief valve |
|
| D | F:500 psi |
K:0-50pisg |
W:No guage |
23:CGGA330 |
10:1/8″ OD |
N:Needle calve |
||
| G |
L:0-25psig |
24:CGGA350 |
11:1/4″ OD |
D:Diaphregm valve | ||||
| J |
27:CGGA580 |
12:3/8″ OD | ||||||
| M |
28:CGGA660 |
15:6mm OD | ||||||
| 30:CGGA590 | 16:8mm OD | |||||||
| 52:G5/8″-RH(F) | ||||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |
PCR laboratory gas piping system includes PCR laboratory centralized gas supply system and indoor cylinder gas supply system, which can meet your different levels of requirements for the safe use of gas. The central gas supply piping system project is mainly to provide standard gas with stable quantity and pressure for the analytical equipment selected by the test/laboratory to ensure the safety of its storage and use. To protect the analysts and testers from toxic and harmful gases in the experiments. According to the requirements of the national standard, all the gases used are stored in the gas storage room, and centralized transmission is realized to form a central gas supply system. The system adopts the pipeline gas delivery methods of one tow, one tow, multiple tow and multiple tow, which can realize segment control when one tow and switch control when multiple tow and multiple tow; and can ensure the standard gas flow, pressure stability and value transfer without change, and meet the technical requirements of analysis and testing equipment for the gas used.
