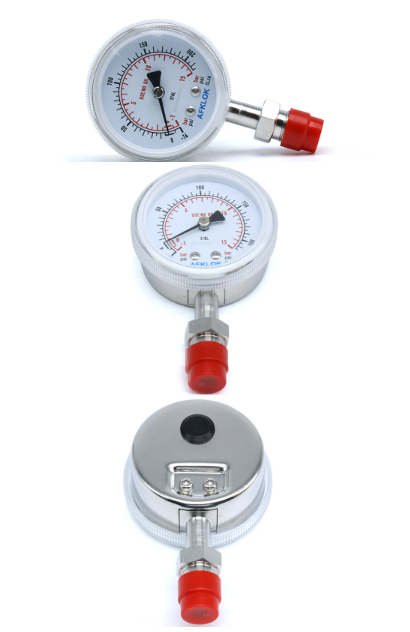

Stainless Steel Pressure Gauges 1/4in Male VCR Bottom Entry Pressure Gauge(0 to 250bar) Dial Size 50mm
Reasons why pressure gauges with VCR connectors are worth choosing
High sealing performance: VCR connections have excellent sealing performance to prevent leakage and contamination. This is
important for applications requiring high purity gases and high vacuum environments. Repeatable Connections: VCR fitting
connections are repeatable, allowing them to be disassembled and connected over and over again without causing the connection to
fail or leak. This makes it easier to replace and maintain pressure gauges. High Stability: The design of the VCR connector
connection allows the gauge to maintain a stable connection for long periods of time and is less susceptible to vibration and
temperature changes, providing accurate pressure measurements.
|
Brand Name
|
AFKLOK
|
|
Model Number
|
YTF50VCR
|
|
Product Name
|
Pressure Gauge
|
|
Material
|
SS316
|
|
Application
|
Laboratory gases and high-purity gases
|
|
Connection
|
Male VCR
|
|
Pressure range
|
-1 to 15bar
|
|
Dial size
|
50mm
|
|
Size
|
1/4in
|
|
Certification
|
CE ISO9001
|
|
MOQ
|
1 Pcs
|
|
Color
|
Sliver
|
1/8-inch (3.18 mm) VCR fitting connection: This is the smallest size VCR fitting connection and is suitable for smaller piping and systems.
Laboratory and Scientific Research: Accurate monitoring and control of gas pressure is required in scientific laboratories and research institutes.Pressure gauges with VCR connector connections are commonly used in laboratory gas systems in equipment such as gas chromatographs, mass spectrometers and laboratory reactors.
Semiconductor Manufacturing: Accurate control of ultra-high purity gases is critical in the semiconductor manufacturing process. pressure gauges connected by VCR connectors are highly hermetic and reliable, and are suitable for ultra-high purity gas sensing and control, such as gas delivery and cavity pressure monitoring.
Q: How do I properly install and connect a gauge with a VCR fitting connection?
A: A detailed installation guide will be provided which includes connection procedures, tightening torque requirements, and recommendations for necessary seals and tools. We strongly recommend following the instructions in the guide and ensuring that the connection is completely sealed.
Q: What is the measuring range and accuracy of the pressure gauge?
A: We will provide you with a table of technical specifications for the measuring range and accuracy class of the pressure gauge. Measuring ranges are usually expressed in units (e.g. bar, PSI), while accuracy levels are expressed in percentage or decimal form. Customers can choose the appropriate range and accuracy class according to their needs.
Q: How to calibrate and verify the pressure gauge connected with VCR connector?
A: We will provide advice on calibration and verification, including recommended intervals and methods. Typically, calibration requires the use of specialized calibration equipment and following standard procedures. We can also provide calibration services or recommend partner calibration laboratories.
Q: How reliable and long-lasting are the pressure gauges?
A: Our pressure gauges are subject to stringent quality control and testing for high reliability and long service life. We will provide relevant certification and warranty information, and we also advise our customers to carry out appropriate maintenance and servicing according to the usage environment and application requirements.
Q: Are there customization options for specific applications?
A: We offer customization options to meet the needs of specific applications. Customers can discuss their specific needs with our sales team and we will provide a customized solution based on their requirements.
