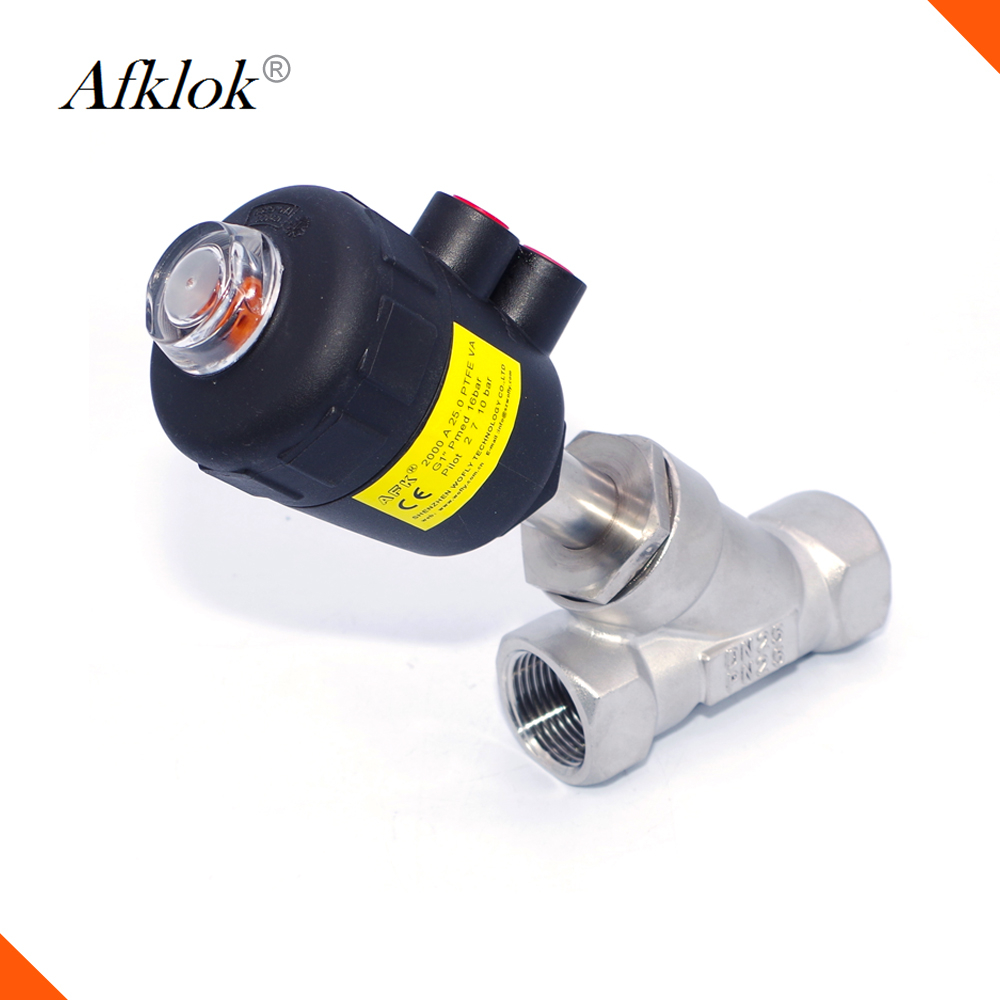

Stainless Steel Normally Closed Pneumatic Seat Valve

Short Description:

*Pressure range:0~16bar

*Medium temperature:-10℃~+60℃

*Environmental temperature:-10℃~+60℃

*Body material:Stainless steel

*Sealing material: PTFE

*Actuator material:PA

*Medium:Neutral gas, air, water

*Manufacturing standard:GB

*Type: normally closed or normally opened


Product Detail

Video

Parameters

FAQ

Product Tags

Pneumatic Seat Valve

Features of Pneumatic Seat Valve

*PPS Actuator material suitable for environmental temperature:+5℃~130℃

*No return spring double acting actuators

*Tri-clamp or BSP connection

*Electronic position feedback

*Independent adjustable stroke limit, suitable for high low flow schedule

*Manual emergency switch

*Pilot valve suitable Namur adapter

seat valve

  • Previous:
  • Next:

  • 123

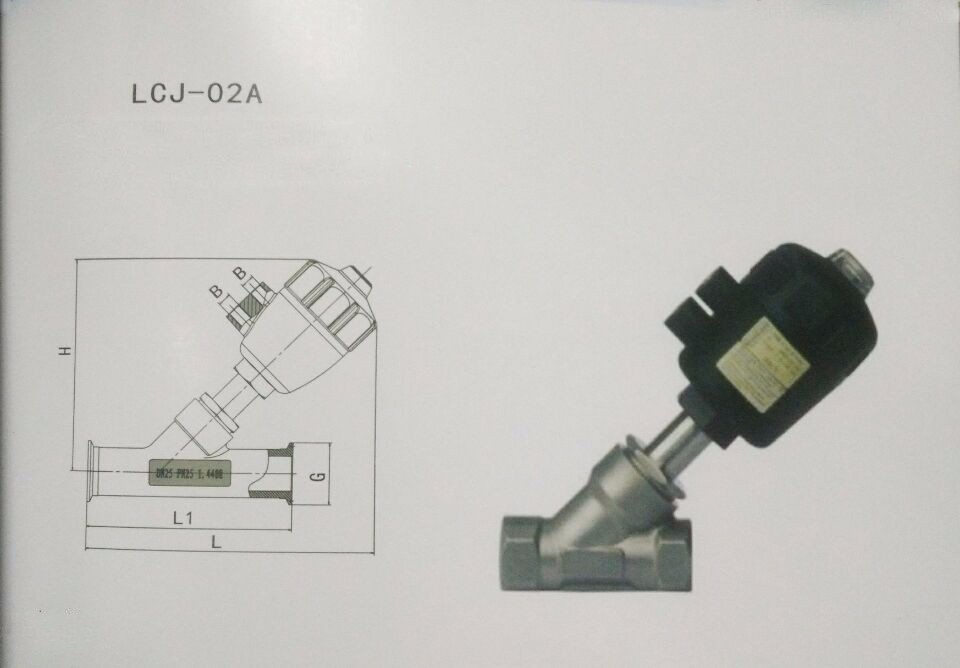

    Specification and size

    Size
    L
    L1
    G
    B
    H
    DN15
    173
    85
    1/2″
    G1/4″
    147
    DN20
    182
    95
    3/4″
    G1/4″
    148
    DN25
    209
    103
    1″
    G1/4″
    175
    DN32
    219
    118
    1 1/4″
    G1/4″
    180
    DN40
    243
    130
    1 1/2″
    G1/4″
    203
    DN50
    265
    148
    2″
    G1/4″
    213
    DN65
    287
    190
    2 1/2″
    G1/4″
    233
    DN80
    315
    225
    3″
    G1/4″
    244
