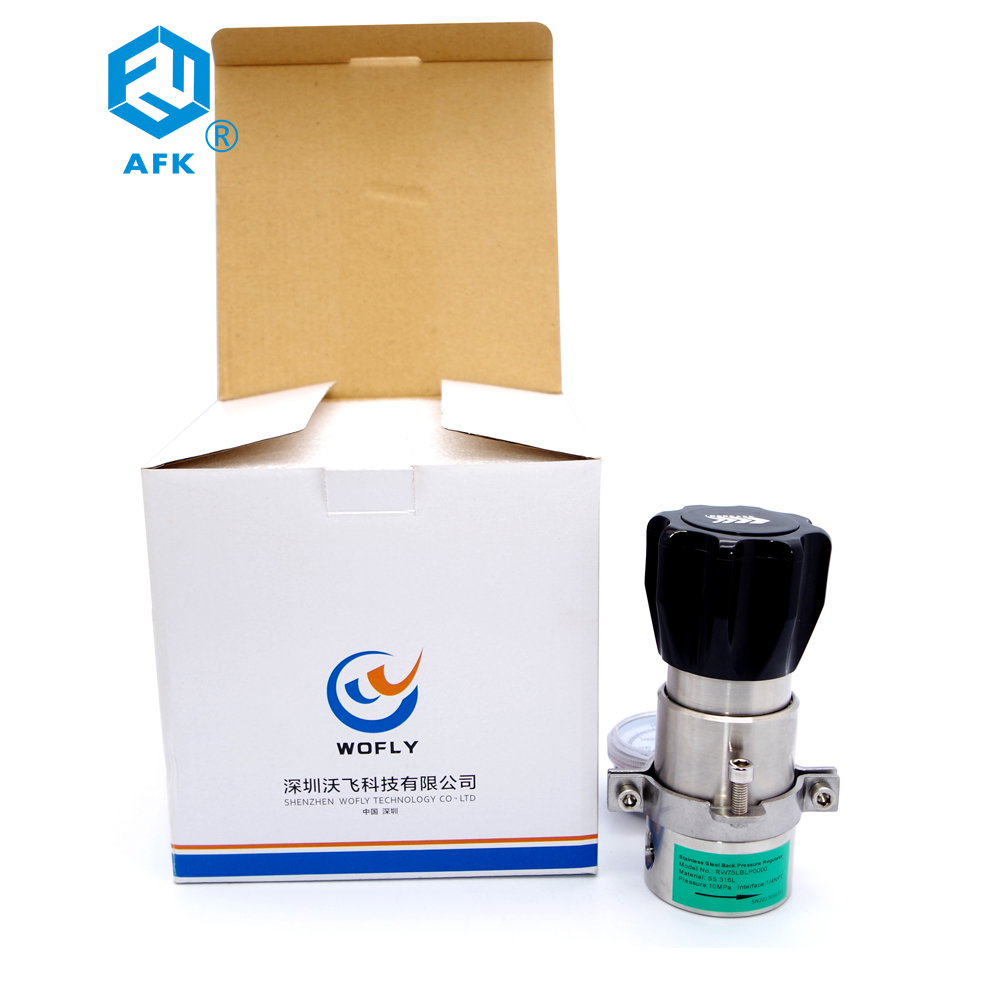

Stainless Steel High Pressure Co2 Back Pressure Regulator 6000psi
Material of Parts
|
Body
|
316L
|
||
|
Seat
|
Vespel
|
||
|
Piston
|
316L
|
||
|
O-ring
|
Viton
|
||
Product Description
RW72 series back pressure regulator is piston-sensed configuration, applicable to high pressure gas or liquid applications.
Technical parameters
|
Maximum Inlet Pressure
|
6000psi
|
||
|
Proof pressure
|
1.5times maximum inlet pressure
|
||
|
Safety test pressure
|
1.5 times maximum inlet pressure
|
||
|
Operating Temperature
|
-40°F to 165°F / -40°c to 74°c
|
||
|
Leakage Rate Against Atmosphere
|
2*10-8atm cc/sec he
|
||
|
Cv value
|
0.15
|
||
Ordering Information
| Series | Body material | Inlet pressure | G | Inlet connection | Outlet connection |
| RW72 | A | D | G | 02 | 02 |
| A | L:0-500psig | W:none | 01:1/4NPT (F) | 01:1/4NPT (F) | |
| B | K:0-800psig | P:PSI/bar | 02:3/8NPT (F) | 02:3/8NPT (F) | |
| I:10-1500psig | G:MPa | 04:1/2NPT (F) | 04:1/2NPT (F) | ||
| H:15-2500psig | 05:1/2NPT(M) | 05:1/2NPT(M) | |||
| G:25-4000psig | 12:3/8LOK | 12:3/8LOK | |||
| Q:50-6000psig | 13:1/2LOK | 13:1/2LOK | |||
| M:200-10000psig | |||||
In solar cell applications specifically include solar cell applications, crystalline silicon solar cell production process and gas applications, thin film solar cell production process and gas applications; in compound semiconductor applications specifically include compound semiconductor applications, MOCVD / LED production process and gas applications; in liquid crystal display applications specifically include TFT / LCD applications, TFT In the application of liquid crystal display, it includes the application of TFT/LCD, the production process of TFT/LCD and gas application; in the application of optical fiber, it includes the application of optical fiber and the production process of fiber preform and gas application.
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A.We have CE certificate.
Q. What materials do you have?
A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A.Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
