Pressure-Reducing Regulators
Pressure-reducing regulators control outlet pressure by
balancing an adjustable spring force against the forces
caused by inlet and outlet pressures. The spring force is
adjusted by turning the stem/handle, which sets the desired
outlet pressure.
As inlet pressure decreases, the force balance changes.
To compensate, outlet pressure will increase. This supplypressure effect (SPE) is a function of the design and type
of regulator. If a regulator is subjected to fluctuating inlet
pressure, and outlet pressure variations are not desirable, a
two-stage regulator is available

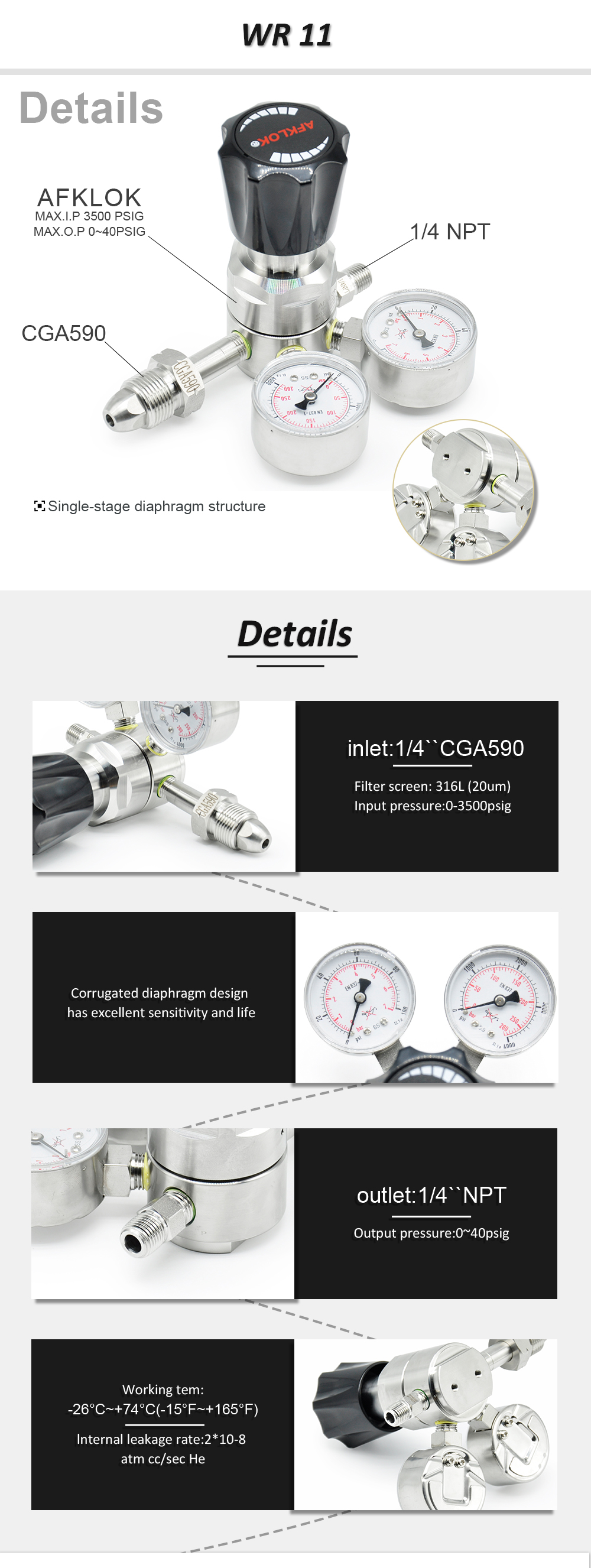

Features
Single-stage diaphragm structure
Corrugated diaphragm design for excellent
sensitivity and cycle life
Suitable for corrosive and toxic gases
20 μm fifilter element installed at inlet
Oxygen environment options are available

Technical Data

Wofly gas products and equipment have been widely used in many well-known semiconductor, integrated circuit, optoelectronics, new energy, microelectronics, biopharmaceuticals, research institutes, new materials and other enterprise manufacturers.

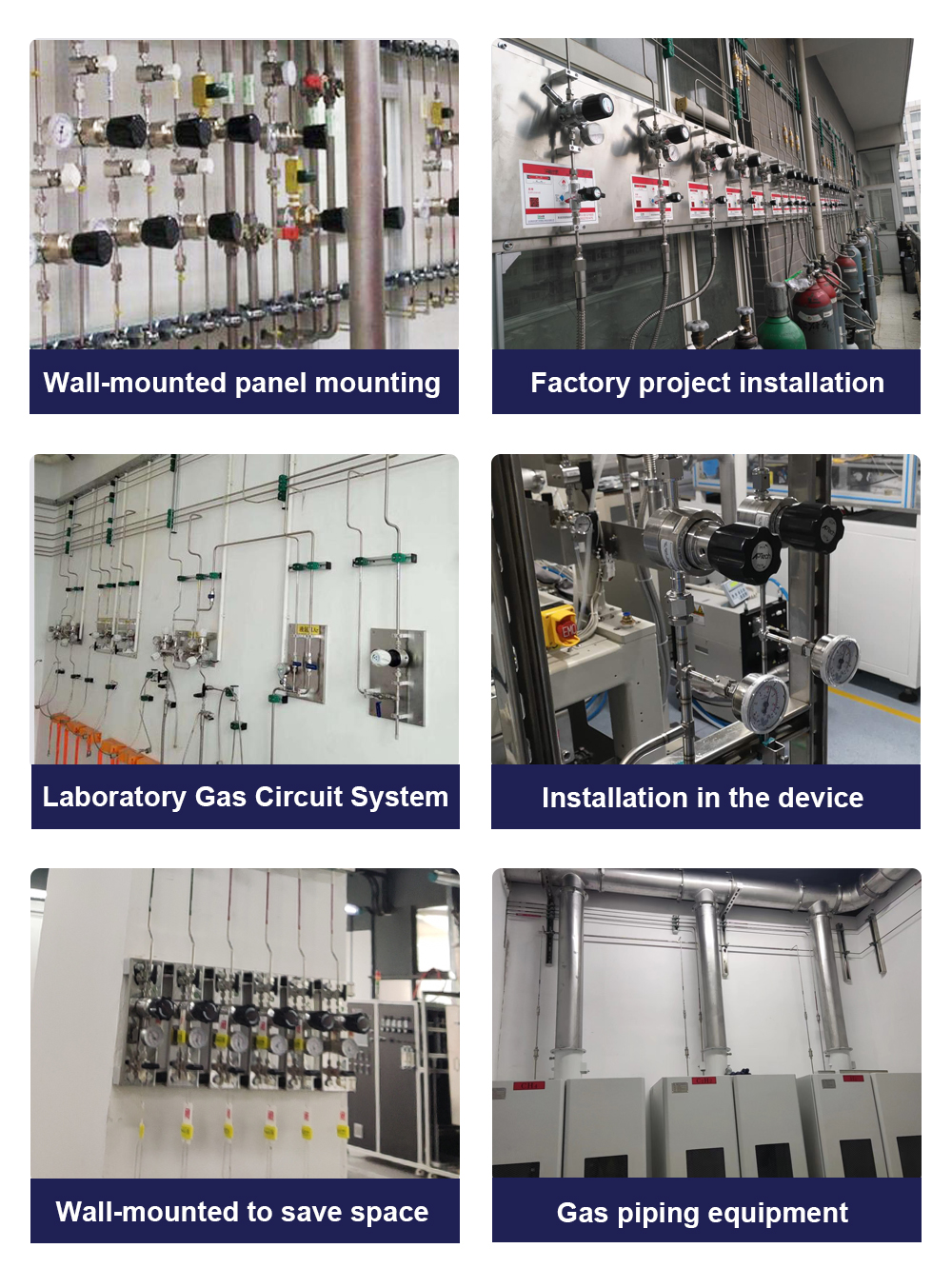

This is our completed project, and the equipment pictured, as well as the accessories for the pressure reducer, etc., are available from our side.
