SS304 316l npt Female Stainless Steel Female Thread 2pc Ball Valve 1/4inch

Short Description:

Model Number:BV

Application:General

Temperature of Media:Normal Temperature

Power:Manual

Media:Base

Port Size:1/4

Structure:BALL

Product name:Female Stainless Steel Female Thread 2pc Ball Valve

Material:304/316 Stainless Steel

Connection:Female Thread

Size:1/4IN

Color:Silver

Working pressure:1000PSI


Product Detail

Parameters

Application

FAQ

Product Tags

Product description of SS304 316l npt Female Stainless Steel Female Thread 2pc Ball Valve 1/4inch

球阀3

  • Previous:
  • Next:

  • Specification of SS304 316l npt Female Stainless Steel Female Thread 2pc Ball Valve 1/4inch

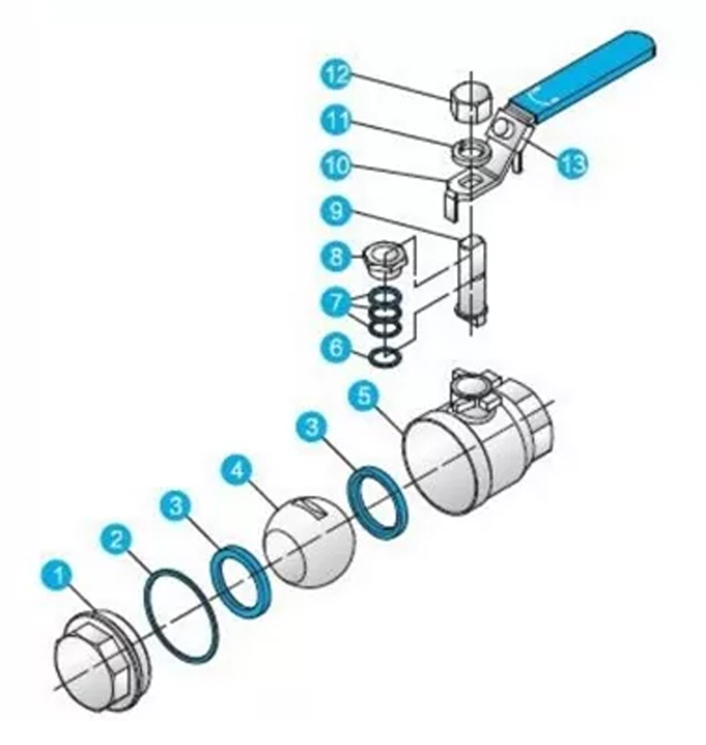

    球阀结构

    Materials of Main Construction

    1

    Cap 阀盖

    CF8M CF8 WC8

    2

    Body Gasket 垫圈

    PTFE

    3

    Seal Seat 阀座

    PTFE R-PTFE

    4

    Ball 球阀

    SS316 SS304

    5

    Body 阀体

    CF8M CF8 WC8

    6

    Thrust Washer 垫圈

    PTFE

    7

    Stem Packing 填料密封

    PTFE

    8

    Gland nut 止动螺母

    SS304

    9

    Stem 阀杆

    SS316 SS304

    10

    Handle 手柄

    SS201

    11

    Spring Washer 弹簧垫圈

    SS304

    12

    Stem Nut 阀杆螺母

     SS304

    13

    Locking Device 锁定装置

    SS201

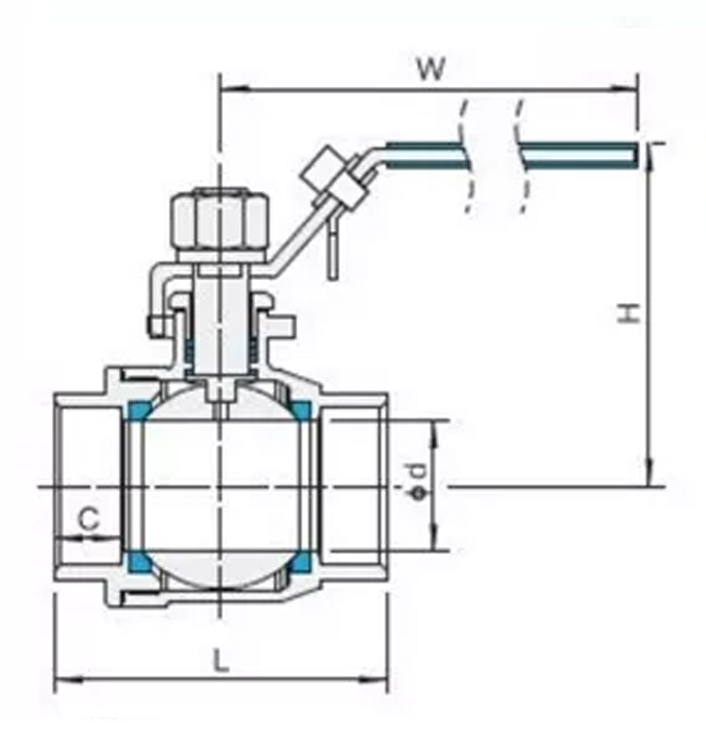

    球阀尺寸  球阀流量图

    Size

    φd

    L

    H

    W

    C

    Torque N.m

    End

    1/4″

    10.5

    58

    58

    100

    11

    4

    BSPP BSPT NPT DIN…

    3/8″

    10.5

    58

    58

    100

    12

    4

    1/2″

    15

    65

    62.5

    120

    13.5

    5

    3/4″

    20

    73

    67

    135

    14.5

    7

    1″

    25

    82

    80.5

    160

    17.5

    9

    1-1/4″

    32

    92

    85.5

    160

    19

    16

    1-1/2″

    38

    109

    102

    180

    21

    23

    2″

    48

    122

    110

    180

    23

    26

    Commonly used in the laboratory industry and in pneumatic systems for semiconductors, the following scenarios are applicable to the projects we work on, and we take corresponding scenarios for each project.

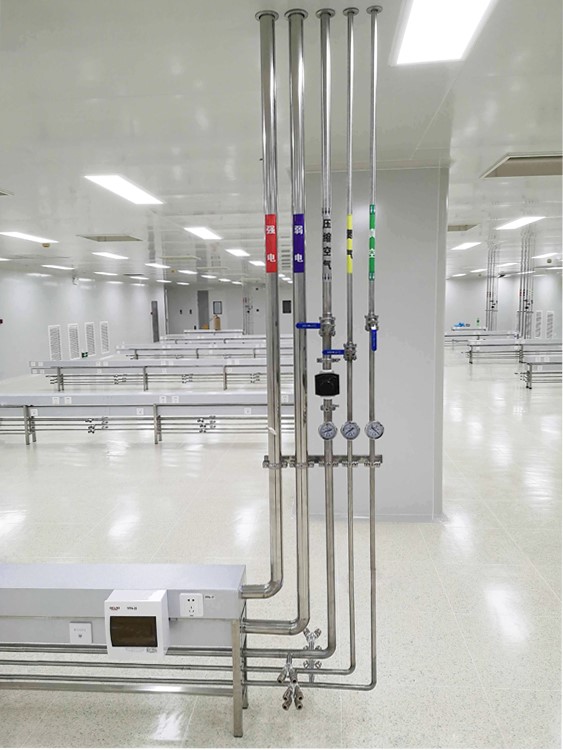

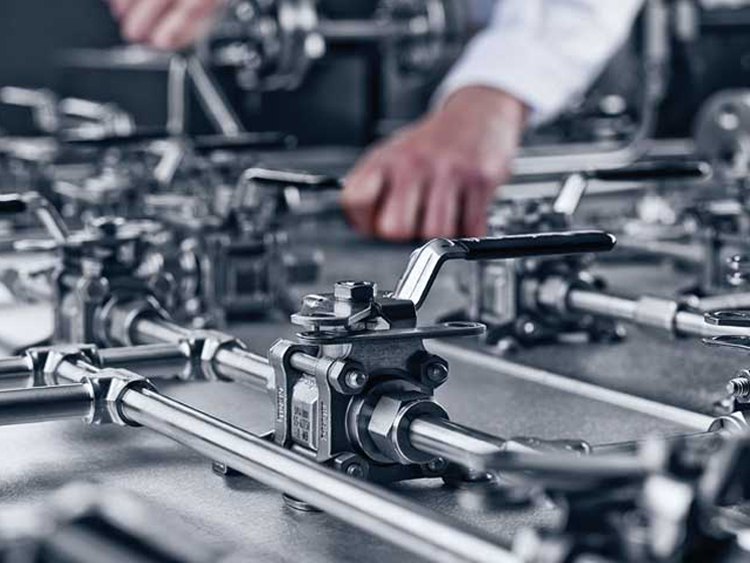

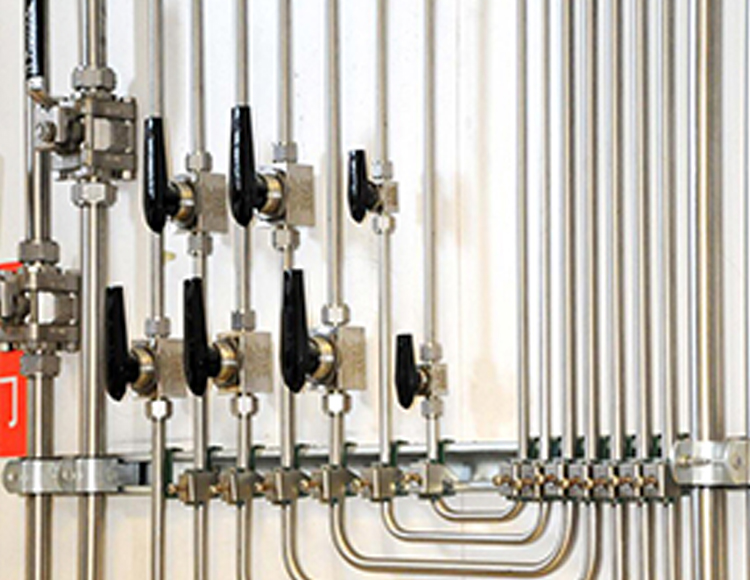

    工程图1 工程图2
    工程图3 工程图4
