High Pressure Industrial Helium Nitrogen Precision Pressure Regulator for Calibrator With CGA Cylinder Connector
Product Description of Stainless Steel Single Stage Gas Pressure Regulator
Function
1. The gas stored in the cylinder is depressurized by the pressure reducer to reach the required working pressure.
2. The high and low pressure gauges of the pressure reducer indicate the high pressure in the bottle and the working pressure after decompression.
3. The pressure of the gas in the pressure stabilizing cylinder decreases gradually with the consumption of the gas, while the working pressure of the gas is required to be relatively stable in gas welding and gas cutting. The stainless steel pressure reducer can ensure the stable output of gas working pressure, so that the working pressure delivered from the low-pressure chamber will not change with the change of high-pressure gas pressure in the cylinder.
Specification of Single Stage Pressure Regulator Gas Regulator with Gauge High Pressure Air Regulator Valve
| Material List of Single Stage Pressure Regulator Gas Regulator with Gauge High Pressure Air Regulator Valve | ||
| 1 | Body | SS316L, brass, nickel plated brass ( Weigh :0.9kg) |
| 2 | Cover | SS316L, brass, nickel plated brass |
| 3 | Diaphragm | SS316L |
| 4 | Strainer | SS316L(10um) |
| 5 | Valve Seat | PCTFE,PTFE,Vespel |
| 6 | Spring | SS316L |
| 7 | Plunger Valve Core | SS316L |

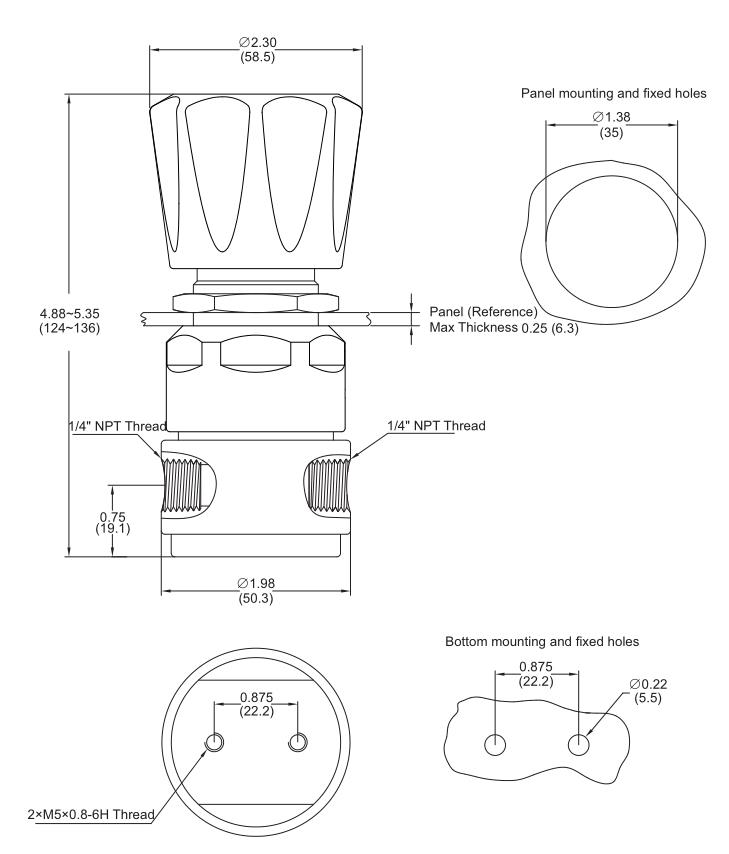

DESIGN FEATURES of Single Stage Pressure Regulator
- Single-stage reduce structure
- Use hard-seal between body and Diaphragm
- Body Thread:1/4″ NPT (F)
- Easy to sweep inside body
- Filter mesh inside
- Panel mountable or wall mounted

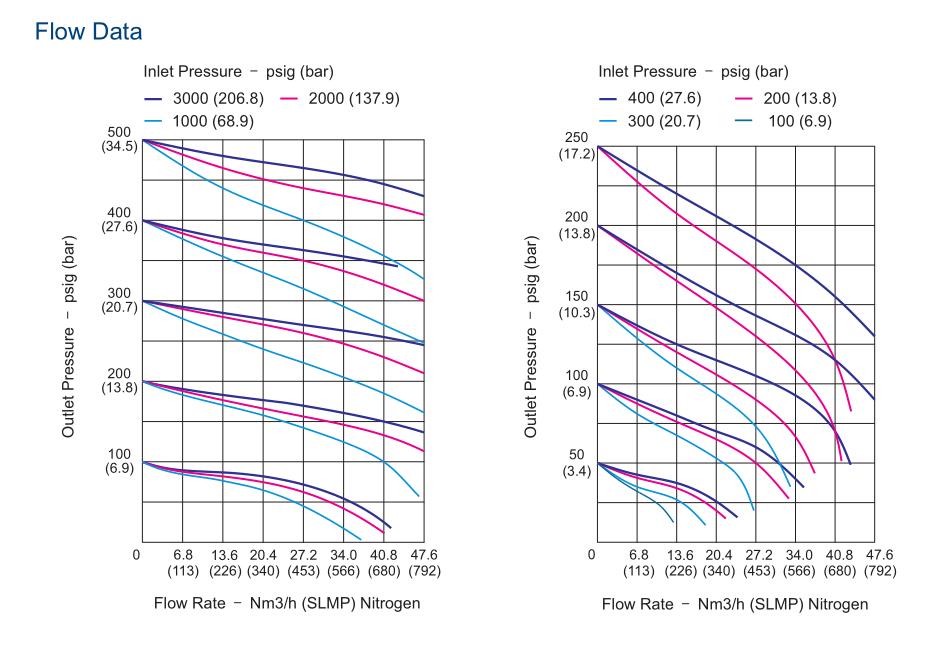

SPECIFICATION of Gas Regulator with Gauge High Pressure Air Regulator Valve
- Max inlet pressure : 500,3000 psig
- Outlet pressure : 0~25, 0~50, 0~100,0~250，0~500 psig
- Proof pressure:1.5 times of maximum rated pressure
- Working tem:-40°F ~+446°F (-40*C~+230°C)
- Leakage rate:2*10-8 atm cc/sec He
- Cv :0.08
TYPICAL APPL ICATIONS of Pressure Regulator
- Laboratory
- Gas Chromatograph
- Gas Laser
- Gas bus
- Oil and chemical industry
- Tested instrumentation
|
R11 |
L |
B |
D |
F |
G |
00 |
00 |
P |
|
Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge |
Inlet size |
Outlet size |
mark |
|
R11 |
L:316 |
A |
D:3000 psi |
F:0-500 psi |
G:MPa gauge |
00:1/4 ” NPT (F) |
00: 1/4 ” NPT(F) |
P:Panel mounting |
|
|
B:Brass |
B |
E:2200 psi |
G:0-250 psi |
|
01:1/4 ” NPT (M) |
01: 1/4 ” NPT(M) |
N:Needle valve |
|
|
|
D |
F:500 psi |
l:0-100 psi |
P:Psig/bar gauge |
23: CGA330 |
10:1/8 ” OD |
N:Needle valve |
|
|
|
G |
|
K:0-50 psi |
|
24: CGA350 |
11:1/4 ” OD |
D:Diaphragm valve |
|
|
|
J |
|
L:0-25 psi |
W:No gauge |
28: CGA660 |
12:3/8 ” OD |
|
|
|
|
M |
|
|
|
28: CGA660 |
15:6mm OD |
|
|
|
|
|
|
|
|
30: CGA590 |
16:8mm OD |
|
|
|
|
|
|
|
|
52: G5/8 “-RH(F) |
|
|
|
|
|
|
|
|
|
63: W21.8-14H(F) |
|
|
|
|
|
|
|
|
|
64: W21.8-14LH(F) |
|
The utility model relates to the technical field of single-stage pressure reducer, specifically a single-stage pressure reducer. Single-stage pressure regulator is suitable for high-purity gases, standard gas mixtures and other high-pressure gas precision pressure regulation, can be installed in the engineering pipeline and instrument panel, widely used in instrumentation, chemical, food, environmental protection and other industries.
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A.We have CE certificate.
Q. What materials do you have?
A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A.Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
