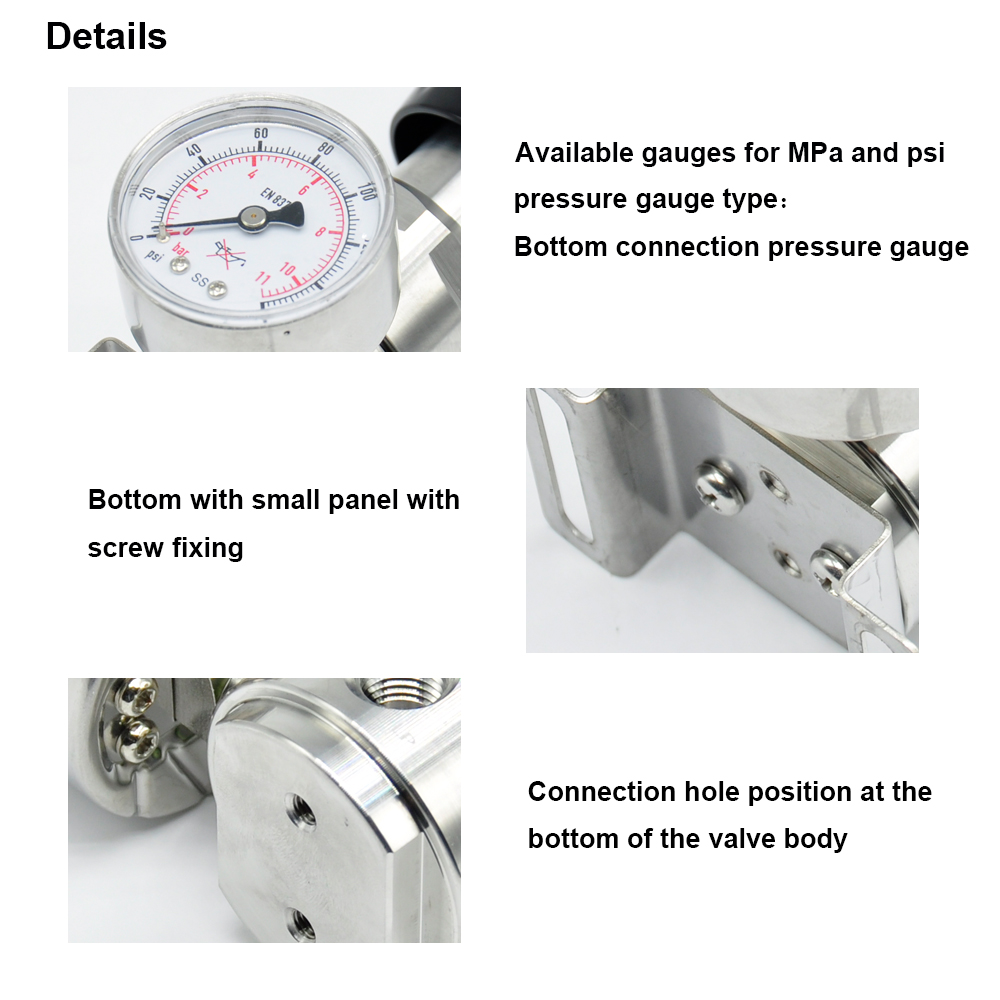

This is a pressure gauge back mounted, according to the needs of customers, so as to change its installation, this product with a small panel, with small screws to facilitate the fixing, if you have installation requirements before the order and customer service to communicate well Oh.
Function
1. The gas stored in the cylinder is depressurized by the pressure reducer to reach the required working pressure.
2. The high and low pressure gauges of the pressure reducer indicate the high pressure in the bottle and the working pressure after decompression.
3. The pressure of the gas in the pressure stabilizing cylinder decreases gradually with the consumption of the gas, while the working pressure of the gas is required to be relatively stable in gas welding and gas cutting. The stainless steel pressure reducer can ensure the stable output of gas working pressure, so that the working pressure delivered from the low-pressure chamber will not change with the change of high-pressure gas pressure in the cylinder.
Specification of Single Stage Pressure Regulator
Material List of adjusting propane regulator | ||
1 |
Body |
SS316L, brass, nickel plated brass ( Weigh :0.9kg) |
2 |
Cover |
SS316L, brass, nickel plated brass |
3 |
Diaphragm |
SS316L |
4 |
Strainer |
SS316L(10um) |
5 |
Valve Seat |
PCTFE,PTFE,Vespel |
6 |
Spring |
SS316L |
7 |
Plunger Valve Core |
SS316L |

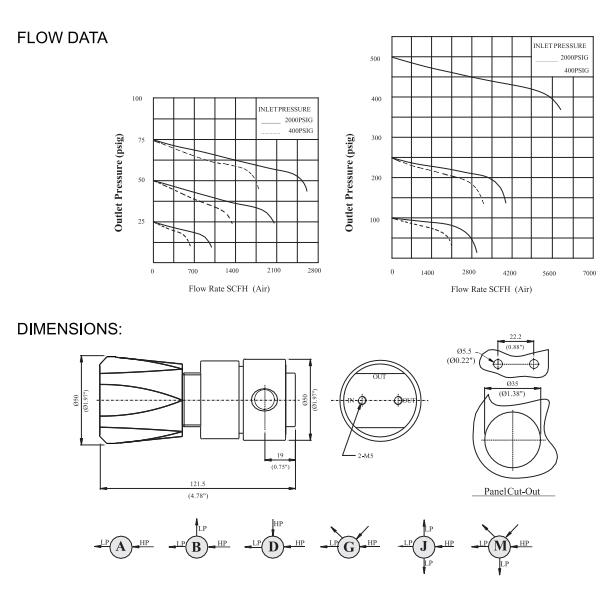

Technical Data of adjusting propane regulator | ||
1 |
Maximun Input Pressure |
500,3000 psig |
2 |
Output Pressure Range |
0~25, 0~50, 0~100, 0~250, 0~500 psig |
3 |
Safety Testing Pressure |
1.5 times of maximum input pressure |
4 |
Working Temperature |
-40°F~ +165°F (-40°C~ +74°C ) |
5 |
Leakage Rate |
2×10-8 atm cc/sec He |
6 |
CV Value |
0.08 |
ORDERING INFORMATION of Single Stage Pressure Regulator |
||||||||
R11 |
L |
B |
D |
F |
G |
00 |
00 |
P |
Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge |
Inlet size |
Outlet size |
mark |
R11 |
L:316 |
A |
D:3000 psi |
F:0-500 psi |
G:MPa gauge |
00:1/4 ” NPT (F) |
00: 1/4 ” NPT(F) |
P:Panel mounting |
|
B:Brass |
B |
E:2200 psi |
G:0-250 psi |
|
01:1/4 ” NPT (M) |
01: 1/4 ” NPT(M) |
N:Needle valve |
|
|
D |
F:500 psi |
l:0-100 psi |
P:Psig/bar gauge |
23: CGA330 |
10:1/8 ” OD |
N:Needle valve |
|
|
G |
|
K:0-50 psi |
|
24: CGA350 |
11:1/4 ” OD |
D:Diaphragm valve |
|
|
J |
|
L:0-25 psi |
W:No gauge |
28: CGA660 |
12:3/8 ” OD |
|
|
|
M |
|
|
|
28: CGA660 |
15:6mm OD |
|
|
|
|
|
|
|
30: CGA590 |
16:8mm OD |
|
|
|
|
|
|
|
52: G5/8 “-RH(F) |
|
|
|
|
|
|
|
|
63: W21.8-14H(F) |
|
|
|
|
|
|
|
|
64: W21.8-14LH(F) |
|
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A.We have CE certificate.
Q. What materials do you have?
A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A.Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Scope of application
Laboratory·Gas Chromatograph·Gas lasers·Gas sinks·Petrochemical industry·Testing equipment
