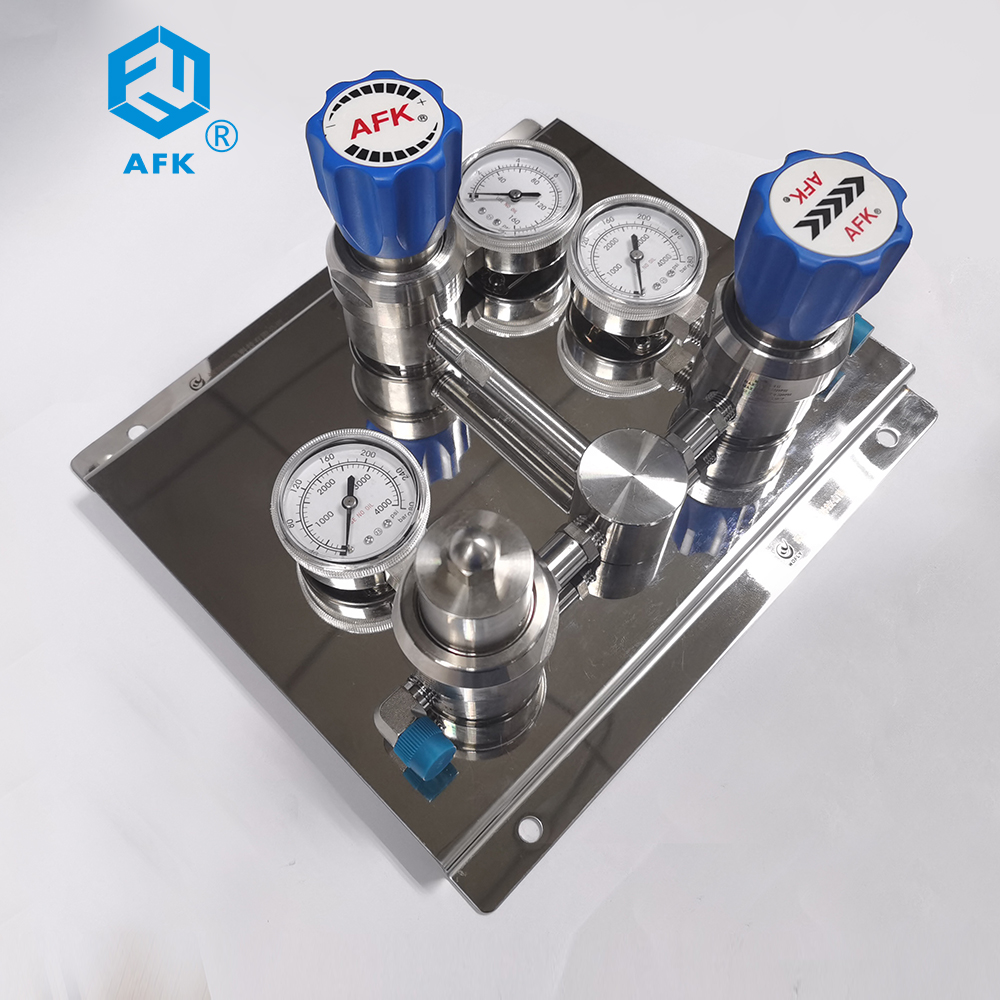

R5200 Stainless Steel Semi-Automatic Switching System Is Suitable for Nitrogen Oxygen Hydrogen Methane Acetylene Argon Helium Air

Short Description:

Semi automatic switching system

It is used for decompression gas supply of bilateral high-pressure gas cylinders, and continuous gas supply is realized through automatic switching. The maximum input pressure can reach 20.7mpa (3000psi), anti-corrosion, clean workshop assembly test, suitable for high-purity gases such as laboratory and gas analysis.


Product Detail

Video

Parameters

Ordering Information

Application

FAQ

Product Tags

R5200 Aemi-Automatic Switching System

It is used for decompression gas supply of bilateral high-pressure gas cylinders, and continuous gas supply is realized through automatic switching. The maximum input pressure can reach 20.7mpa (3000psi), anti-corrosion, clean workshop assembly test, suitable for high-purity gases such as laboratory and gas analysis.

1
  • Previous:
  • Next:

    • Structural features of R5200 Stainless Steel Semi-Automatic Switching System
    (1) . Teqi series safety pressure reducer
    (2) . the pressure reducer and pipeline are subject to pressure test and leakage test
    (3) 2 “stainless steel pressure gauge with clear reading

    technical parameter of R5200 Stainless Steel Semi-Automatic Switching System
    Maximum inlet pressure: 3000，2200psi
    Maximum outlet pressure: 25, 50100150250psi
    Operating temperature: – 40 ℃ ~ 230 ℃
    Flow: see flow curve
    Leakage rate of pressure reducer: 2×10-8atm.cc/sec he
    Cv：0.14

    Structural materials of R5200 Stainless Steel Semi-Automatic Switching System
    (1) Reducer body: stainless steel
    (2) Pressure reducer valve seat: Pu, PTFE, PCTFE
    (3) Panel air inlet connection: 1 / 4 “AFK ®, 1/4″ FSR,1/2″ FSR
    (4) Panel outlet connection: 1 / 4 “AFK ®， 1/4″ FSR
    (5) Diaphragm valve body: stainless steel

    Selection table of R5200 Stainless Steel Semi-Automatic Switching System

    R5200 1 1 1 S H 1 1 -N2
    Series Function Options Outlet Type Inlet Interface Type Boay Inlet Pressure Outlet Pressure Gauge Gas Options
    R5200 1. Equipped with emptying and purging function 1.1/4″NPT(F) 1.1/4″Welding S:stainless steel H:3000psi 1:25psi 1:MPa Blank: no gas identification
      2. No emptying and purging function 2.1/4″swagelok 2.1/4″NPT(M) C:Copper nickel plating M:2200psi 2:50psi 2:Bar/psi N2
      3. Drain purge + pressure sensor 3.3/8″NPT(F) 3.3/8″Welding   L:1000psi 3:100psi 3:psi/Kpa O2
      4. Built in pressure sensor 4.3/8″swagelok 4.3/8″NPT(M)     4:150psi   H2
        5.1/2″NPT(F) 5.1/2″Welding     5:250psi   C2H2
        6.1/2″swagelok 6.1/2″NPT(M)         CH4
          7.1/4″swagelok         AR
          8.3/8″swagelok         HE
          9.1/2″swagelok         AIR

    工程4

    1. who are we?
    We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve

    4. why should you buy from us not from other suppliers?
    We have a couple of years with professional engineers and dedicated technicians.can provide security products for you

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CIF,EXW；
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,Western Union;
    Language Spoken:English,Chinese
