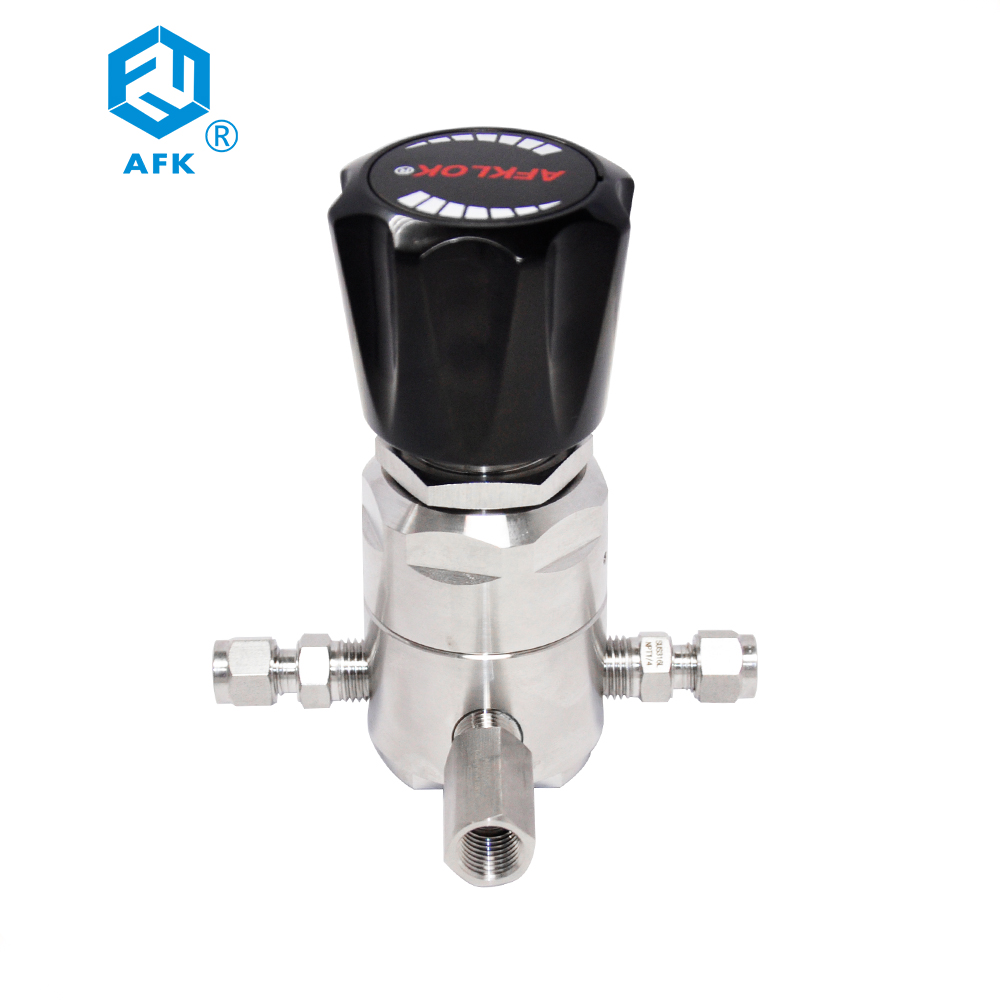

R41 Valve Body Without Gauge High Pressure Stainless Steel 3000psi nitrogen Gas Pressure Regulator

Short Description:

Inlet pressure:3000psi

Out pressure:0-500psi

Inlet connection:6mm OD

Outlet connection:6mmOD

Body ports:threee

will equip a satety valve at outlet

Send email to us

Product Detail

Video

Parameters

Ordering Information

Application

FAQ

Product Tags

R41 Pressure Regulator

Previous: New R41 Valve Body High Pressure 6000PSI Nitrogen And Oxygen Pressure Regulator

Next: Nitrogen / Oxygen / Argon Stainless Steel 316 Semi-Automatic Changeover Gas Conrol Panel

Product Parameter OF R41 Valve Body Without Gauge High Pressure Stainless Steel 3000psi nitrogen Gas Pressure Regulator

Features of R41 Stainless Steel Pressure Regulator

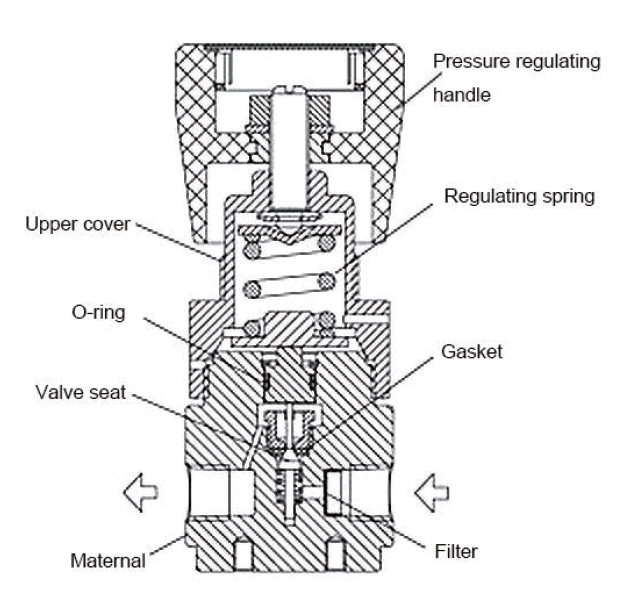

1	Single stage piston sensing structure
2	It has a larger outlet pressure regulation range
3	It can be used for standard gas and non corrosive gas
4	A 20 micron filter element is installed in the warehouse
5	Oxygen environment application options are available

Techn1ical Data Pressure Regulator
1	Maximum inlet pressure	4500 psig or 6000psig
2	Outlet pressure range	0 ~ 1500,0 ~ 3000
3	Internal element material	Valve seat	PCTFE
		Piston	316L
		O-ring	FKM
		Filter element	316L
4	Operating temperature	- 26 ℃ ~ + 74 ℃ (- 15 ℉ ~ + 165 ℉)
5	Leakage rate (helium)	Inside	no visible bubbles
5	Leakage rate (helium)	Outside	no visible bubbles
6	Flow coefficient (CV)	0.09
7	Parent port	Inlet	1 / 4NPT
		Outlet	1 / 4NPT
		Pressure gauge port	1 / 4NPT

Product selection of Technical Parameter of nitrogen Gas Pressure Regulator

R41	L	B	B	D	G	00	00	P
Item	Body Materia	Body Hole	Inlet Pressure	Outlet Pressure	Pressure Gauge	Inlet Size	Outlet Size	Options
R41	L:316	A	B:6000psig	D:0~3000psig	G:MPa gauge	00:1/4″NPT(F)	00:1/4″NPT(F)	P:Panel mounting
	B:Brass	B	D:3000psig	E:0~1500psig	P:Psig/bar gauge	00:1/4″NPT(M)	00:1/4″NPT(M)
		D		F:0~500psig	W:No gauge	10:1/8″OD	10:1/8″OD
		G		G:0~250psig		11:1/4″OD	11:1/4″OD
		J				12:3/8″OD	12:3/8″OD
		M				15:6mm”OD	15:6mm”OD
						16:8mm”OD	16:8mm”OD
						Other type is available	Other type is available
