AFK High Pressure Two Stage Nitrogen Argon co2 Carbon Dioxide Gas Pressure Regulator Stainless Steel 25Mpa OEM CV 0.06

Short Description:

R31 series stainless steel pressure reducer, double stage diaphragm pressure reducing structure, stable output pressure, used in high purity gas, standard gas, corrosive gas, etc.

Send email to us

Product Detail

Video

Parameters

Ordering Information

Project Case

FRQ

Product Tags

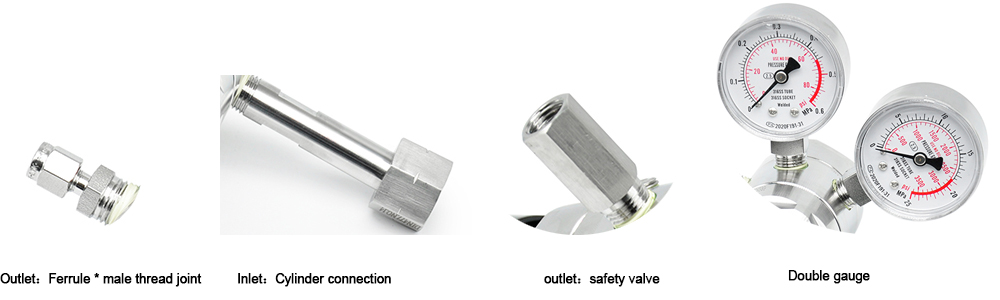

Features High Pressure Regulator Valve 25Mpa

1. Five hole designof the body

2. Double-stage pressure-reducing structure

3. Metal-to-meta diaphragm seal

4. Body thread: input and output connection 1 / 4NPT (F)

5. Easy to clean internal structure

6. Filter element installed internally

7. Panel mounting and wall mounting available

8.Optional outlet：needle valve，diaphragm valve

It is made of fine 316 material and is forged. It is suitable for special gases. The pressure of joints reaches 3000 psi. The configuration of pressure gauges is selected according to the pressure you need. Before purchase, we will communicate with customer service personnel to give the parameters to customer service personnel, who will assist you in selecting a satisfactory configuration.

Previous: AFK Stainless Steel High Pressure Cylinder Argon co2 Carbon Dioxide Gas Pressure Regulator Valve 25Mpa

Next: Lzb -4wbF High Accuracy Anti-Corrosion Glass Rotameter

Technical Data of High Pressure Regulator Valve 25Mpa

MATERIAL
1	Body	316L,Brass
2	Bonnet	316L,Brass
3	Diaphragm	316L
4	Strainer	316L(10um)
5	Seat	PCTFE,PTFE,Veapel
6	Spring	316L
7	Stem	316L

Technical Data of high pressure regulator valve 25mpa

1. Maximum inlet pressure: 3000psi or 4500psi

2. Outlet pressure range: 0-30,0-60,0-100,0-150,0-250

3. Material of internal components:

Valve seat: PCTFE

Diaphragm: Hastelloy

Filter element: 316L

4. Working temperature: – 40 ℃ ~ + 74 ℃ (- 40 ℉ ~ + 165 ℉)

5. Leakage rate (helium):

Internal: ≤ 1×10-7 mbar L / S

External: ≤ 1×10-9 mbar L / S

6. Flow coefficient (CV): 0.05

7. Parent port:

Inlet: 1 / 4NPT

Outlet: 1 / 4NPT

Pressure gauge port: 1 / 4NPT

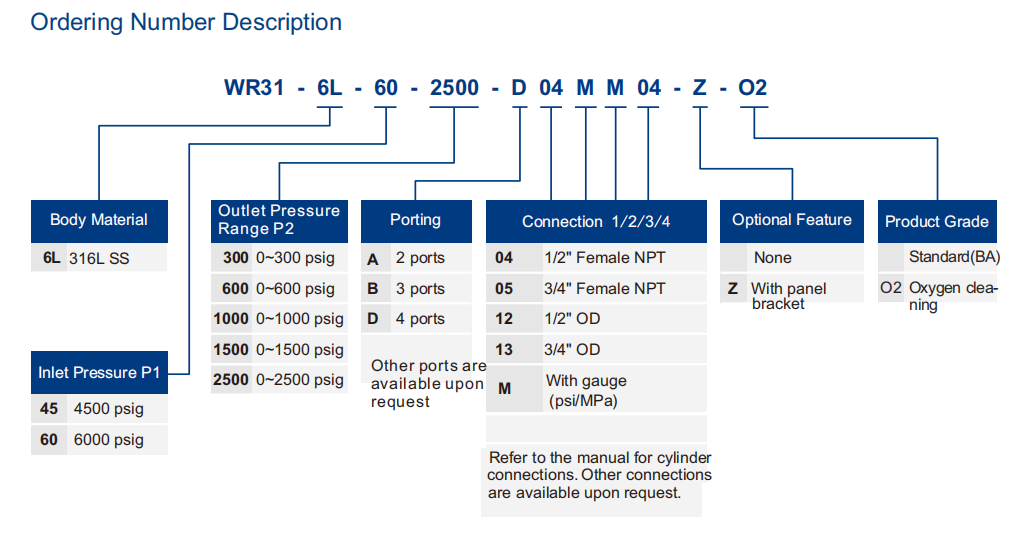

Model selection table, a general parameter is in this table, and you need to consult with customer service about the parameters you need

TFT-LCD

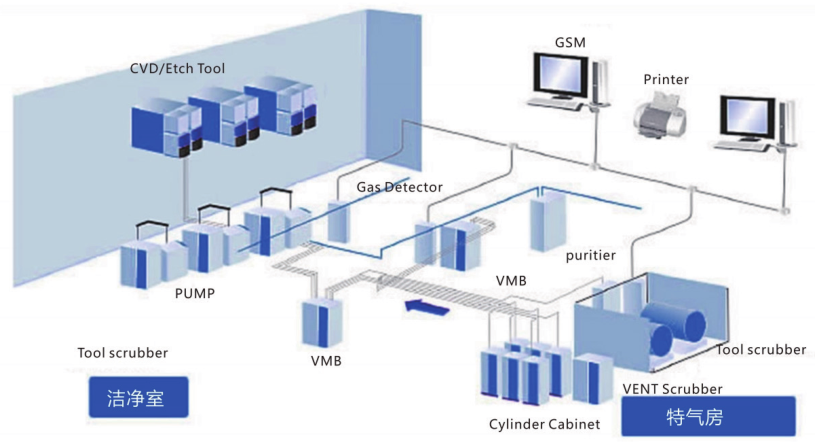

The process special gases used in the CVD deposition process of TFT-LCD manufacturing process are silane (S1H4), ammonia (NH3), phosphine (PH3), nitrous oxide (N2O), NF3, etc. In addition, high purity hydrogen and high purity nitrogen and other bulk gases are also involved in the process. Argon is used in the sputtering process, and the sputtered film forming gas is the main material for sputtering. First, it is required that the film-forming gas cannot react with the target, and the most appropriate gas is inert gas. A large amount of special gas will also be used in the etching process, while the electronic special gas is mostly flammable, explosive and highly toxic, so the requirements for gas circuit and technology are very high. Wofei Technology specializes in the design and installation of ultra-high purity special gas transmission system.

Q. Are you manufacturer?

A. Yes, we are manufacturer.

Q.What is lead time?

A.3-5days. 7-10 days for 100pcs

Q. How do I order?

A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours

Q. Do you have any certificates?

A. We have CE certificate.

Q. What materials do you have?

A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.

Q. What is maximum inlet pressure?

A.3000psi (about 206bar)

Q. How do I confirm inlet connnection for cylidner?

A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also available e.g CGA540, CGA870 etc.

Q. How many types for connecting cylinder?

A. Down way and side way. (you can choose it)

Q. What is product warranty?

A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
