R12 1/2″NPT F Stainless Steel One Stage Pressure Regulator High Pressure 3500psi Double Gauge Nitrogen Gas Propane Regulating Valve

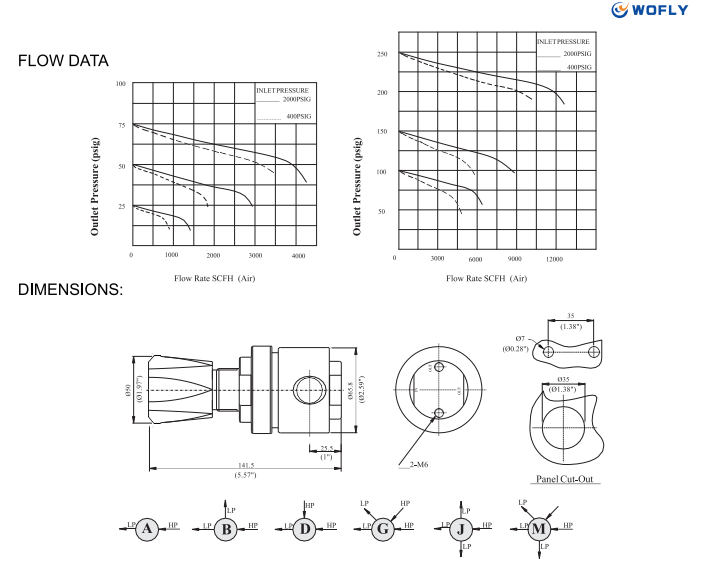

R12 basic parameters
R12 Series stainless steel pressure reducers , single-stage diaphragm construction , stainless steel diaphragm pressure transmission , stable output pressure , applied to medium flow gas system.
| Speciffcation | ||
| 1 | maximum inlet pressure | 500 , 3000psi |
| 2 | output pressure | 0~25 , 0~50 , 0~100 , 0~125 , 0~250psig |
| 3 | safety testing pressure | 1.5times of maximum inlet pressure |
| 4 | working tem | -40℉~+446℉(-40℃~+230℃) |
| 5 | internal leakage rate | 2*10-8 atm cc/sec He |
| 6 | Cv | 1.1 |
| Material | ||
| 1 | bady | 316L , brass |
| 2 | bonnet | 316L , brass |
| 3 | diaphragm | 316L |
| 4 | strainer | 316L (10um) |
| 5 | seat | PCTFE , PTFE , Vespel |
| 6 | spring | 316L |
| 7 | valve stem | 316L |

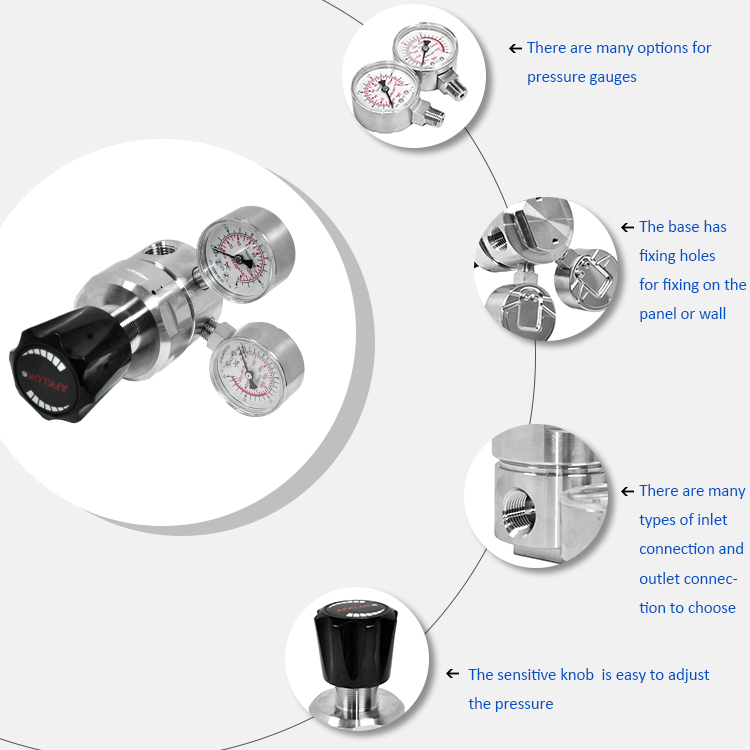

| Design Features
single-stage pressure-reducing structure metal-to-metal diaphragm seal body thread:1/2 ” NPT(F) pressure gauge , safety valce interdace 1/4″ NPT(F) filter element installed internally panel mounting and wall mounting available |
Typical Applicationslaboratorygas purge system
corrosive gas , special gas gas bus-bar testing equipment |
Ordering information
| R12 | L | B | D | F | G | 02 | 00 | P |
| Item | BodyMateria | BodyHole | Inlet pressure | Outletpressure | Pressure gauge | Inlet size | Outlet size | mark |
| R12 | L:316 | A | D:3000psi | G:0~250psig | G:MPa gauge | 02:3/8”NPT(F) | 02:3/8”NPT(F) | P:Panel mointing |
| B:Brass | B | F:500psi | H::0~125psig | 03:3/8”NPT(M) | 03:3/8”NPT(M) | R:With relief valve | ||
| D | I::0~100psig | P:Psig/bar gauge | 04:1/2”NPT(F) | 04:1/2”NPT(F) | ||||
| G | K::0~50psig | 05:1/2”NPT(M) | 05:1/2”NPT(M) | |||||
| J | L::0~25psig | W:No gauge | 12:3/8”OD | 12:3/8”OD | ||||
| M | 13:1/2”OD | 13:1/2”OD | ||||||
| Other type is available | Other type is available |

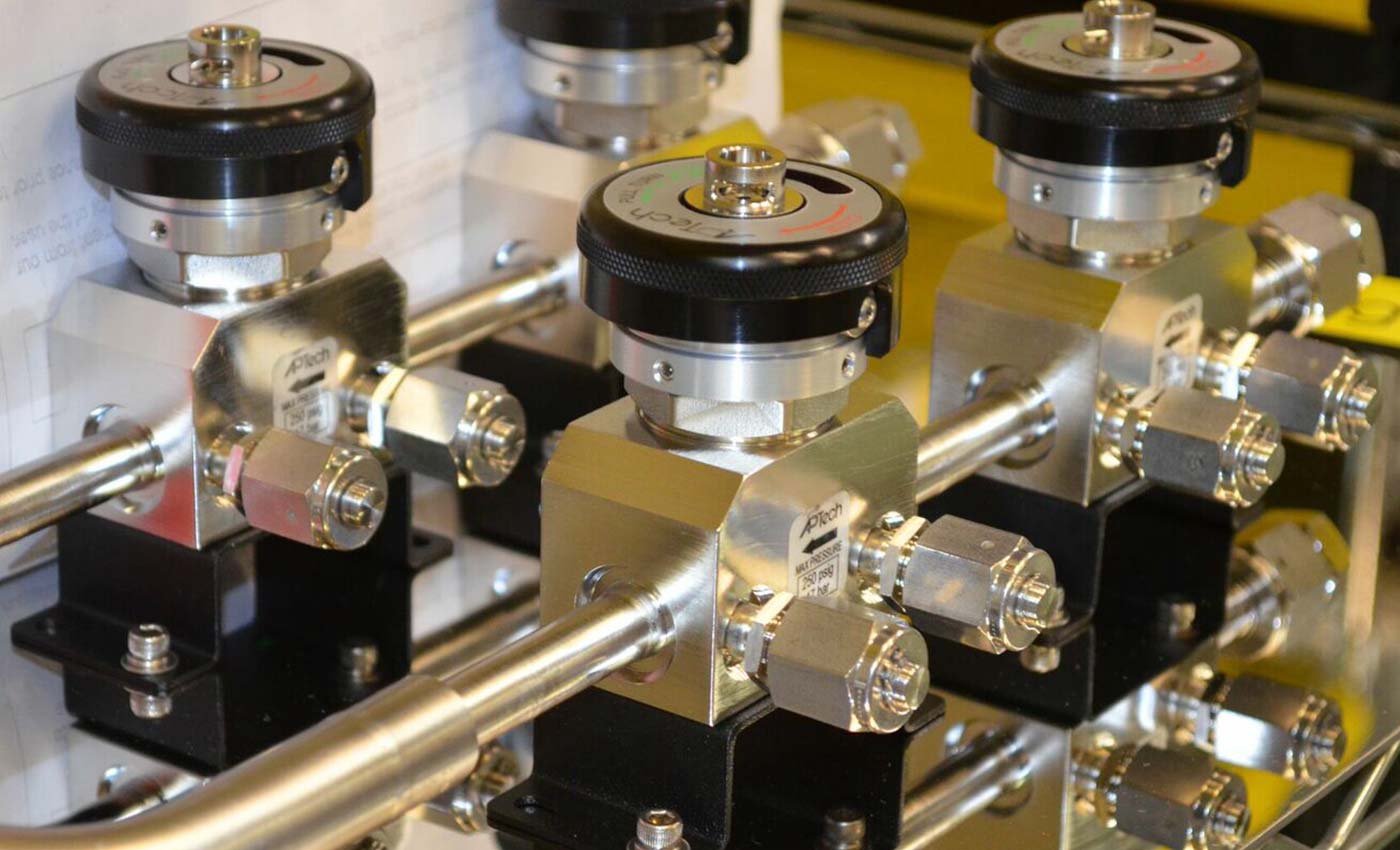

Usage scenario of pressure reducer
 |
 |

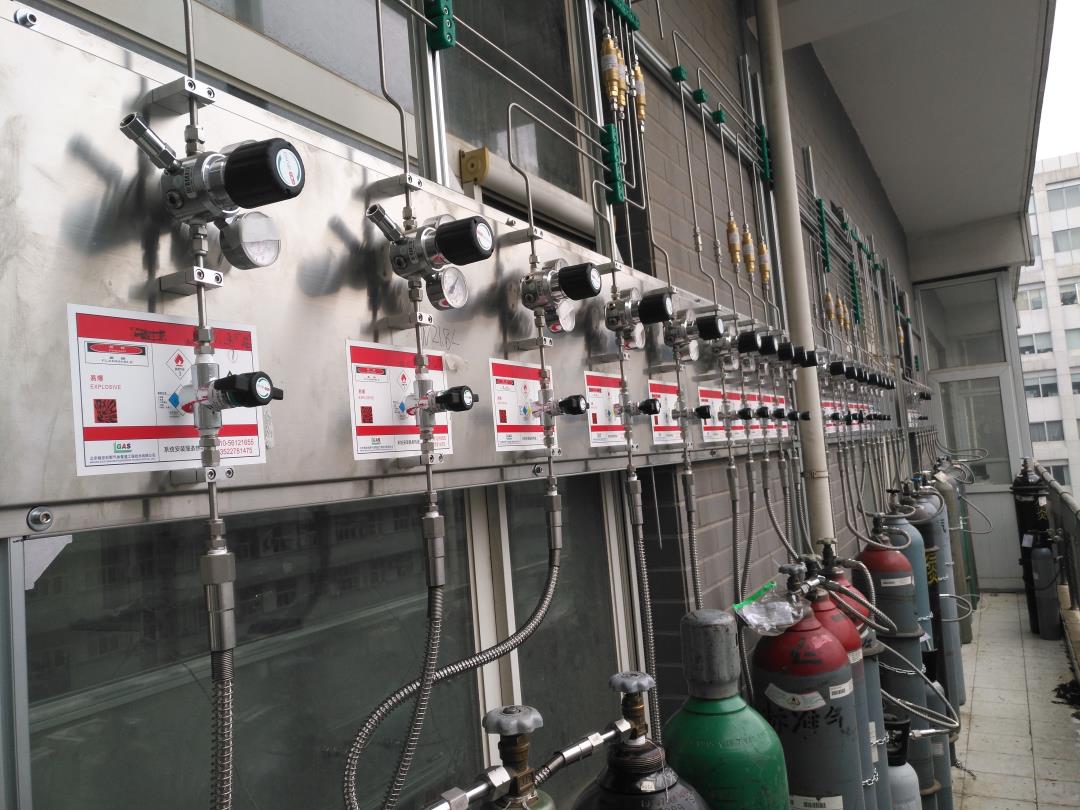

| Laboratory gas supply | Gas purging system |
 |
 |

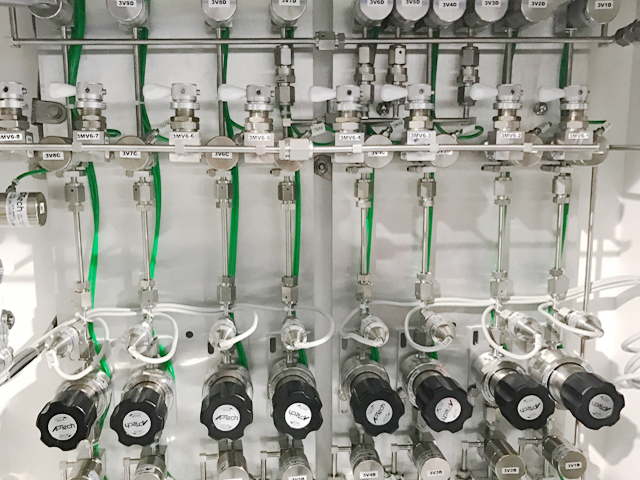

| Industrial gas supply | Test equipment |
