High Purity 1500psi Nitrogen Stainless steel CO2 Pressure Regulator Industrial

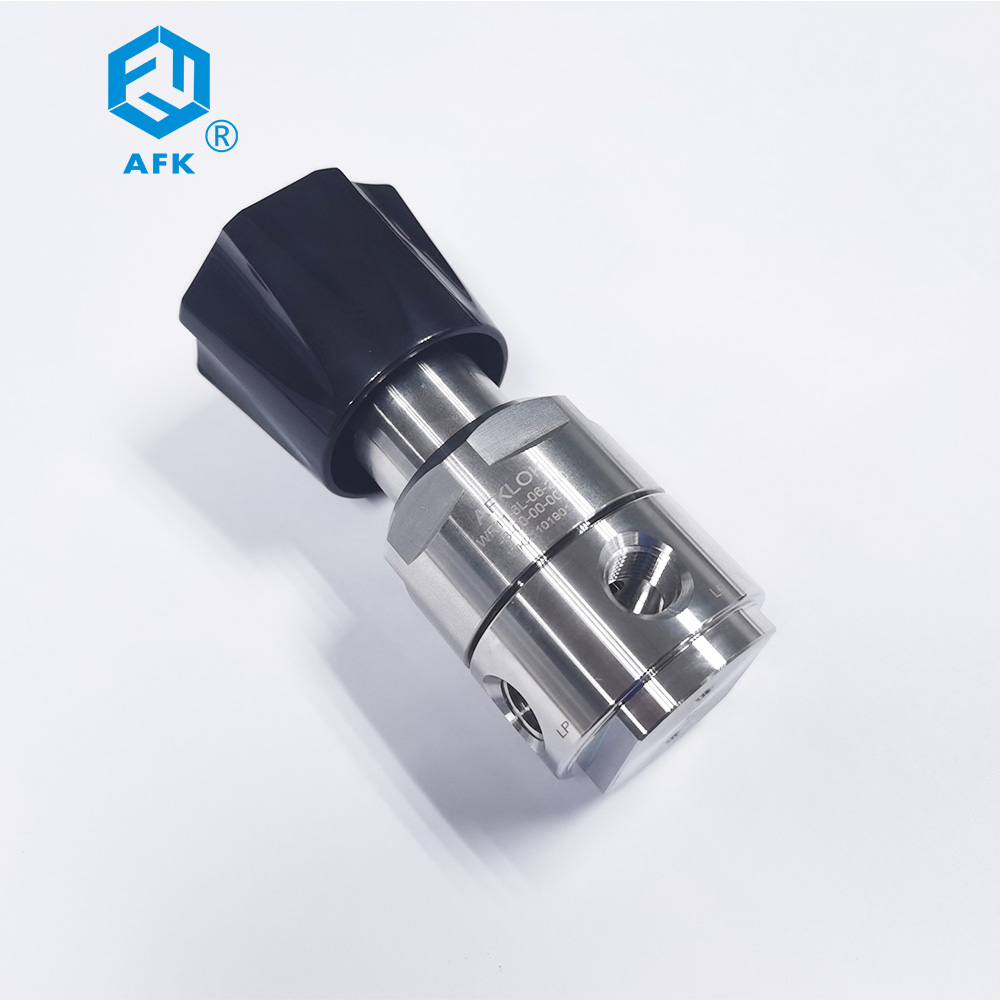

R11 stainless steel valve body

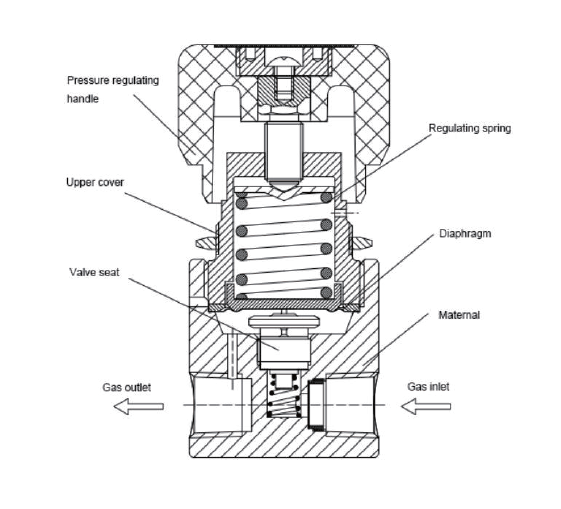

R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc.
Technical Data of Stainless Steel N2O Regulador
| 1 | Max inlet pressure | 500, 3000 psi |
| 2 | Outlet pressure | 0~25, 0~50, 0~100, 0~250, 0~500 psi |
| 3 | Proof pressure | 1.5 times of maximum rated pressure |
| 4 | Working temperature | -40°F-+165°F(-40°C-+74°C) |
| 5 | Leakage rate | 2*10-8 atm cc/sec He |
| 6 | Cv | 0.08 |
Main Features of Stainless Steel N2O Regulador
| 1 | Single -stage reduce Structure |
| 2 | Use hard-seal between body and diaphragm |
| 3 | Body Thread : 1/4″ NPT ( F ) |
| 4 | Easy to sweep inside body |
| 5 | Filter mesh inside |
| 6 | Panel mountable or wall mounted |
Typical applications of Stainless Steel N2O Regulador
| 1 | Laboratory |
| 2 | Gas Chromatograph |
| 3 | Gas Laser |
| 4 | Gas bus |
| 5 | Oil and chemical industry |
| 6 | Tested instrumentation |

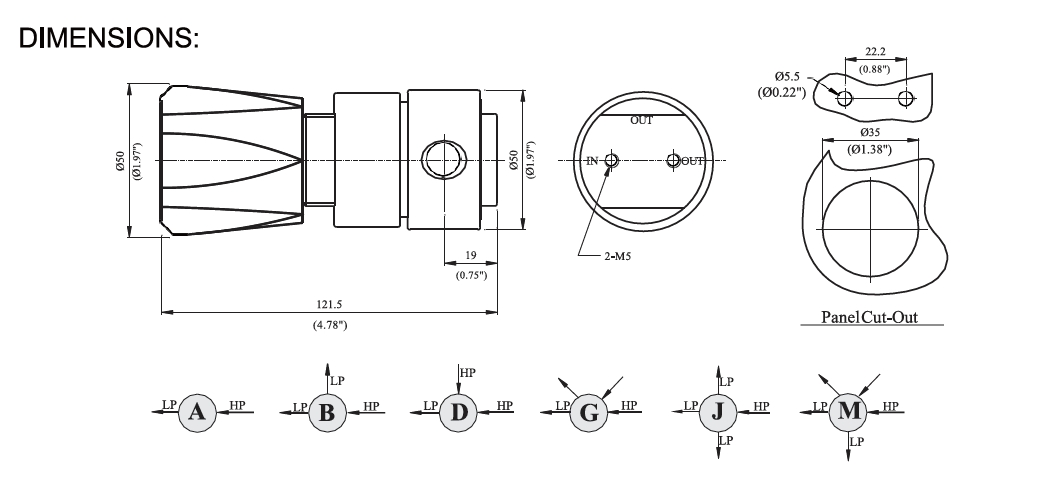

| R11 | L | B | B | D | G | 00 | 02 | P |
| Item | Body Material | Body Hole | Inlet Pressure | Outlet Pressure |
Pressure Guage | Inlet size |
Outlet size |
Mark |
| R11 | L:316 | A | D:3000 psi | F:0-500psig | G:Mpa guage | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250psig | P:Psig/Bar Guage | 01:1/4″NPT(M) | 01:1/4″NPT(M) | R:With relief valve | |
| D | F:500 psi | K:0-50pisg | W:No guage | 23:CGGA330 | 10:1/8″ OD | N:Needle calve | ||
| G | L:0-25psig | 24:CGGA350 | 11:1/4″ OD | D:Diaphregm valve | ||||
| J | 27:CGGA580 | 12:3/8″ OD | ||||||
| M | 28:CGGA660 | 15:6mm OD | ||||||
| 30:CGGA590 | 16:8mm OD | |||||||
| 52:G5/8″-RH(F) | ||||||||
| 63:W21.8-14H(F) | ||||||||
|
64:W21.8-14LH(F)
|
Overview of semiconductor lasers
Laser is the use of excited radiation to generate visible or invisible light devices, laser structure is complex, high technical barriers, is a large number of optical materials and components of the integrated system, located in the core of the laser industry chain pivotal position, mainly by the optical system, power supply system, control system and mechanical mechanism composed of four parts, of which the optical system mainly consists of pump source (excitation source), gain medium (work The optical system is mainly composed of pump source (excitation source), gain medium (working substance) and resonant cavity and other optical device materials. As the core optical system of the terminal equipment, the performance of the laser can directly determine the quality and power of the output beam of the laser equipment, is the most core components of the downstream laser equipment.
Lasers are classified in various ways, and according to the different gain media, lasers can be divided into gas lasers, liquid lasers, solid-state lasers (including solid, semiconductor, fiber, hybrid), etc.
