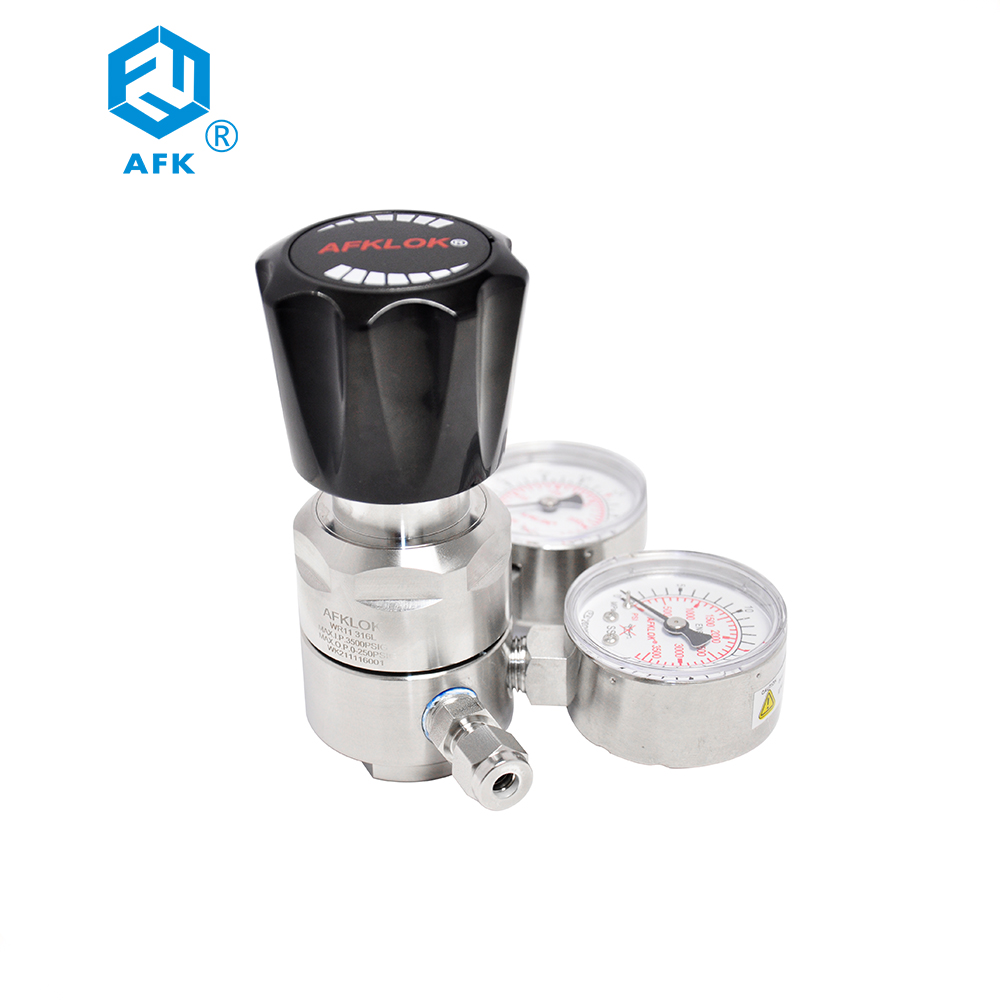

High Pressure Gas R11 Stainless Steel 3500psi helium gas regulator

Short Description:

R11 Series stainless steel pressure regulator is single-stage diaphragm，vacuum structure stainless diaphragm output.It has piston pressure，reducing structure，constant outlet pressure，mainly used for high input pressure，suitable for purified gas，standard gas，corrosive gas etc.

Send email to us

Product Detail

Video

Parameters

Ordering Information

Application

FAQ

Product Tags

R11 Pressure Regulator Valve

R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc

Technical Data of Helium Gas Regulator

1	Max inlet pressure	500, 3000 psi
2	Outlet pressure	0~25, 0~50, 0~100, 0~250, 0~500 psi
3	Proof pressure	1.5 times of maximum rated pressure
4	Working temperature	-40°F-+165°F(-40°C-+74°C)
5	Leakage rate	2*10-8 atm cc/sec He
6	Cv	0.08

Previous: AFK High Pressure 6000PSI Stainless Steel 316 Small Square Body Slotted Handle Ferrule Needle Valve

Next: AFK Stainless Steel Conventional High Pressure Internal Thread Tee Ferrule Ball Valve 6mm / 8mm

Main Features of Gas Regulator

1	Single -stage reduce Structure.
2	Use hard-seal between body and diaphragm
3	Body Thread : 1/4″ NPT ( F )
4	Easy to sweep inside body
5	Filter mesh inside
6	Panel mountable or wall mounted

Typical applications of Gas Regulator

1	Laboratory
2	Gas Chromatograph
3	Gas Laser
4	Gas bus
5	Oil and chemical industry
6	Tested instrumentation

Ordering Information of Gas Regulator

R11	L	B	B	D	G	00	02	P
Item	Body Material	Body Hole	Inlet Pressure	Outlet Pressure	Pressure Guage	Inlet size	Outlet size	Mark
R11	L:316	A	D:3000 psi	F:0-500psig	G:Mpa guage	00:1/4″NPT(F)	00:1/4″NPT(F)	P:Panel mounting
	B:Brass	B	E:2200 psi	G:0-250psig	P:Psig/Bar Guage	01:1/4″NPT(M)	01:1/4″NPT(M)	R:With relief valve
		D	F:500 psi	K:0-50pisg	W:No guage	23:CGGA330	10:1/8″ OD	N:Needle calve
		G		L:0-25psig		24:CGGA350	11:1/4″ OD	D:Diaphregm valve
		J				27:CGGA580	12:3/8″ OD
		M				28:CGGA660	15:6mm OD
						30:CGGA590	16:8mm OD
						52:G5/8″-RH(F)
						63:W21.8-14H(F)
						64:W21.8-14LH(F)

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve

4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
