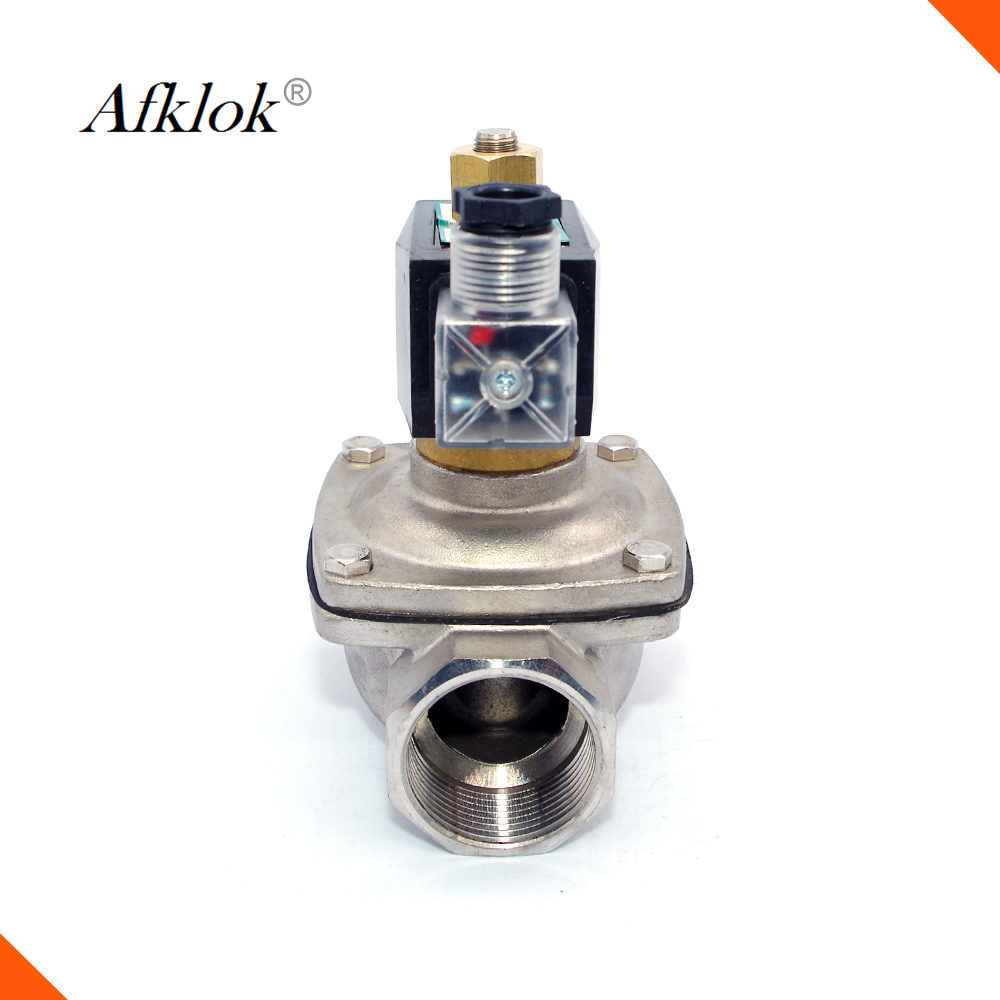

Normally Opened Stainless Steel Solenoid Valve Water Gas 12v 220v 24v 110v

Short Description:

Model: 2W-BK

Pipe size:3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″

Thread: G (BSP), NPT

Media: Air water oil, the neutral gas liquid

Function type:Normally opened

Working pressure : (water, air):1~10bar (Oil):0~7bar

Body material: ss304

Voltage:AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V

Material of seal: Standrad: NBR (Medium temperature: -5℃ ~80℃ ), EPDM(-5℃ ~120℃), VITON (-5℃ ~150℃)

2-way normally closed solenoid valve, closed when de-energizes,open when energized.

Send email to us

Product Detail

Parameters

FAQ

Product Tags

Safety
1. General solenoid valve is not waterproof, please choose waterproof type when conditions do not allow, the factory can be customized.
2. The highest standard nominal pressure of the solenoid valve must exceed the highest pressure in the pipeline, otherwise the service life will be shortened or produce other unexpected situations.
3. Corrosive liquids should be selected from the full stainless steel type, strong corrosive fluids should be selected from other special materials solenoid valve.
4. Explosive environment must use the corresponding explosion-proof products

Previous: High Pressure Gas Stainless Steel Three Way Tee Type Filter

Next: 200bar High Pressure Changeover Switch Gas Regulator

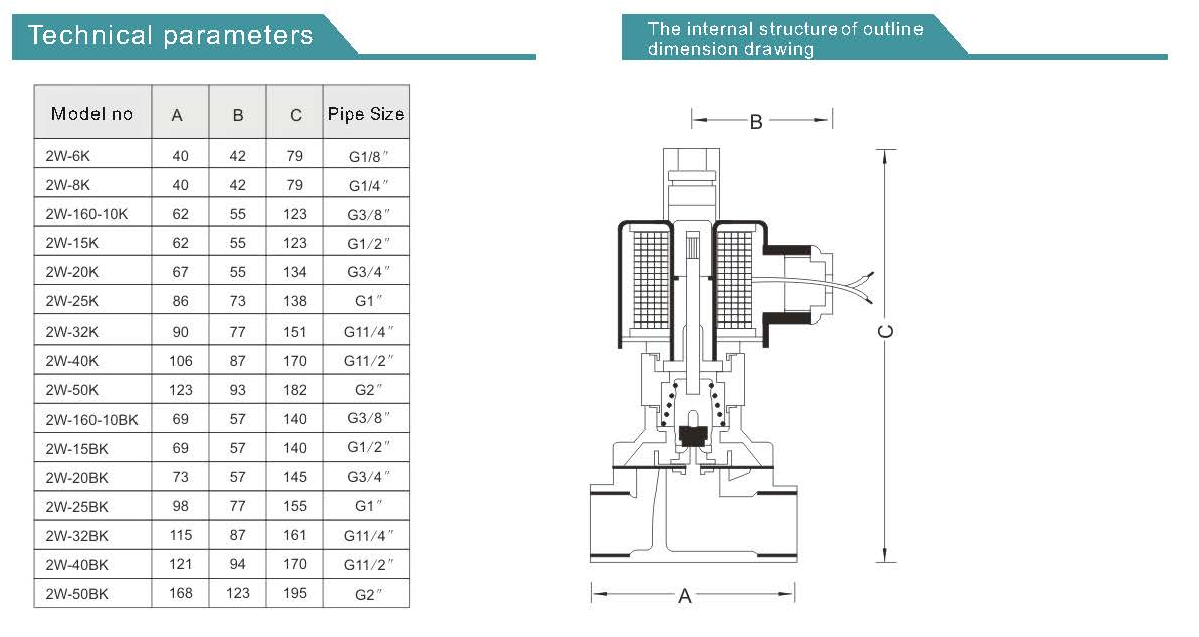

Model Number	2W-10BK	2W-15BK	2W-20BK	2W-25BK	2W-32BK	2W-40BK	2W-50BK
Pipe Size	3/8″	1/2″	3/4″	1″	1 1/4″	1 1/2″	2″
Orifice	16mm	16mm	20mm	25mm	32mm	40mm	50mm
Fluid	Air water oil, the neutral gas liquid	Service voltage		AC110V/AC220V/DC24V/AC24V/DC12V(50/60Hz)
Operating	Pilot type	Type		Normally open
Body material	Stainless steel 304	Working pressure		(water, air): 1-10kgf/cm2
Material of seal	NBR (-5- 80℃) EPDM (-5-120℃) VITON(-5-150℃)

Q1: what kinds of stainless steel are most commonly used?

A1.201 stainless steel is suitable for use in dry explosion environment. It is easy to rust in water

A2.304 stainless steel, outdoor or humid environment, strong corrosion resistance and acid resistance.

A3.316 stainless steel, molybdenum added, more corrosion resistance and pitting corrosion resistance, especially suitable for seawater and chemical media.

Q2. how can we guarantee quality?

A1: Strictly in accordance with the ISO9001 standard, the products have passed the A2.CE/ROHS/EN certification

Always a pre-production sample before mass production;Always final Inspection before shipment;

Q3.what can you buy from us?

A.pressure regulator,pressure gauges, Tube fittings,solenoid valve,Needle valve,check valve ect.

Q4.What’s the MOQ?

A: , All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter.

Q5. what services can we provide?

A1.Accepted Delivery Terms: FOB,CIF,EXW；

A2.Accepted Payment Currency:USD,CNY;

A3.Accepted Payment Type: T/T,L/C,Western Union;

A4.Language Spoken:English,Chinese
