Valves are small components with big responsibilities. They are linchpins that keep industrial, commercial and residential operations running smoothly and safely in manufacturing, heating, and many other types of systems. Among the various types of valves available, safety valves and relief valves are two of the most important. While they may appear similar at first glance, they have distinct functions, applications, and mechanisms of operation.
Understanding the difference between safety valves and relief valves is crucial for ensuring the optimal performance and safety of your systems. Whether you are involved in chemical processing, water treatment, or any other industry that relies on controlled pressure, choosing the right valve is important for both the safety and the efficiency of your system. Let’s discover the difference between a pressure relief valve and a pressure safety valve so you can work out which is right for you.
What Is A Safety Relief Valve?
A safety valve serves as the guardian of a pressurised system, designed to automatically release the pressure created by a gas, steam, or liquid when the pressure within reaches its limit. They are always alert, ready to act the moment things go awry. The primary role of a safety valve is to protect your system from the potentially catastrophic effects of overpressure, which could lead to equipment damage or, worse, safety hazards for personnel.
The mechanism within a safety valve is straightforward but effective. It is calibrated to open fully and rapidly divert the flow of the over-pressurised liquid or gas to a safer location, often the surrounding atmosphere. Once the pressure returns to acceptable levels, the valve closes, allowing the system to resume normal operations. This rapid, full-opening action is one of the defining characteristics of a safety valve and sets it apart from other types of valves. Safety valves are commonly found in high-pressure systems such as steam boilers, gas cylinders, and chemical plants. Their role is not just preventive; it’s pivotal for maintaining the integrity and safety of your entire operation.

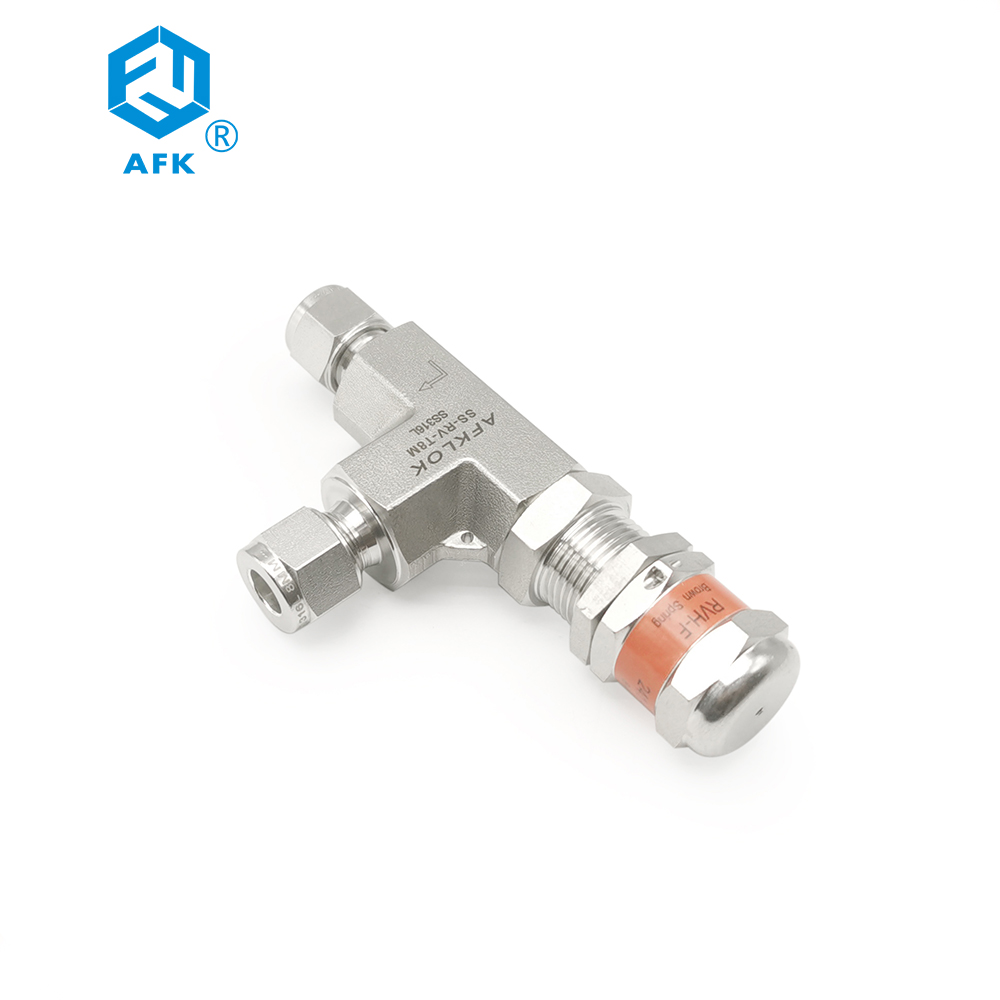

What Is A Relief Valve?
A relief valve is another critical component in the management of a system’s pressure, but it operates differently from a safety valve. While both types aim to alleviate excessive pressure, a relief valve does so in a more controlled manner. Unlike the rapid, full-opening action of a safety valve, a relief valve opens gradually, allowing a proportional amount of the over-pressurised gas or liquid to escape. This approach makes relief valves ideal for systems where pressure fluctuations are more frequent but less severe.
The relief valve is designed to open incrementally as the pressure rises, releasing just enough of the substance to bring the system back to its safe operating level. Once the pressure has been stabilised, the valve closes. This ensures minimal disruption to operations. This variable flow control is a defining feature of relief valves and distinguishes them from their safety valve counterparts. Common applications for relief valves include hydraulic systems, water heating systems, and air compressors. Their role is vital in maintaining the balance of your system, making sure that it operates safely and efficiently.
What Are The Key Differences?
At this point, you might be wondering what is the difference between a pressure relief valve and a pressure safety valve when both serve a similar purpose. While they share the same goal of maintaining safety and operational efficiency, their mechanisms and applications set them apart in distinct ways.
One of the most noticeable differences is the opening mechanism, but another key distinction lies in their applications. Safety valves are typically used in high-pressure systems where rapid pressure relief is needed to prevent catastrophic failure. Relief valves, on the other hand, are more suited for low to medium-pressure systems where pressure variations are frequent but not extreme.
The flow control in each type of valve varies too. Safety valves operate at a fixed flow rate, meaning they open fully or not at all. Relief valves offer variable flow control, allowing for a more nuanced approach to pressure management. Understanding these key differences can help you make the right choice for your application while ensuring that your system operates safely and efficiently.
What Are Their Similarities?
While safety valves and relief valves have their unique characteristics and applications, they also share some common ground that is worth noting. Both types of valves serve the fundamental purpose of protecting your system from the dangers of overpressure. Whether working with high-pressure steam or hydraulic fluid, these valves act as safeguards to prevent equipment damage and maintain a safe working environment.
Another shared feature is their construction. Both valves are often made from similar materials like stainless steel or brass, designed to withstand industrial use. Their construction helps to ensure their long-lasting performance and reliability, making them indispensable components in a pressure control strategy. Both valves are equipped with a set point, a predetermined pressure level at which they activate. This set point is adjustable, allowing the valve’s performance to be tailored to the specific requirements of a system.
Despite their differences, the core function of safety and relief valves is the same; to maintain a safe and efficient operating environment. Recognising these similarities can help you appreciate the roles each valve plays in a pressure management system.
Selecting the right valve isn’t just about ticking a box; it’s about making an informed decision that aligns with the specific needs and challenges of your system. Whether you are dealing with high-pressure environments or systems with frequent but moderate pressure fluctuations, the choice between a safety valve and a relief valve is a critical one.
Both types of valves are indispensable, each offering unique advantages depending on your system’s requirements. When looking at safety vs relief valves, remember that including either or both of them in your system protects your equipment and also contributes to a safer and more efficient working environment.
