In the gas system application industry, whether it is a laboratory gas pipeline system or a semiconductor electronic special pipeline system, it is inseparable from the use of reduction valve. It is well known that a high-quality high-purity gas system can have a good impact on the qualification rate of the product and the quality of the boutique, but also guarantee the smooth and stable experiment. A high-quality high purity gas system has a source of each system, which is less than a high quality reduced pressure valve.
As a result of the industry-leading high-end intelligent gas delivery integrator, Shenzhen Wofly Technology Co., Ltd. (hereinafter referred to as “Woy Fei Technology”), in the long-term development, in terms of the performance of the product and customer usage satisfaction The pursuit is never endless, always remembering “innovation is the first productive” and “technological winning, quality assurance” spiritual concept and business philosophy, Toy Fei Technology has a comprehensive upgrade of “AfkLok” series pressure reducing valve The composition of each component of the pressure reducing valve is optimized and updated.
Functional Structure of Pressure Regulator
Pressure regulator is the most commonly used valve device for gas pipeline project. The main function of the reduced pressure valve is to adjust the stable gas pressure, which can adjust the high pressure gas to the pressure size required to use the device, thereby meeting the needs of the equipment. It can be said that the effect of the pressure reducing valve is indispensable, it achieves the conversion of the gas from the supply of gas to the use.
Optimization analysis of each component of the pressure regulator.

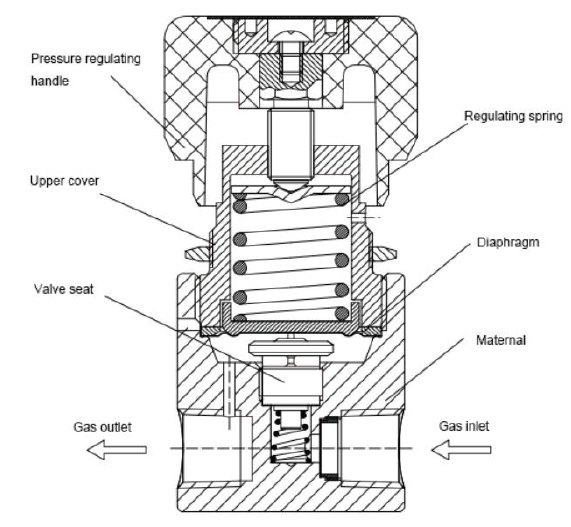

Pressure Regulator consists of a valve body, a valve stem, a nut, a spring, a diaphragm, a valve cap, and the like. Here we specifically introduce the optimization of the components of Wofly Technology “Afklok” series of pressure regulating valves.
1.Diaphragm
The diaphragm is the most critical component of the pressure reducing valve. The AFKLOK decompression valve diaphragm is made of imported Khastan alloy strip manufacturing (the international first-line equivalent valve film), this alloy material has the strongest corrosion resistance and anti-fatigue strength (durability), which can greatly increase decompression The service life of the valve membrane.
2.Valve Body
2.1 it is good to see a valve body, and you can see it. The valve body of the AFKLOK pressure reducing valve is Ba grade, and the valve body flow channel is smooth, no burr.
3. Spring: Adopting the imported mold spring with better stiffness.
4. Cap
The valve cap handles are smooth, and the feeling of hand is more in line with ergonomics, which greatly improves the customer’s comfort
4.1 Valve stem, nut, etc.
