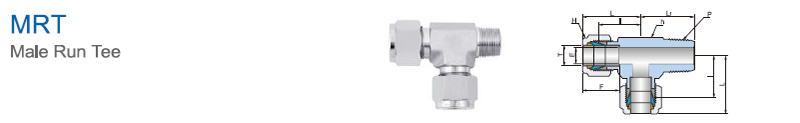

Instrumentation 1/4 3/8 1/2 inch Stainless Steel Male Run Tee Fittings
Connects Fractional Tube to Female NPT Thread
|
Part No. |
Tube OD T |
P NPT |
Dimensions (mm) |
|||||||||
|
E Min. |
h |
H |
F |
I |
L |
L1 |
||||||
|
inch |
Mm |
Inch |
mm |
Inch |
mm |
|||||||
|
MRT-0202N |
1/8 |
3.17 |
1/8 |
2.3 |
1/2 |
12.70 |
7/16 |
11.11 |
12.7 |
17.0 |
23.6 |
17.8 |
|
MRT-0204N |
1/8 |
3.17 |
1/4 |
2.3 |
1/2 |
12.70 |
7/16 |
11.11 |
12.7 |
18.0 |
24.6 |
23.4 |
|
MRT-0302N |
3/16 |
4.76 |
1/8 |
3.0 |
7/16 |
11.11 |
1/2 |
12.70 |
13.7 |
17.8 |
24.4 |
17.8 |
|
MRT-0402N |
1/4 |
6.35 |
1/4 |
4.8 |
1/2 |
12.70 |
9/16 |
14.28 |
15.2 |
19.6 |
26.9 |
18.8 |
|
MRT-0404N |
1/4 |
6.35 |
1/8 |
4.8 |
1/2 |
12.70 |
9/16 |
14.28 |
16.2 |
19.6 |
26.9 |
23.4 |
|
MRT-0502N |
5/16 |
7.94 |
1/8 |
4.8 |
9/16 |
14.28 |
5/8 |
15.87 |
16.3 |
22.4 |
29.7 |
20.8 |
|
MRT-0604N |
3/8 |
9.52 |
1/4 |
7.1 |
5/8 |
15.87 |
11/16 |
17.46 |
16.8 |
23.1 |
30.5 |
25.4 |
|
MRT-0606N |
3/8 |
9.52 |
3/8 |
7.1 |
11/16 |
17.46 |
11/16 |
17.46 |
16.8 |
239 |
31.2 |
28.2 |
|
MRT-0806N |
1/2 |
12.70 |
3/8 |
9.7 |
13/16 |
20.63 |
7/8 |
22.22 |
22.9 |
25«9 |
36.1 |
28.2 |
|
MRT-0808N |
1/2 |
12.70 |
1/2 |
10.4 |
13/16 |
20.63 |
7/8 |
22.22 |
22.9 |
25.9 |
36.1 |
33.0 |
|
MRT-1008N |
5/8 |
15.87 |
1/2 |
11.9 |
1 |
25.40 |
1 |
25.40 |
24.4 |
27.9 |
38.1 |
35.1 |
|
MRT-1212N |
3/4 |
19.05 |
3/4 |
15.7 |
1-1/16 |
26.98 |
1-1/8 |
28.57 |
24.4 |
29.7 |
39.9 |
36.8 |
All MRT fractions are available with ISO tapered pipe threads. To order, add an "R" instead of an "N" at the end.
Connects Metric Tube to Female ISO Tapered Thread
|
Part No. |
Tube OD T |
P ISO7/1 |
Dimensions (mm) |
||||||
|
E Min. |
h |
H |
F |
I |
L |
L1 |
|||
|
mm |
inch |
mm |
|||||||
|
MRT-M0302R |
3 |
1/8 |
2.4 |
12.70 |
11.11 |
12.9 |
V.0 |
23.6 |
17.8 |
|
MRT-M0304R |
3 |
1/4 |
2.4 |
12.70 |
11.11 |
12.9 |
18.0 |
24.6 |
23.4 |
|
MRT-M0402R |
4 |
1/8 |
2.4 |
12.70 |
12.70 |
13.7 |
18.8 |
25.4 |
18.8 |
|
MR「M0602R |
6 |
1/8 |
4.8 |
12.70 |
1428 |
15.3 |
19.6 |
27.0 |
18.8 |
|
MRT-M0604R |
6 |
1/4 |
4.8 |
12.70 |
14^8 |
15.3 |
19.6 |
27.0 |
23.4 |
|
MRT-M0802R |
8 |
1/8 |
4.8 |
14.28 |
15.87 |
16.2 |
21.3 |
28.8 |
19.6 |
|
MRT-M0804R |
8 |
1/4 |
6.4 |
14.28 |
15.87 |
16.2 |
21.3 |
28.8 |
24.4 |
|
MRT-M1004R |
10 |
1/4 |
7.1 |
17.46 |
19.05 |
17.2 |
23.9 |
31.5 |
28.2 |
|
MRT-M1006R |
10 |
3/8 |
7.9 |
17.46 |
19.05 |
17.2 |
23.9 |
31.5 |
28.2 |
|
MRT-M1204R |
12 |
1/4 |
7.1 |
20.63 |
22.22 |
22.8 |
25.9 |
36.0 |
28.2 |
|
MRT-M1206R |
12 |
3/8 |
9.5 |
20.63 |
22.22 |
22.8 |
25.9 |
36.0 |
28.2 |
|
MRT-M1208R |
12 |
1/2 |
9.5 |
20.63 |
22.22 |
22.8 |
25.9 |
36.0 |
33.0 |
|
MRT-M1606R |
16 |
3/8 |
9.5 |
25.40 |
25.40 |
24.4 |
27.9 |
38.0 |
30.2 |
|
MRT-M1608R |
16 |
1/2 |
11.9 |
25.40 |
25.40 |
24.4 |
27.9 |
38.0 |
35.1 |
|
MRT-M2012R |
20 |
3/4 |
15.9 |
34.92 |
31.75 |
26.0 |
34.5 |
44.6 |
41.7 |
Al metric MRTs are available with NPT standard threads. To order, add an W instead of an "R" at the end.
This size is for reference only. sub)e€t to poss blc changes m the actual product (without notice). E refers to the smallest opening. F and L are the standard hand-tightened dimensions.
