Main parts of material
| body | 316L |
| bonnet | 316L |
| seat | PCTFE |
| spring | 316L |
| stem | 316L |
| o-ring | viton |
| stainer | 316L(10um) |
Features:
1.Single-Stage pressure-reducing structure
2.Metal-To-metal disphragm seal
3.Body Thread:1/4″ NPT(F)
4.Gauge,safety valve:1/4″ NPT(F)
5.Filter element installed internal
6.Panel Mount and Wall Mount avaliable
Specifications

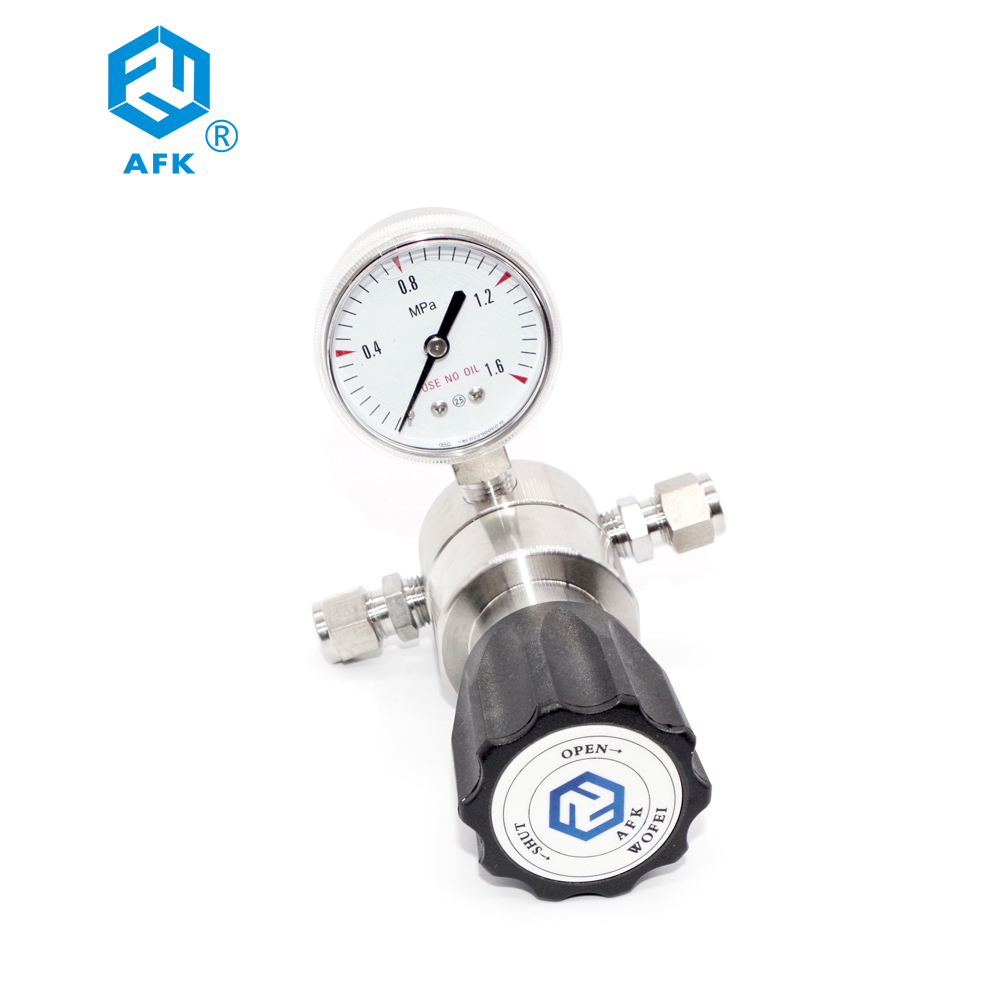

| Product Name | R52 Stainless Steel Pressure Regulator |
| Material | stainless steel,brass |
| Color | nickel white |
| Standard | GB |
| Max.Inlet Pressure | 3000psi |
| Max.Outlet Pressure | 250 psi |
| Safety Test Pressure | 1.5 times of Max.Inlet Pressure |
| Leakage Rate | 2 x 10-8 cc/sec He |
| CV | 0.15 |
| Working Temperature | -29℃~66℃ |
Flow Data
Dimensions:
Ordering Information
|
R52 |
L |
B |
G |
G |
00 |
00 |
02 |
P |
|
Item |
Body Material |
Body Hole |
Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
|
R52 |
L:316 |
A |
G:3000 psi |
G:0-250psig |
G:Mpa guage |
00:1/4 “NPT(F) |
00:1/4 “NPT(F) |
P:Panel mounting |
| B:Brass |
B |
M:1500 psi |
I:0-100psig |
P:Psig/Bar Guage |
00:1/4 “NPT(F) |
00:1/4 “NPT(F) |
R:With relief valve |
|
| D | F:500 psi |
k:0-50psig |
W:No guage |
23:CGA330 |
10:1/8″ OD |
N:With Needle valve |
||
| G |
L:0-25psig |
24:CGA350 |
11:1/4″ OD |
D:With diaphragm valve |
||||
| J | Q:30″Hg Vac-30psig |
27:CGA580 |
12:3/8″ OD | |||||
| M | S:30″Hg Vac-60psig |
28:CGA660 |
15:6mm OD | |||||
| T:30″Hg Vac-100psig | 30:CGA590 | 16:8mm OD | ||||||
| U:30″Hg Vac-200psig | 52:G5/8-RH(F) | 74:M8X1-RH(M) | ||||||
| 63:W21.8-14RH(F) | Other type is available | |||||||
| 64:W21.8-14LH(F) | ||||||||
| Other type is available |
