Single Stage High Pressure Regulator 6000 psi

Short Description:

Material:Stainless Steel
Max Inlet Pressure:3000,6000PSI
Outlet Pressure:0~250,0~500,0~1500,0~3000psi
CV:0.06
Thread:1/4NPT Female
Application:Laboratory, Industrial, Semiconductor

Send email to us

Product Detail

Video

Parameters

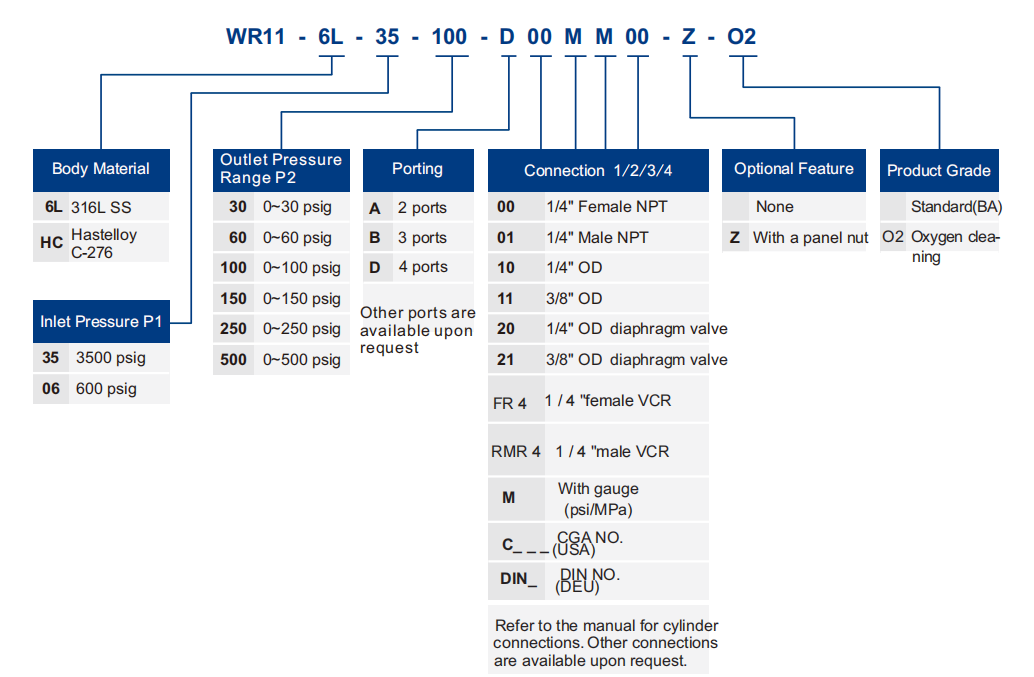

Ordering Information

Applicable scenarios

FAQ

Product Tags

Description Of Industrial Gas Regulator Adjustable Propane Regulator

Industrial Gas Regulator Adjustable Propane Regulator,Single-stage diaphragm pressure reduction structure, stainless steeldiaphragm pressure transmission, stable output pressure. This Industrial Gas Regulator Adjustable Propane Regulator with a wide range of uses, which can be used in semiconductors, laboratories, chemical analysis,instrumentation,gas chromatograph,gas laser,gas bus,oil and chemical industrey,tesed instrumentation etc. Can be used for corrosive and toxic gases.Pressure regulator an economical and ideal choice for regulating gas or liquid pressure. 316L stainless steel body, stainless steel valve stem and adjustment handle avoid environmental corrosion. The surface finish inside the body is high. You can choose a variety of different valve seat materials, a variety of inner diameters and a variety of pressure control ranges, and the stainless steel diaphragm provides reliability in pressure and flow control. This high pressure regulator has excellent accuracy, sensitivity and stable pressure set point.

Previous: High Pressure Argon hydrogen gas Single Stage Pressure Regulator

Next: High Pressure Hydrogen Gas Stainless Steel Pressure Regulator

Design Features of Industrial Gas Regulator Adjustable Propane Regulator
1	Piston pressure-reducing structure
2	Body thread:1/4″NPT(F)
3	Filter element installed internally
4	Panel mounting and wall mounting available

Material of Industrial Gas Regulator Adjustable Propane Regulator
1	Body	316L
2	Bonnet	316L
3	Seat	PCTFE
4	Spring	316L
5	Stem	316L
6	Ring	Fluoroelastomer
7	Strainer	316L(10μm)

Product name	High Quality Gas Pressure Regulator Valve
Material	Stainless Steel
Max Inlet Pressure	3000,6000PSI
Outlet pressure	0~250,0~500,0~1500,0~3000psi
cv	0.06
Thread	1/4NPT Female
Application	Laboratory, Industrial, Semiconductor
Packaging	17cm17cm17cm
MOQ	1pcs
Weight	0.9kg
Leakage rate	bubble-tight testing
Working tem	-40℉~+446℉(-40℃~+230℃)

Cleaning Technics

Standard(KW-BA)

The welded fittings are cleaned in accordance with our standard cleaning and packaging specifications. No suffixes need to be added when ordering.

Oxygen Cleaning(KW – O2)

Specifications for cleaning and packaging of products for oxygen environments are available. This meets ASTM G93 Class C cleanliness requirements. When ordering, add -O2 to the end of the order number.

Specialty Gases include rare gases, extremely pure gases and gases of the highest mixing accuracy, which are used in very demanding applications by a wide range of industries.

Many Customers have specific requirements that are not always standard mixtures. For these applications, we are able to provide the Quality Control Solution via our range of NovaCHROM Gas Chromatographs or Gas Analysers depending on the exact requirement.
