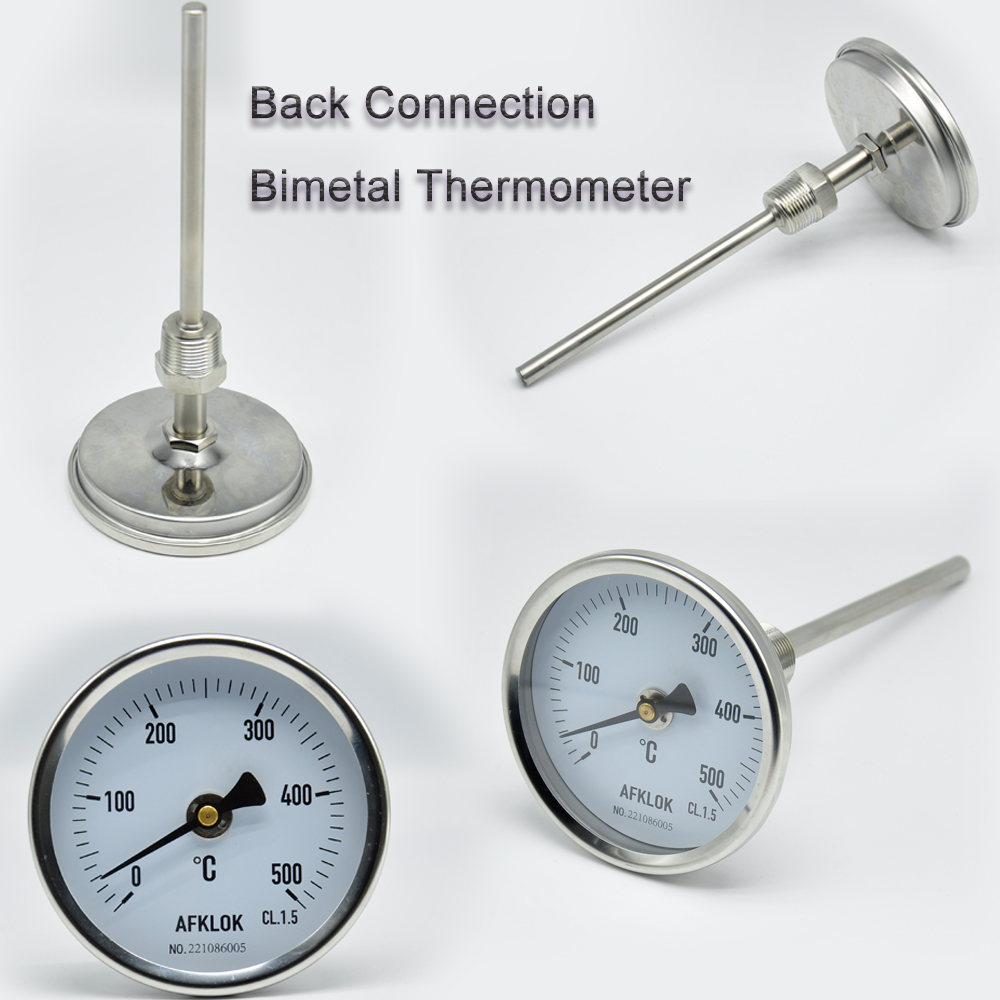

Industrial Back Connection Thread Bimetal Dial Type Thermometer

Short Description:

Product Name:Bimetal Thermometer

Material:Stainless Steel 304

Connection:Thread

Application:Industries

Range:0~500℃

Dial case:100mm

Sensord length:150mm

Sensord diameter:10mm

Thread type:3/4″inch NPT

Send email to us

Product Detail

Video

Parameters

FAQ

Product Tags

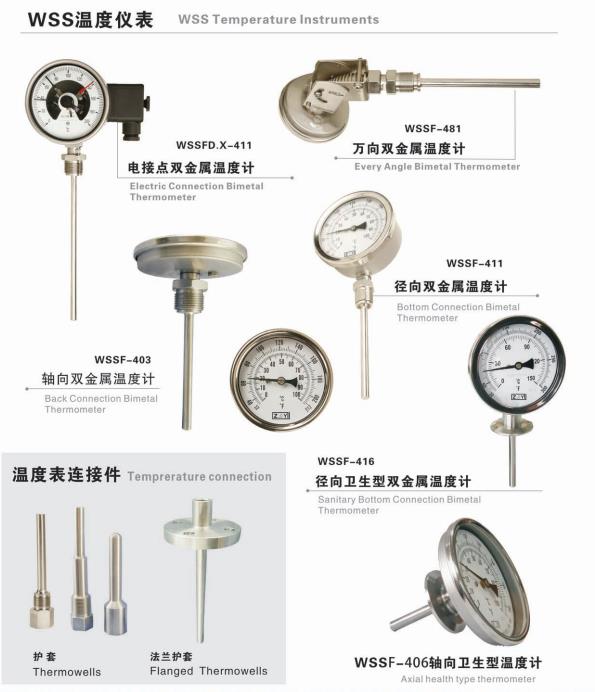

WSS Series Bimetal Thermometer

WSS series bimetallic thermometers are designed to directly measure low and medium temperature of fluid Steam. The sensing element"Bimetallic Coil"is composed of 2 indivisibe metal sheets.Since the 2 metal have different rates of thermal expansion，the bimetal deforms varying with temperature.This expansion is almost in proportion to temperature.The one end of bimetal is fixed，the other end is connected to mechanism to drive point.

Product Description of Back Connection Bimetal Thermometer

Previous: Single Stage Hydraulic Adjustable Propane Oxygen Nitrogen Gas Low Pressure Regulator Valve With Gauge 160PSI

Next: Nitrogen Oxygen Acetylene Argon Gas Cylinder Stainless Steel Pressure Gauge

Specification of Back Connection Bimetal Thermometer

Thermometer

range：-50℃~0~600℃ temperature sensord diameter：6.35mm，8mm，10mm temperature sensord length：Optional（temperature range≥100℃.min.length 50mm）

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?

pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve

4. why should you buy from us not from other suppliers?

We have a couple of years with professional engineers and dedicated technicians.can provide security products for you

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW；

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,Western Union;

Language Spoken:English,Chinese

Back Connection bimetal thermometer
