High Quality for China Oxygen Single Stage 2 Gauge Regulator

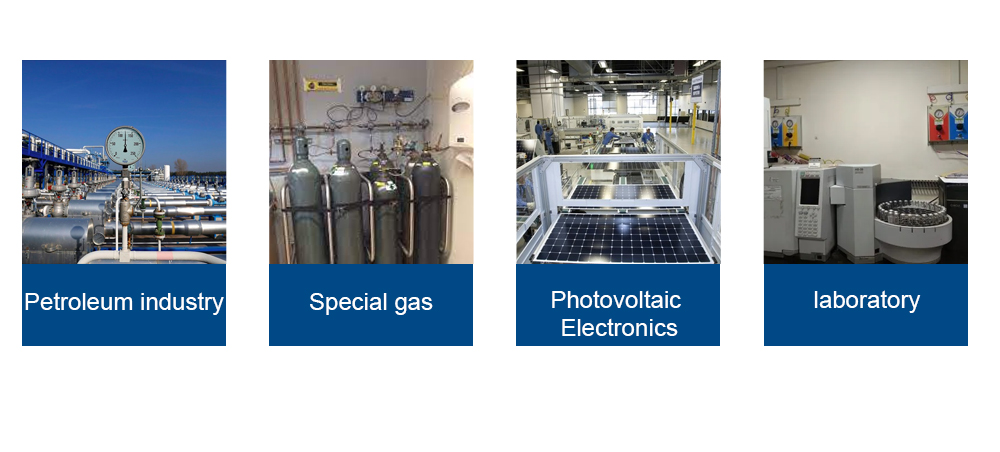

Application :
1.Laboratory
2.Gas Chromatography
3.Gas Lasers
4.Gas Bus-bar
5.Petrochemical Industry
6.Testing Equipment

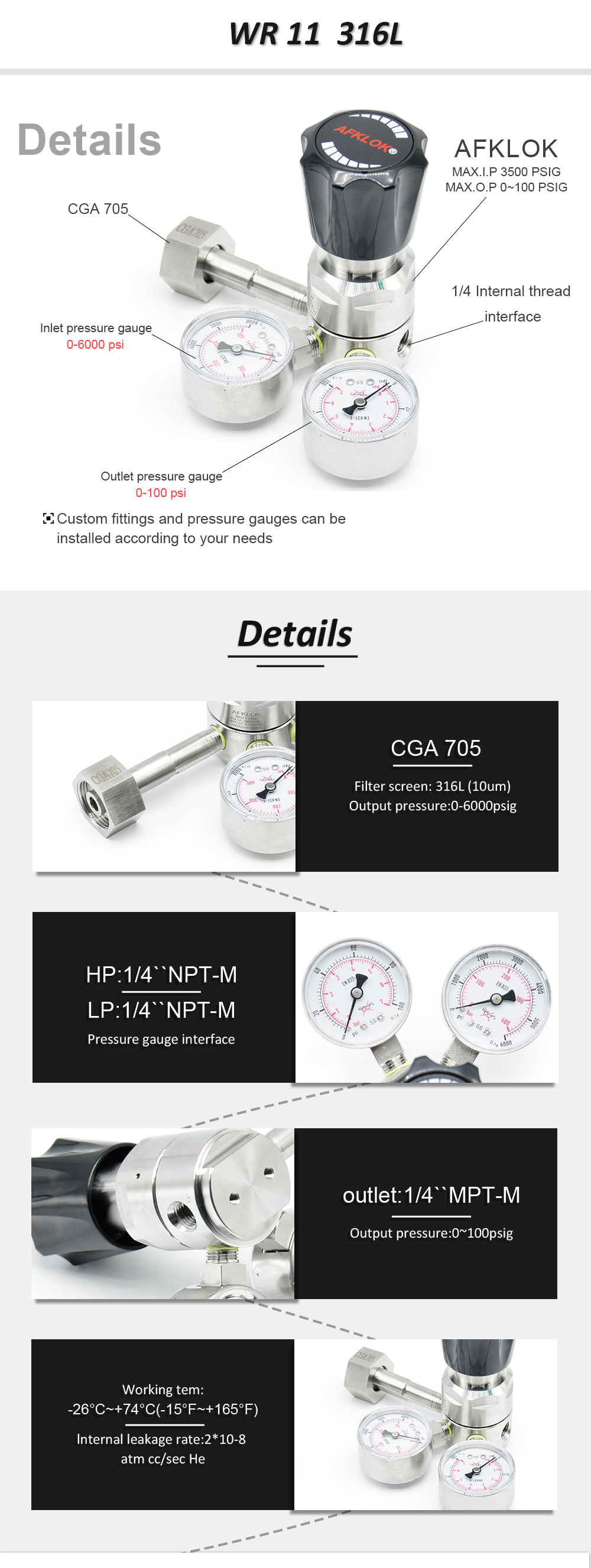

Design Feature:
Single-stage pressure reducer
Maternal and diaphragm use hard seal form
Body NPT:1/4”NPT(F)
The internal structure easy to purge
Can set filters
Can use a panel or wall mounting

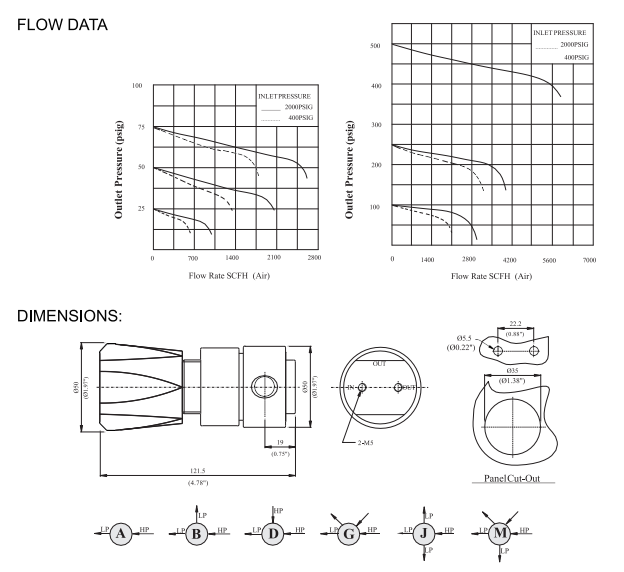

Product Parameenters:
| Maximum Inlet Pressure | 500,3000psig |
| Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig |
| Safety test pressure | 1.5 times maximum inlet pressure |
| Operating Temperature | -40°F to 165°F / -40°c to 74°c |
| Leakage Rate AgainstAtmosphere | 2*10-8atm cc/sec he |
| Cv value | 0.08 |
Materials:
| Body | 316L,Brass |
| Bonnet | 316L. Brass |
| Diafragm | 316L |
| strainer | 316L(10mm) |
| Seat | PCTFE,PTEE,Vespel |
| Spring | 316L |
| Plunger valve core | 316L |
Ordering Information
|
R11 |
L |
B |
B |
D |
G |
00 |
02 |
P |
|
Item |
Body Material |
Body Hole |
Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
|
R11 |
L:316 |
A |
D:3000 psi |
F:0-500psig |
G:Mpa guage |
00:1/4″NPT(F) |
00:1/4″NPT(F) |
P:Panel mounting |
| B:Brass |
B |
E:2200 psi |
G:0-250psig |
P:Psig/Bar Guage |
01:1/4″NPT(M) |
01:1/4″NPT(M) |
R:With relief valve |
|
| D | F:500 psi |
K:0-50pisg |
W:No guage |
23:CGGA330 |
10:1/8″ OD |
N:Needle calve |
||
| G |
L:0-25psig |
24:CGGA350 |
11:1/4″ OD |
D:Diaphregm valve | ||||
| J |
27:CGGA580 |
12:3/8″ OD | ||||||
| M |
28:CGGA660 |
15:6mm OD | ||||||
| 30:CGGA590 | 16:8mm OD | |||||||
| 52:G5/8″-RH(F) | ||||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |
In solar cell applications specifically include solar cell applications, crystalline silicon solar cell production process and gas applications, thin film solar cell production process and gas applications; in compound semiconductor applications specifically include compound semiconductor applications, MOCVD / LED production process and gas applications; in liquid crystal display applications specifically include TFT / LCD applications, TFT In the application of liquid crystal display, it includes the application of TFT/LCD, the production process of TFT/LCD and gas application; in the application of optical fiber, it includes the application of optical fiber and the production process of fiber preform and gas application.
