High Pressure 3500psi Manual Diaphragm Valves 1/4inch

Short Description:

Type:Manual
Media:Gas
Port Size:1/4″NPT F
Material:316 Stainless Steel
Working Pressure:4500PSI

Send email to us

Product Detail

Parameters

RFQ

Video

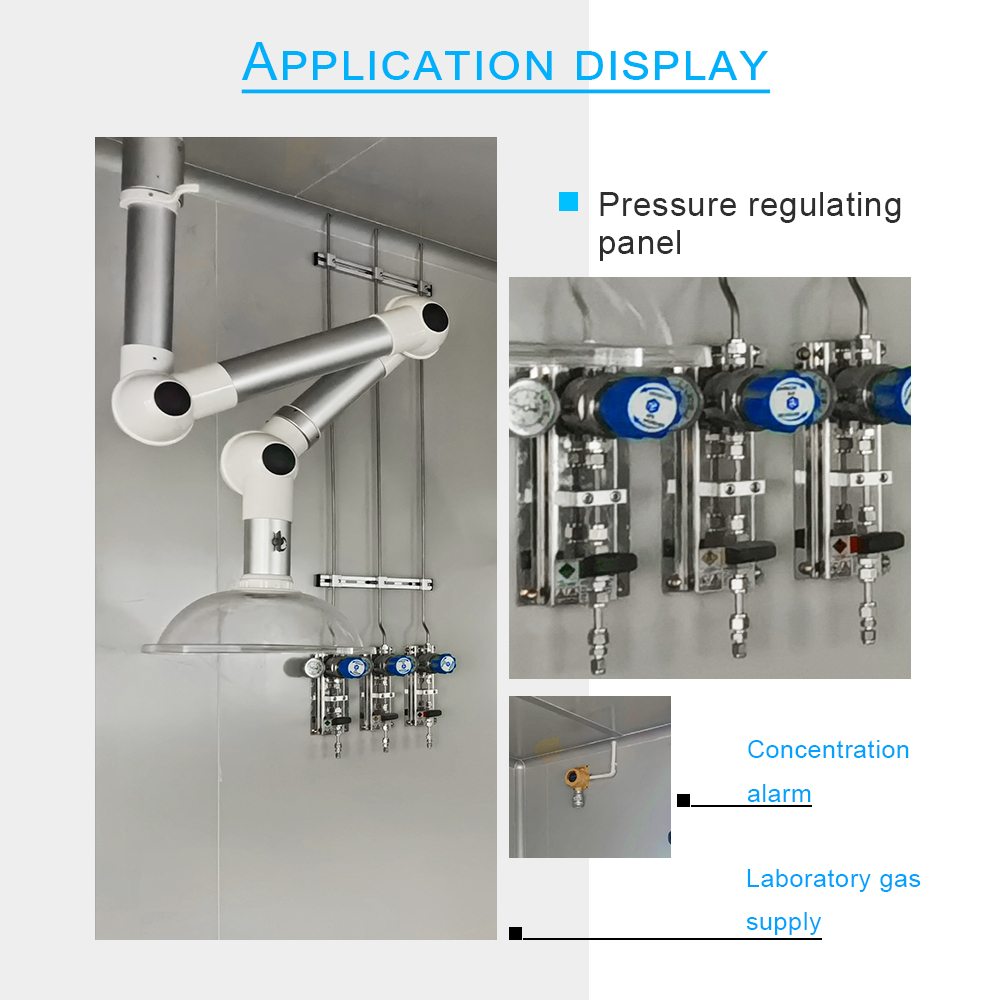

Applications

Product Tags

Product Description of Manual Diaphragm Valves

1. The maximum working pressure can reach 31mpa

2. Fully wrapped valve seat design, with superior anti expansion and pollution ability

3. Nickel cobalt alloy diaphragm has higher durability and corrosion resistance

4. The standard roughness is Ra0 twenty-five μ M (grade BA), or electropolishing Ra0 thirteen μ M (EP grade) optional

5. Helium test leakage rate ＜ 1x10-9 STD cm3 / S

6. Pneumatic actuators are available

7. The service life of pneumatic valve can reach 100000 times

Previous: 5bar 10 bar Gas Cylinder Pressure Gauge Stainless Steel Hygienic Diaphragm Pressure Gauge Accuracy 2.5% Vibration Resistant

Next: 1/4in 150psi High Quality High Purity Gas Nitrogen Oxygen Helium Low Pressure Manual Stainless Steel Diaphragm Valve OEM

Specification of manual diaphragm valves

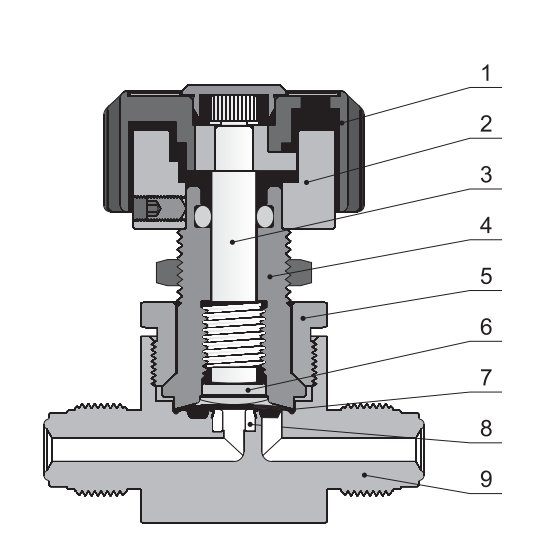

Item	Part Description	Material
1	handle	Aluminium
2	Actuator	Aluminium
3	Valve Stem	304 SS
4	Bonnet	S17400
5	Bonnet Nut	316 SS
6	Button	Brass
7	Diaphragm	Nickel cobalt alloy
8	Valve Seat	PCTFE
9	Valve Body	316L SS

Flow data:Air@ 21℃(70℉) Water@16℃(60℉)
1	pressure drop of maximum air pressure bar(psig)	air(I/min)	water(I/min)
2	0.68(10)	64	2.4
3	3.4(50)	170	5.4
4	6.8(100)	300	7.6

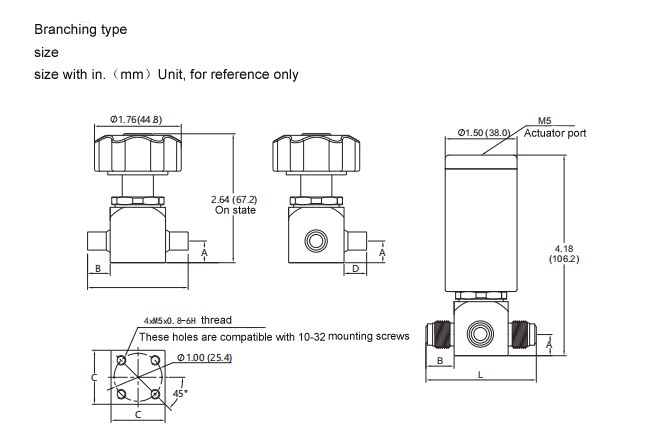

basic order number	port type and size	size in.(mm)
basic order number	port type and size	A	B	C	L
WV4H-6L-TW4-	1/4″-Tube-w	0.44(11.2)	0.3(7.6)	1.12(28.6)	1.81(45.9)
WV4H-6L-FR4-	1/4″-FA-MCR	0.44(11.2)	0.86(21.8)	1.12(28.6)	2.85(72.3)
WV4H-6L-MR4-	1/4″-MA-MCR1/4	0.44(11.2)	0.58(14.9)	1.12(28.6)	2.24(57.0)
WV4H-6L-TF4-	OD	0.44(11.2)	0.70(17.9)	1.12(28.6)	2.54(64.4)
