High Pressure Argon hydrogen gas Single Stage Pressure Regulator

Short Description:

  • Material:Stainless Steel 316
  • Application:Industry Equipment
  • Working Temperature:-40℃~+74℃(-40℉~+165℉)
  • Seat:PCTFE,PTFE,Vespel
  • Structure:Single Stage Pressure Regulator
  • Max Inlet Pressure:600.3500PSI
  • Outlet Pressure:0~30,0~60,0~100,0~150,0~250,0~500PSI
  • Thread:NPT “1/4 (F)


Product Detail

Video

Parameters

Ordering Information

FAQ

Product Tags

Description Of Gas Regulator High Pressure Adjustable Gas Pressure Regulator

Gas Regulator High Pressure Adjustable Gas Pressure Regulator,Single-stage diaphragm pressure reduction structure, stainless steel diaphragm pressure transmission, stable output pressure.This Gas Regulator High Pressure Adjustable Gas Pressure Regulator is a universal pressure reducing valve with a wide range of uses, which can be used in semiconductors, laboratories, chemical analysis, instrumentation,gas chromatograph,gas laser,gas bus,oil and chemical industrey,tesed instrumentation etc. Can be used for corrosive and toxic gases.Pressure regulator an economical and ideal choice for regulating gas or liquid pressure. 316L stainless steel body, stainless steel valve stem and adjustment handle avoid environmental corrosion. The surface finish inside the body is high. You can choose a variety of different valve seat materials, a variety of inner diameters and a variety of pressure control ranges, and the stainless steel diaphragm provides reliability in pressure and flow control. This high pressure regulator has excellent accuracy, sensitivity and stable pressure set point.

细节图

  • Previous:
  • Next:

  • Specification Of Gas Regulator High Pressure Adjustable Gas Pressure Regulator

    Product name Gas Regulator High Pressure Adjustable Gas Pressure Regulator
    Material Stainless Steel 316L
    Max Inlet Pressure 600,3500PSI
    Outlet pressure 0~30,0~60,0~100,0~150,0~250,0~500PSI
    Thread NPT “1/4 (F)
    CV 0.20,0.09
    Seat PCTFE,PTFE,Vespel
    Package size 17cm*17cm*17cm
    Working Temperature -40℃~+74℃(-40℉~+165℉)
    Structure Single Stage Pressure Regulator
    Ports standard4 ports, can customize2 ports, 3 ports, 5 ports,6 ports
    Structure diaphragm, piston, one stage
    Mounting method Panel-mounted, wall-mounted
    Customised available with Panels, safety valves, needle valves























    Features of Gas Regulator High Pressure Adjustable Gas Pressure Regulator

    Material of Gas Regulator High Pressure Adjustable Gas Pressure Regulator

    1 Single-stage diaphragm structure 1 Body: 316L/SS304
    2 Corrugated diaphragm design for excellent sensitivity and cycle life 2 Seat: PCTFE,PTFE, Vespel
    3 Suitable for corrosive and toxic gases 3 Diaphragm: 316L
    4 20 μm filter element installed at inlet 4 Filrer mesh:316L(10μm)
    5 Oxygen environment options are available 5 spring loaded:316L
        6 valve disc regulatortion pole:316L

    R11FLOW

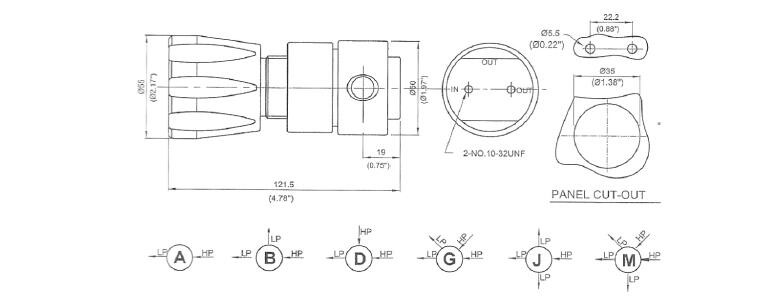

    R11结构

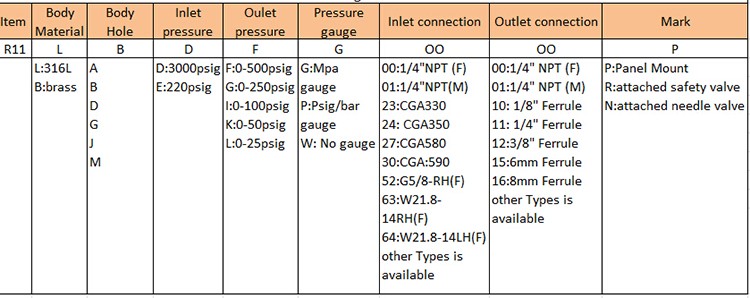

    Pls inform us orde code such as R11-L-D-D-G-P-00-00.

    Or else, pls inform us following information:

    1. Media? co2, o2, He, H2, or others?

    2. Inlet and outlet pressure?

    3. Inlet connection and outlet connection? such as inlet connection:CGA320, outlet connection:1/4NPT M.

    4.Flow rate?

    5.Material? pls kindly specify. Nickel plated brass and ss316L are avaiable.

    Q: Are you trading company or manufacturer?

    A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

    Q: How long is your delivery time?

    A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

    Q: What is your terms of payment?

    A: T/T 30% as deposit, and 70% before delivery.

    Q: What is the warranty ?

    A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

    Q: How can I get your catalogue and price list?

    A: Please let us know your email or contact us from website directly for our catalogue and price list;

    Q: Can I negotiate the prices?

    A: Yes, we may consider discounts for multiple container load of mixed goods.

    Q: How much will the shipping charges be?

    A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
