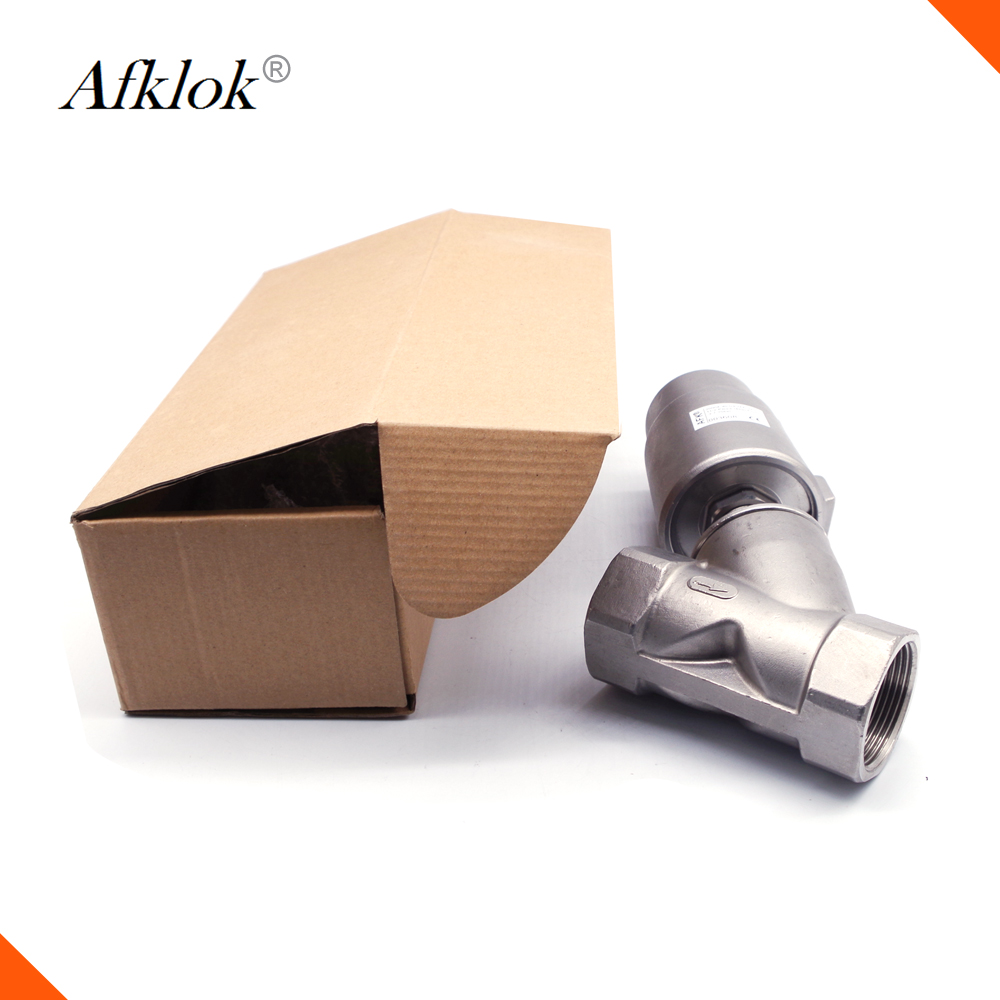

Full 16bar Stainless Steel Pneumatic Seat Valve for Steam Gas Oil
Pneumatic Valve
Function Principle
Valve is closed (open) with spring force, when the piton is actuated by compressed air, valve is open (closed). For the double acting type, the valve is open and closed by compressed air.
Specifications
|
1
|
Fluid Pressure
|
Max. 1.6 Mpa (232psi)
|
|
2
|
Control Pressure
|
0.3 ~0.8 Mpa (43.5~116psi)
|
|
3
|
Control Medium
|
Neutral gas or air
|
|
4
|
Body material
|
CF8M/CF8
|
|
5
|
Seal Material
|
PTFE
|
|
6
|
Actuator Material
|
CF8
|
|
7
|
Actor Size
|
50mm, 63mm, 80mm, 100mm
|
|
8
|
Applicable Medium
|
Water, Alcohol, Oil , Fuel, Steam, Neutral gas or liquid, Organic solvent, Acid and lye
|
|
9
|
Medium Viscosity
|
Max 600 mm2/s
|
|
10
|
Medium Temperature
|
-10℃-+180℃
|
|
11
|
Control Type
|
Normally closed, normally open, double acting
|
|
12
|
Connection
|
Threaded(BSP, NPT), Welded, Flanged, Tri-clamp
|
Advantage
| 1 | Large flux, low resistance, no water-hammer |
| 2 | Y-type shape enlarged to flowing section, which could raise the flux by 30% and make flow more smooth. |
| 3 | Super Long Life |
| 4 | Which help the stem adjust and lubricate itself automatically |
| 5 | The cylinder material is stainless steel. Lubricating automatically, 360° rolling freely |
Applications
| 1 | Bear & Drinks Filling Machinery |
| 2 | Textile Printing & Dying |
| 3 | Gas Industry |
| 4 | Pharmacy & Medical Equipment |
| 5 | Chemical Industry |
| 6 | Disinfection |
| 7 | Frothing Equipment. |
| 8 | Water/ Sewage Disposal |
Q1: what kinds of stainless steel are most commonly used?
A1.201 stainless steel is suitable for use in dry explosion environment. It is easy to rust in water
A2.304 stainless steel, outdoor or humid environment, strong corrosion resistance and acid resistance.
A3.316 stainless steel, molybdenum added, more corrosion resistance and pitting corrosion resistance, especially suitable for seawater and chemical media.
Q2. how can we guarantee quality?
A1: Strictly in accordance with the ISO9001 standard, the products have passed the A2.CE/ROHS/EN certification Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3.what can you buy from us?
A.pressure regulator,pressure gauges, Tube fittings,solenoid valve,Needle valve,check valve ect.
Q4.What’s the MOQ?
A: , All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter.
Q5. what services can we provide?
A1.Accepted Delivery Terms: FOB,CIF,EXW；
A2.Accepted Payment Currency:USD,CNY;
A3.Accepted Payment Type: T/T,L/C,Western Union;
A4.Language Spoken:English,Chinese
Q6. How long will the shipment take?
A: If it’s express, it will take 3~7days.If it by sea,it will take about 20~30days.
Q7. If any question when I got the product,how to solve it?
A: The product have warranty and we will offer you the online or video technical support.
