Dual Stage Special Gas High Pressure Regulator with Gauge 3000psi DIN Cylinder Connector
Features of Dual stage special gas high pressure regulator with gauge
- Double-stage diaphragm structure
- Corrugated diaphragm design for excellent sensitivity and cycle life
- Suitable for corrosive and toxic gases
- 20 μm filter element installed at inlet
- Oxygen environment options are available
Specification of Dual Stage Regulator Propane Adjusting Gas High Pressure Regulator with Pressure Gauge
Technical Data of Dual Stage Regulator Propane Adjusting Gas High Pressure Regulator with Pressure Gauge
Max Inlet Pressure:3000psig, 4500psig
Outlet Pressure Range:0～30, 0～60, 0～100, 0～150, 0～250
Component Material:
Seat:PCTFE
Diaphragm:Hastelloy
Filter mesh:316L
Working Temperature:-40℃～+74℃(-40℉～+165℉)
Leak Rate (Helium):
Internal:≤1×10 mbar l/s
External:≤1×10 mbar l/s
Flow Coefficient (Cv):0.05

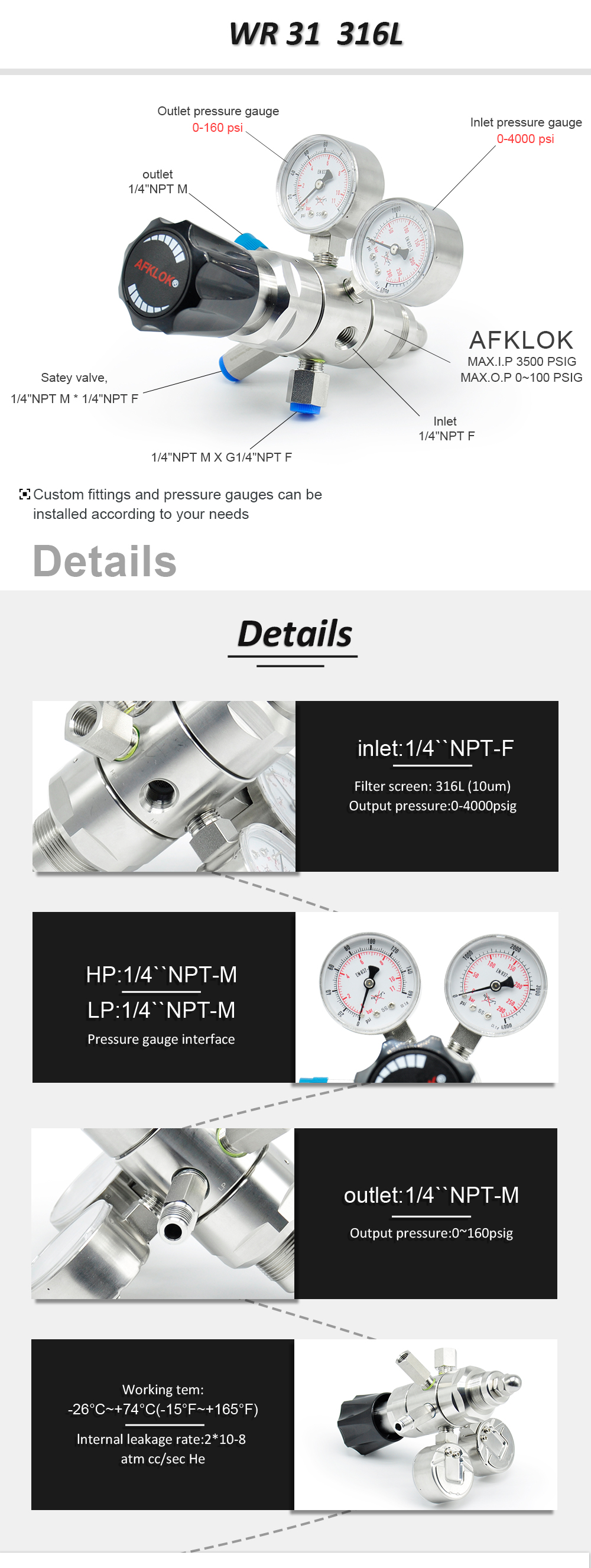

Body Thread:
Inlet port:1/4NPT
Outlet port:1/4NPT
Pressure gauge port:1/4NPT
| MATERIAL of Adjustable Dual Stage High Pressure Nitrogen Co2 Air Regulator with Gauge Ball Valve Relief Valve | ||
| 1 | Body | 316L,Brass |
| 2 | Bonnet | 316L,Brass |
| 3 | Diaphragm | 316L |
| 4 | Strainer | 316L(10um) |
| 5 | Seat | PCTFE,PTFE,Veapel |
| 6 | Spring | 316L |
| 7 | Stem | 316L |
Cleaning Technics
Standard(WK-BA)
The welded fittings are cleaned in accordance with our standard cleaning and packaging specifications. No suffixes need to be added when ordering.
Oxygen Cleaning(WK – O2)
Specifications for cleaning and packaging of products for oxygen environments are available. This meets ASTM G93 Class C cleanliness requirements. When ordering, add -O2 to the end of the order number.

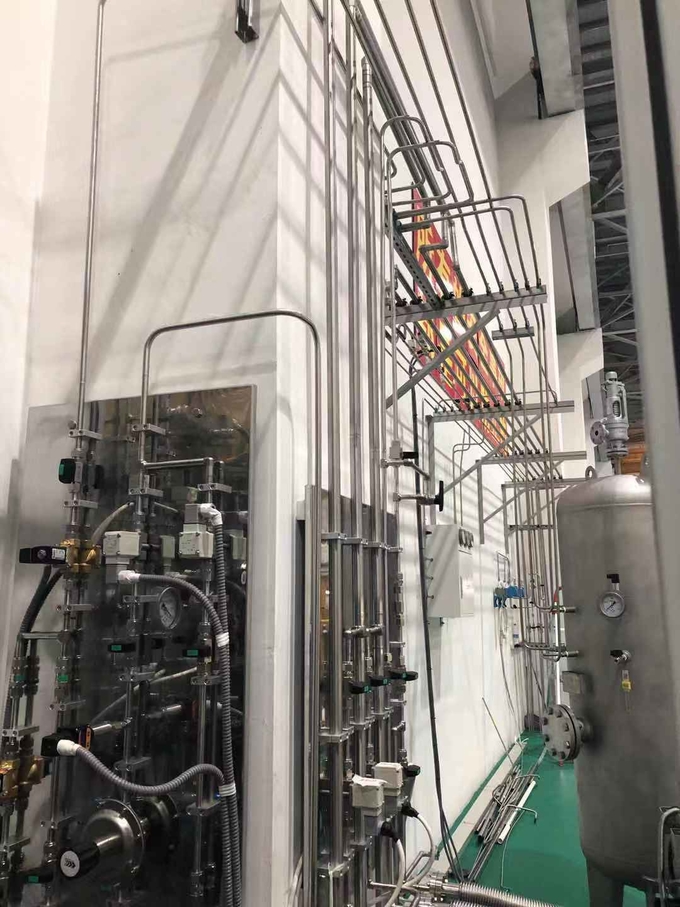

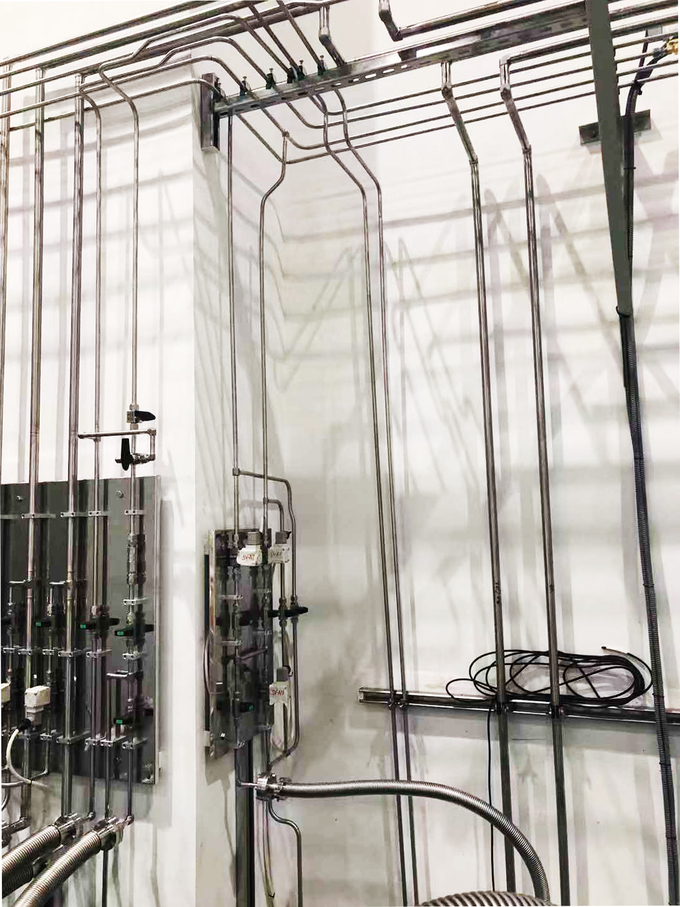

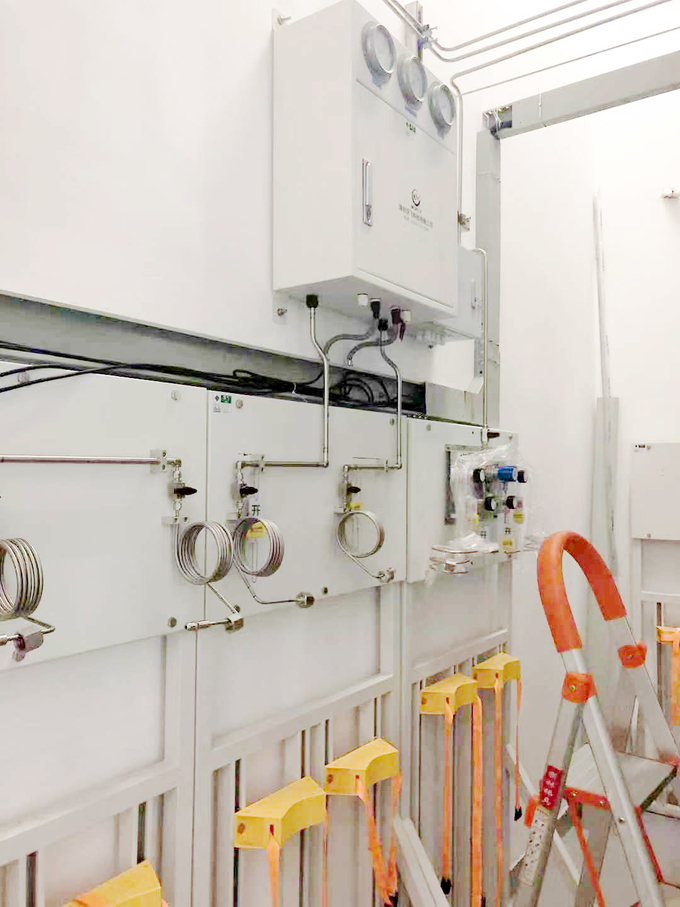

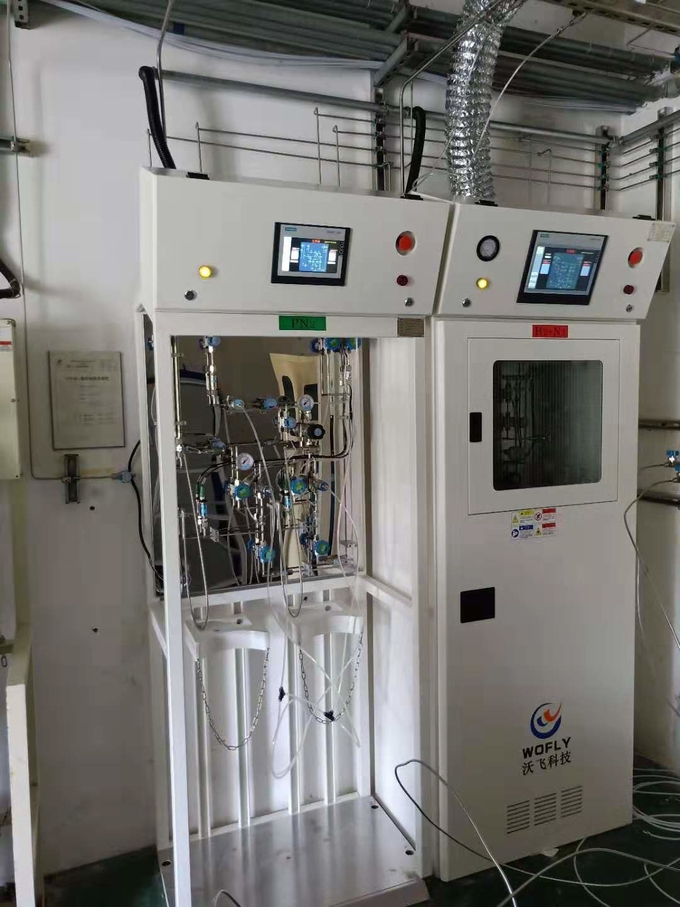

Ltd. is a high-tech enterprise specializing in gas application system engineering: ultra-high purity electronic special gas system, laboratory gas system, bulk gas (liquid) system, industrial centralized gas supply system, special process gas secondary piping system, chemical delivery system, pure water system, providing technical consultation, overall planning, system design, selected equipment, prefabricated components, project site installation and construction, overall system The project covers semiconductor, integrated circuit, flat panel display, optoelectronic, automotive, new energy, nano, optical fiber, microelectronics, petrochemical, biomedical, various laboratories, research institutes, standard testing and other high-tech industries to provide customers with a full set of high-purity media delivery system solutions, and gradually become a leading industry We have become a leading system supplier in the industry.
 |
 |
 |
 |
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
