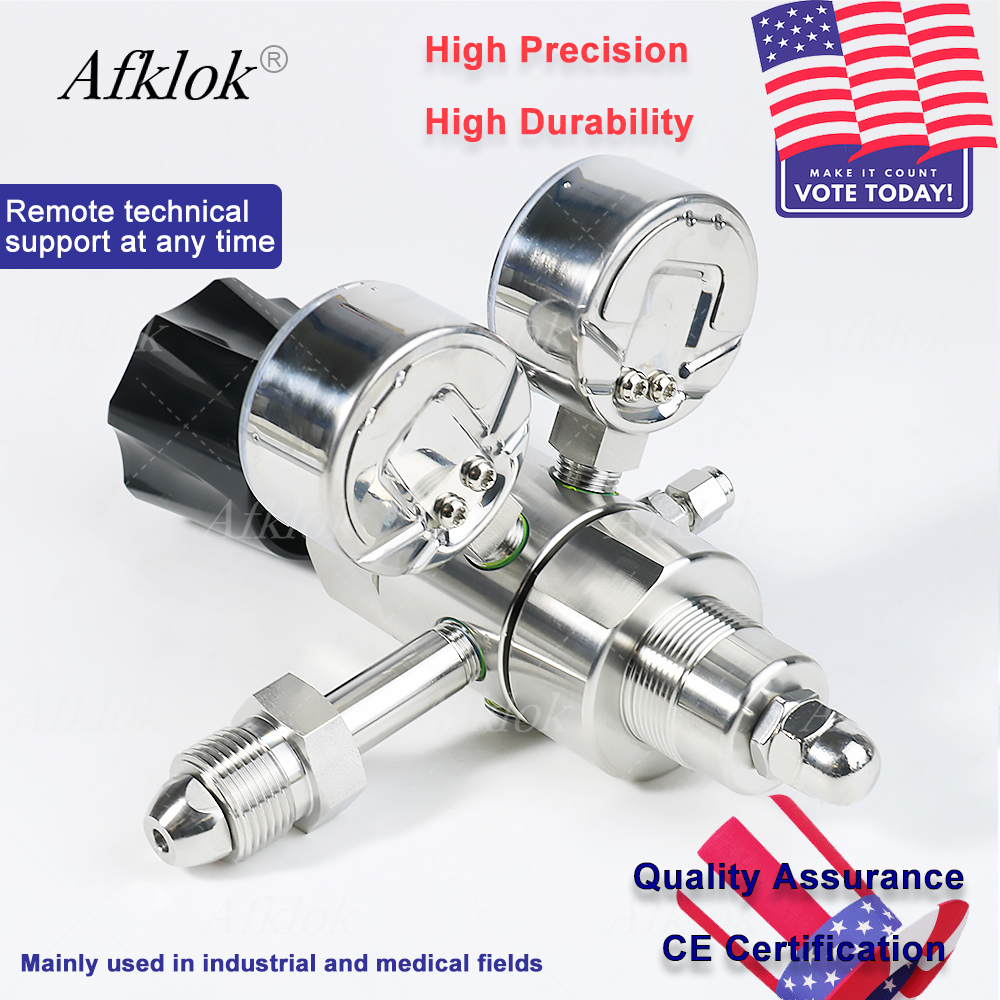

Dual Stage Pressure Regulator Superior Pressure Control in Harsh Environments

Technical Parameters
Max Inlet Pressure：3000psig, 4500psig
Outlet Pressure Range：0～30, 0～60, 0～100, 0～150, 0～250
Component Material：
Seat:PCTFE
Diaphragm:Hastelloy
Filter mesh:316L
Working Temperature：-40℃～+74℃(-40℉～+165℉)
Leak Rate (Helium)
Internal:≤1×10 -9 mbar l/s
External:≤1×10 -9 mbar l/s
Flow Coefficient (Cv)：0.05
Body Thread：
Inlet port:1/4NPT
Outlet port:1/4NPT
Pressure gauge port:1/4NPT
