Co2 Single Stage Nitrogen Pressure Regulator
Co2 Single Stage Nitrogen Pressure Regulator,
Nitrogen Pressure Regulator,

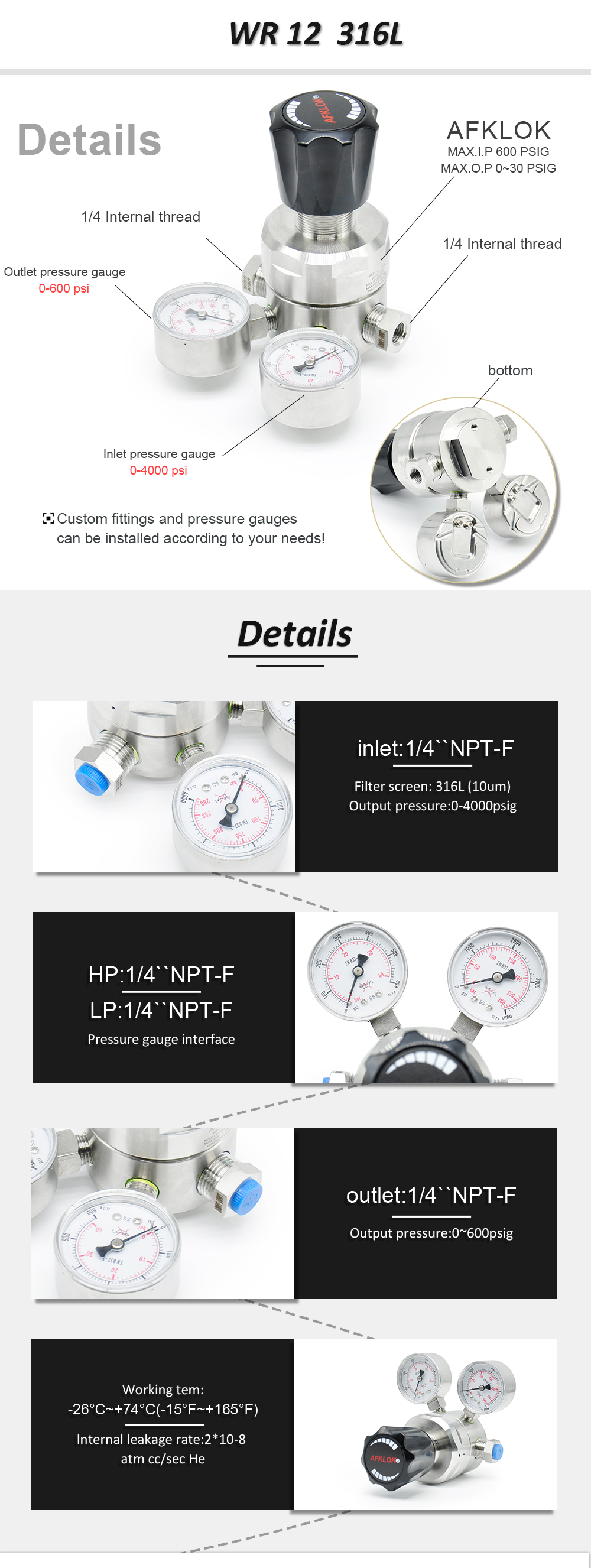

Features:
1.Single -stage pressure-reducing Structure.
2.Metal-to-metal diaphragm seal.
3.Body Thread : input & output connection 3/4″ NPT ( F )
4.Gauge and safety valve connection: 1/4″ NPT ( F )
5.Filter element installed internally
6.Panel mountable or wall mounting available
7.Easy to clean internal structure
Specification:
1.Max. Inlet Pressure: 500, 3000 psi
2.Outlet Pressure: 0~25, 0~50, 0~125 Psi
3.Proof Pressure: 1.5 times of maximum rated pressure
4.Working Temperature: -40°F-+165°F(-40°C-+74°C)
5.Leakage Rate: 2*10-8 atm cc/sec He
6.CV: 1.1
7.Body Thread: 1/4″ NPT ( F )
Application :
1.Laboratory
2.Gas purge system
3.Corroslve gas, special gas
4.Gas bus-bar
5.Testing equipment
6.Chemistry industry
Flow Data
Dimensions:
Ordering Information
|
R12 |
L |
B |
B |
D |
G |
00 |
02 |
P |
|
Item |
Body Material |
Body Hole |
Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
|
R12 |
L:316 |
A |
D:3000 psi |
H:0-125psig |
G:Mpa guage |
02:3/8″NPT(F) |
02:3/8″NPT(F) |
P:Panel mounting |
| B:Brass |
B |
F:500 psi |
I:0-100psig |
P:Psig/Bar Guage |
03:3/8″NPT(M) |
03:3/8″NPT(M) |
R:With relief valve |
|
| D |
K:0-50pisg |
W:No guage |
04:1/2″NPT(F) |
04:1/2″NPT(F) |
|
|||
| G |
L:0-25psig |
04:1/2″NPT(M) |
04:1/2″NPT(M) |
|||||
| J |
12:3/8″ OD |
12:3/8″ OD | ||||||
| M |
13:1/2″ OD |
13:1/2″ OD | ||||||
| Other type is available | Other type is available |

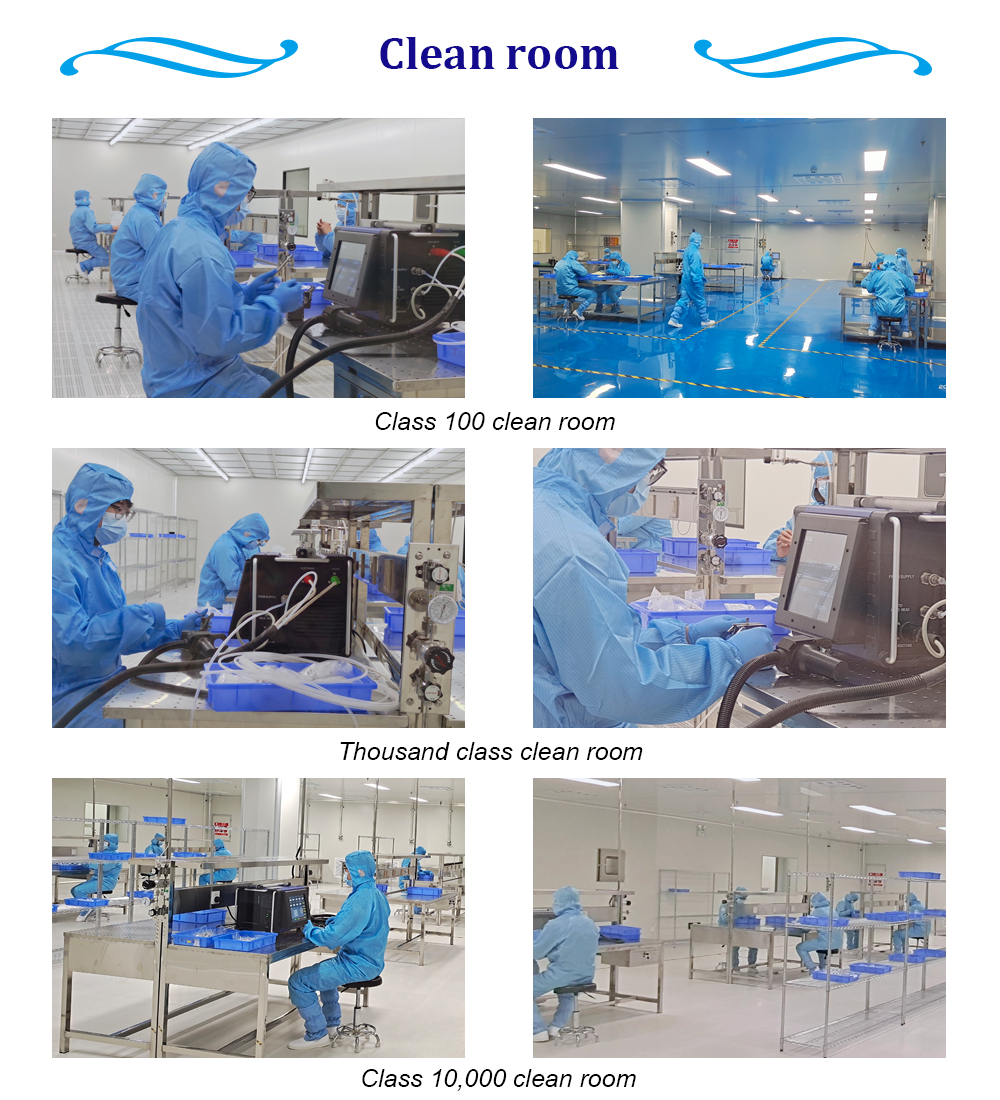

Clean room cleanliness four levels
Cleanliness refers to the total particles of dust particles with particle size ≥ 0.5um per liter of air. Our air cleanliness standards are divided into: 100, 1000, 10000, 100000.
At present, the first three levels of our company without clean rooms are used for processing and production at first, and the purity of products produced by different levels of clean rooms is not the same.
Our company will also use our own products in the production of pressure reducers
