Single Stage CO2 Argon 3/4 inch High Flow Regulator

Short Description:

Features

  • Single-stage diaphragm structure
  • Corrugated diaphragm design for excellent sensitivity
  • Suitable for corrosive and toxic gases
  • 20μm filter element installed at inlet
  • Oxygen environment options are available


Product Detail

Video

Parameters

Ordering Information

Applications

Project Case

Packing & Delivery

FAQ

Product Tags

Product Description of Gas Cylinder Pressure Regulator

Features

Single-stage diaphragm structure

Corrugated diaphragm design for excellent sensitivity

Suitable for corrosive and toxic gases

20μm filter element installed at inlet

Oxygen environment options are available

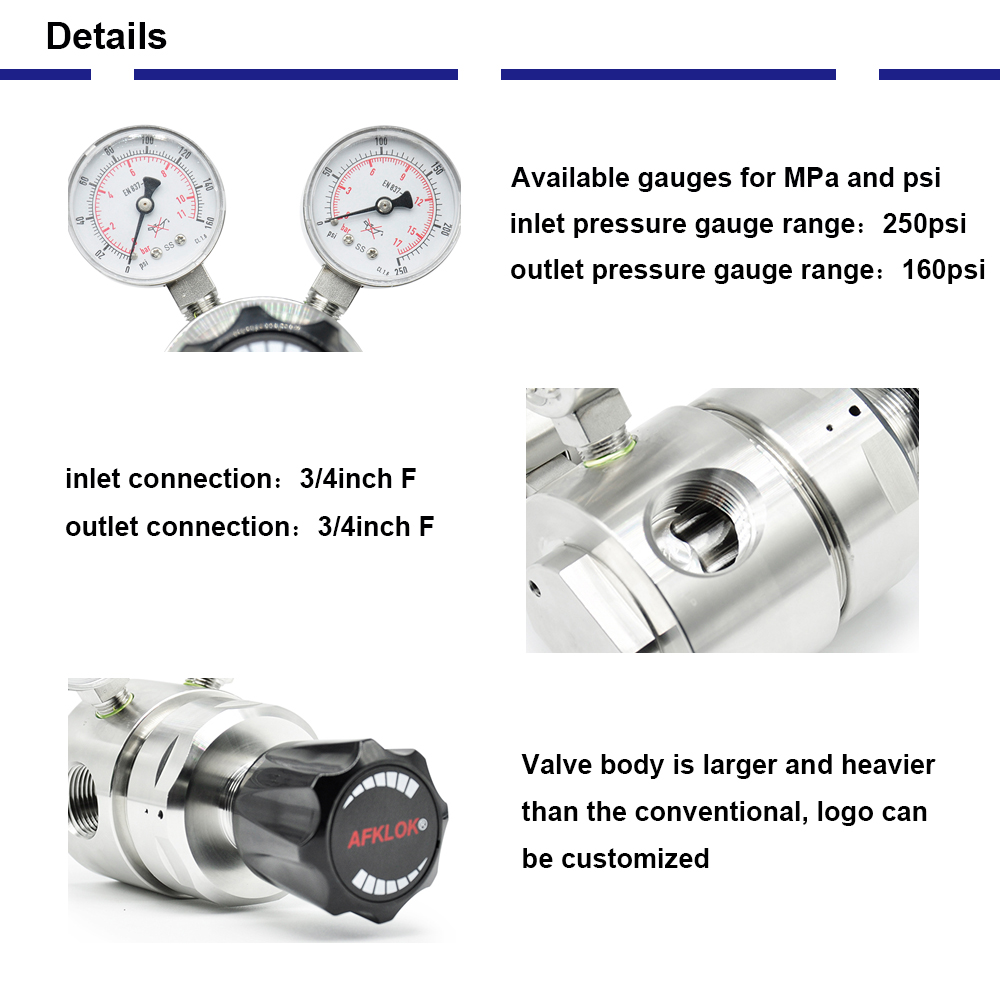

细节

  • Previous:
  • Next:

  • Specification of Gas Cylinder Pressure Regulator

    Technical Data

    Max inlet pressure:500psi

    Outlet pressure range:0~15,0~30,0~75,0~150

    Component material

    Seat:PCTFE

    Diaphragm:hastelloy

    Filter mesh:316L

    Working temperature:-40℃~+74℃(-40℉~+165℉)

    Leak rate(helium):

    Internal:bubble-tight

    External:≤1×10-9mbar l/s

     Flow coefficient(CV):1.8

    Body thread

    Inlet port:3/4NPT

    Outlet port:3/4NPT

    Pressure gauge port:1/4NPT

    dimension

    flow data

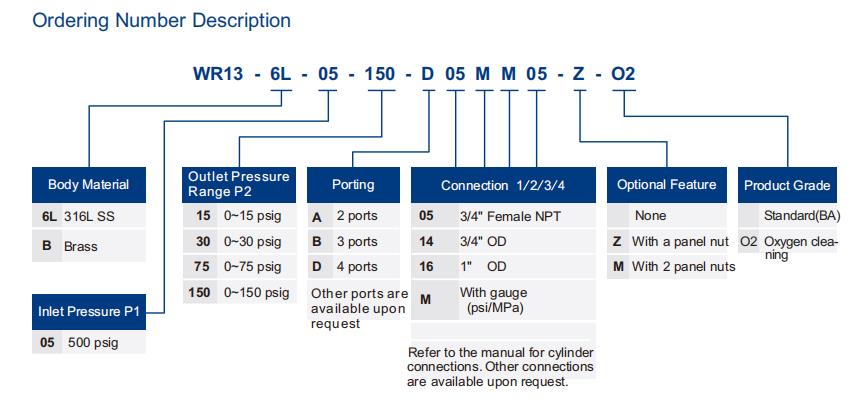

    R13-1



    H47cb423a8c864f21a4b792399267f1979

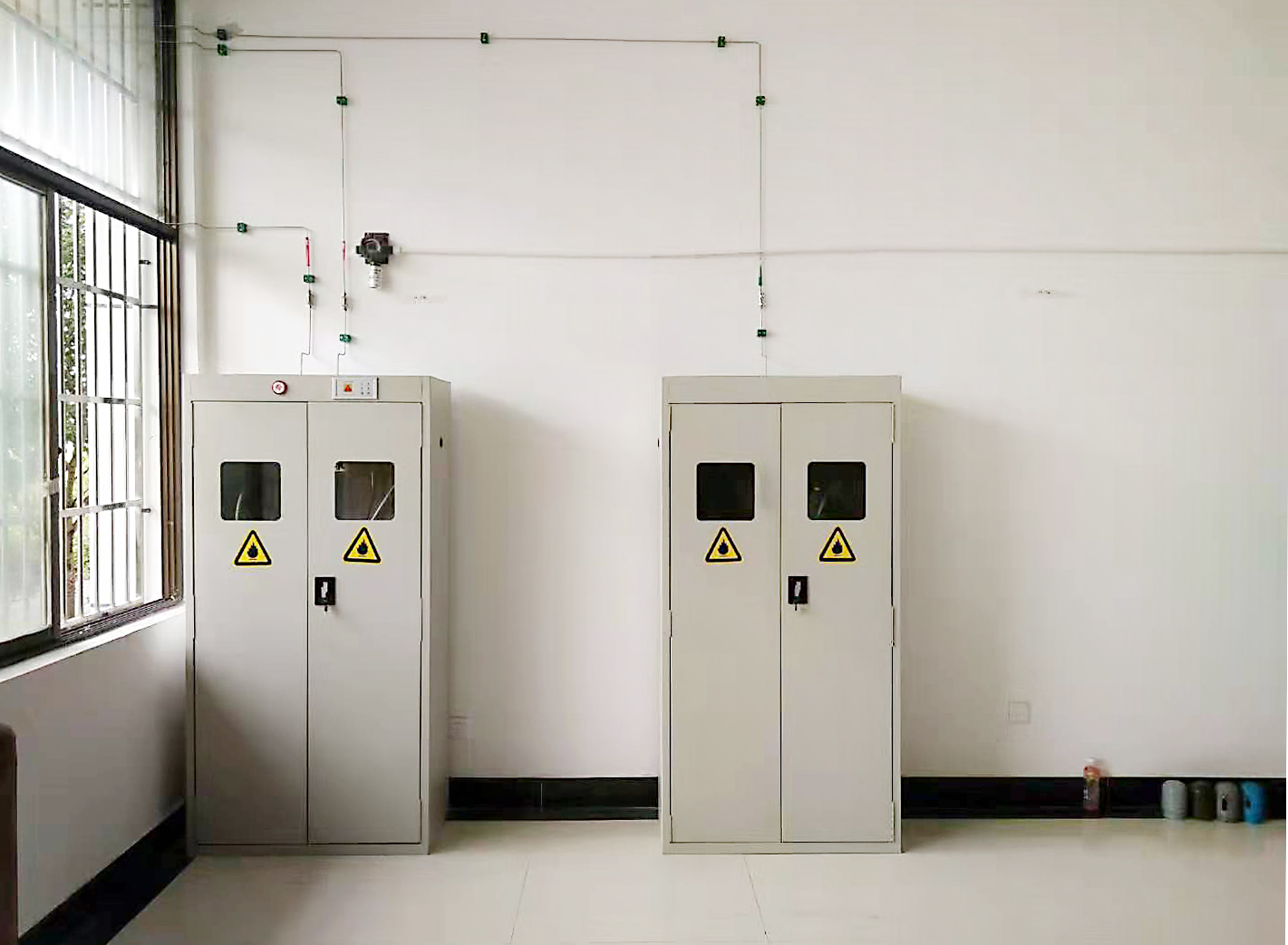

    Semiconductor industry
    Packaging is necessary for the manufacturing process of semiconductor electronic chips, and packaging technology is very critical for integrated circuits. In addition to advanced production equipment, production lines, stable and safe gas supply equipment are also essential. The packaging equipment in the semiconductor industry will use the gas after the matching. Only by ensuring the accuracy of the gas concentration and accuracy of the matching can the stability of the packaging quality be guaranteed, and continuous matching gas supply is also a necessary condition for packaging.

    Hfff0  Hf82

    包装图

    1. who are we?
    We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

    2.How do I order?

    You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours

    3.Do you have any certificates?

    We have CE certificate.

    4. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    5.what can you buy from us?
    pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve

    6. why should you buy from us not from other suppliers?
    We have a couple of years with professional engineers and dedicated technicians.can provide security products for you

    7. what services can we provide?
    Accepted Delivery Terms: FOB,CIF,EXW;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,Western Union;
    Language Spoken:English,Chinese
