Features
Two pieces cold drawn bar body
Body material in stainless steel SS316/316L
Max.allowed working pressure 1000psig(bar)
With Viton O-ring and PTFE packing
100% factory tested
Material of construction
Item | Part Description | Qty. | Material |
1 | Handle | 1 | Nylon |
2 | Locking Nut | 1 | SS304 |
3 | Spring Washer | 1 | SS304 |
4 | Washer | 2 | SS304 |
5 | Gland Packing | 2 | PTFE |
6 | Stem | 1 | SS316/316L |
7 | Body | 1 | SS316/316L |
8 | Ball | 1 | SS316/316L |
9 | Seat | 2 | PTFE |
10 | Body O-ring | 1 | Fluororubber |
11 | End Cap | 1 | SS316/316L |
Ordering Information
C- | 2 | BV- | S6- | 02 | A- | 1P | |
Classific Ation | Product Type | Valve Type | Material | Size(Fractional) | Size(Metric) | Connection Type | Max.Working Pressure |
C:Valve | 2:2PC | BV:2-Way Ball Valve | S6:SS316 | 04:1/4″ | 6:6mm | A:AFK Tube end | 1P:1000P SIG |
S6L:SS316L | 06:3/8″ | 8:8mm | MR:Male BSPT Thread | ||||
08:1/2″ | 10:10mm | MN:Male NPT Thread | |||||
012:3/4″ | 12:12mm | ||||||
18:18mm |

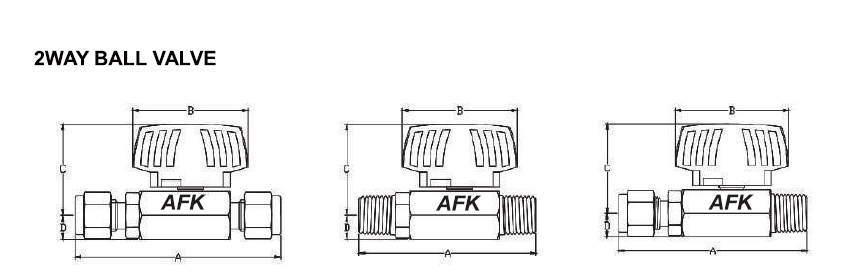

Type | Conn./Size | Orifice | Dimensions(mm) | |||||
Inlet/Outlet | mm | In. | A | B | C | D | ||
AFK Tube End | Fractional | 1/4″ | 5.0 | 0.19 | 72.9 | 41.0 | 31.4 | 8.5 |
3/8″ | 7.0 | 0.27 | 78.2 | 41.0 | 33.1 | 8.5 | ||
1/2″ | 9.0 | 0.35 | 90.5 | 50.0 | 41.3 | 13.5 | ||
3/4″ | 12.5 | 0.49 | 108.9 | 58.5 | 48.5 | 16.0 | ||
Metric | 6mm | 5.0 | 0.19 | 72.6 | 41.0 | 31.4 | 8.5 | |
8mm | 5.0 | 0.19 | 74.5 | 41.0 | 31.4 | 8.5 | ||
10mm | 7.0 | 0.27 | 78.5 | 41.0 | 33.1 | 9.5 | ||
12mm | 9.0 | 0.35 | 90.1 | 50.0 | 41.3 | 13.5 | ||
18mm | 12.5 | 0.49 | 108.9 | 58.5 | 48.5 | 16.0 | ||
Male BSPT Thread | Fractional | 1/4″ | 5.0 | 0.19 | 72.9 | 41.0 | 31.4 | 8.5 |
Male NPT Thread | Fractional | 1/4″ | 5.0 | 0.19 | 72.9 | 41.0 | 31.0 | 8.5 |
