China Wholesale Stainless Steel Ball Valve 3 Way Suppliers - AFK Stainless Steel 316 Instrument Low Pressure 2 Way Ball Valve 1000PSI – Wofly Detail:

Instrument Ball Valve

Features of Low Pressure Ball Valve 1000psi

1 Two pieces cold drawn bar body
2 Body material in stainless steel SS316/316L
3 Max.allowed working pressure 1000psig(bar)
4 With Viton O-ring and PTFE packing
5 100% factory tested

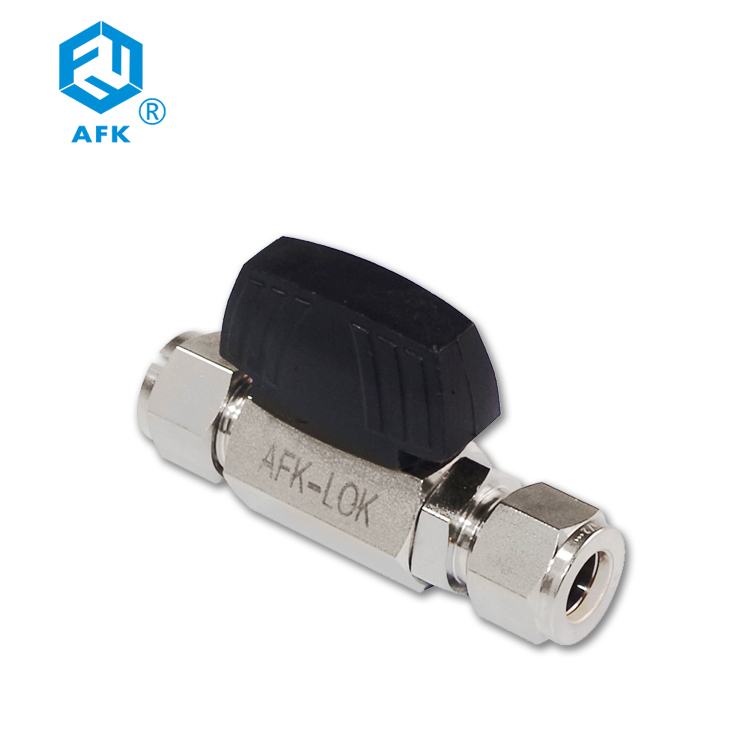

球阀2

Product Parameter

Material of Stainless Steel Ball Valve

Item Part Description Qty. Material
1 Handle 1 Nylon
2 Locking Nut 1 SS304
3 Spring Washer 1 SS304
4 Washer 2 SS304
5 Gland Packing 2 PTFE
6 Stem 1 SS316/316L
7 Body 1 SS316/316L
8 Ball 1 SS316/316L
9 Seat 2 PTFE
10 Body O-ring 1 Fluororubber
11 End Cap 1 SS316/316L



Ordering Information of AFK 2 Way Ball Valve

C- 2 BV- S6- 02   A- 1P
Classific Ation Product Type Valve Type Material Size(Fractional) Size(Metric) Connection Type Max.Working Pressure
C:Valve 2:2PC BV:2-Way Ball Valve S6:SS316 04:1/4″ 6:6mm A:AFK Tube end 1P:1000P SIG
      S6L:SS316L 06:3/8″ 8:8mm MR:Male BSPT Thread
        08:1/2″ 10:10mm MN:Male NPT Thread
        012:3/4″ 12:12mm
          18:18mm

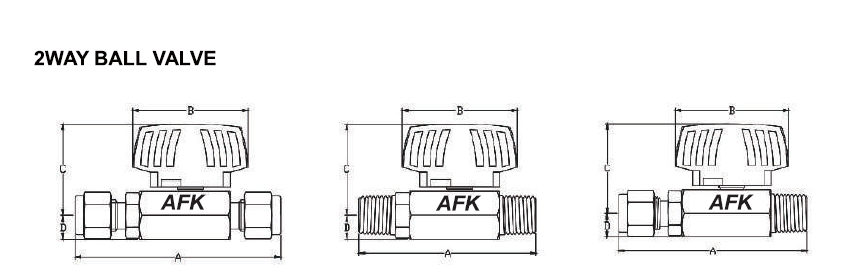

BALL VALVE (2)

Type Conn./Size Orifice Dimensions(mm)
Inlet/Outlet mm In. A B C D
AFK Tube End Fractional 1/4″ 5.0 0.19 72.9 41.0 31.4 8.5
3/8″ 7.0 0.27 78.2 41.0 33.1 8.5
1/2″ 9.0 0.35 90.5 50.0 41.3 13.5
3/4″ 12.5 0.49 108.9 58.5 48.5 16.0
Metric 6mm 5.0 0.19 72.6 41.0 31.4 8.5
8mm 5.0 0.19 74.5 41.0 31.4 8.5
10mm 7.0 0.27 78.5 41.0 33.1 9.5
12mm 9.0 0.35 90.1 50.0 41.3 13.5
18mm 12.5 0.49 108.9 58.5 48.5 16.0
Male BSPT Thread Fractional 1/4″ 5.0 0.19 72.9 41.0 31.4 8.5
Male NPT Thread Fractional 1/4″ 5.0 0.19 72.9 41.0 31.0 8.5

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
