High Pressure Stainless Steel Needle Valve

Features of stainless steel needle valve

1	A variety of connection ends:AFK tube end,Male/Female thread
2	Pressure range:6000psig
3	Four corner bar body
4	The body is stainless steel SS316 / 316L
5	The maximum working pressure is 6000psig (413bar) at 37 ℃ (100 ℉)
6	The standard material of filler is tfm1600, and graphite filler is available
7	100% factory test

needle valve 6000psi

Item	Part Description	Qty.	Material
1	Handle	1	Nylon
2	Handle set screw	2	Chrome-plated
3	Nut	1	SS316/316L
4	Packing nut	1	SS316/316L
5	Stem	1	SS316/316L
6	Stem	1	SS316/316L
7	Bulkhead	1	SS304
8	Packing	1	SS304
9	Packing	3	PTFE
10	Nut	1	SS304
11	Tip	1	SS304
12	Body	1	SS316/316L
13	Nut	2	SS316/316L
14	Front Ferrule	2	SS316/316L
15	Back Ferrule	2	SS316/316L

high pressure needle valve

Ordering Inforrmation of stainless steel needle valve

C	NV	53-	S6-	02		A	T	D6
Classifi-Cation	Produt Name	Valve Type	Material	Size(Fractional)	Size(Mrtric)	Connection Type	Packing	Orifice
C:Valve	NV:NEED	53:Square Bar Stock	S4:SS304	04:1/4″	3:3mm	A:AFK Tube End	T:TFM1600	D:4:4mm
	LE Valve	Inlinepattern
			S6:SS316	05:5/16″	6:6mm	MR:Male BSPT Thread	G:Graphite	D6:6mm
			S6L:SS316L	06:3/8″	8:8mm	FR:Female BSPT Thread		D8：8mm
				08:1/2″	10:10mm	MN:Male NPT Thread		D10:10mm
				10:5/8″	12:12mm	FN:Female NPT Thread		D12:12mm
				12:3/4″	15:15mm			D15:15mm
				16:1″	25:25mm

needle valve

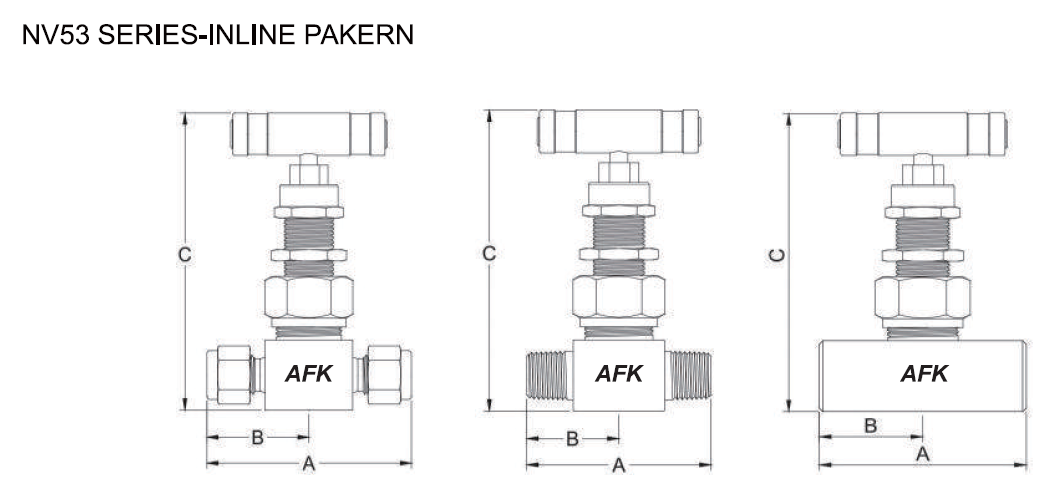

Type		Conn./Size	Orifice		Dimensions(mm)
Type		Inlet/Outlet	mm	In.	A	B	C
AFK Tube End	Fractional	1/4″	4	0.16	61.7	30.8	83.8
		3/8″	6	0.24	73.5	36.7	103
		1/2″	6	0.24	77.8	38.9	103
		3/4″	10	0.39	101.9	50.9	128.4
Male Thread	Fractional	1/8″	4	0.16	46	23	83.8
		1/4″	4	0.16	52	26	83.8
		3/8″	4	0.16	54	26	83.8
		1/4″	6	0.24	60	30	103
		3/8″	6	0.24	62	31	103
		1/2″	6	0.24	68	34	103
		1/2″	10	0.39	80	40	128.4
		3/4″	10	0.39	84	42	128.4
Female Thread	Fractional	1/8″	4	0.16	50	25	83.8
		1/4″	4	0.16	50	25	83.8
		1/4″	4	0.24	58	29	103
		3/8″	6	0.24	58	29	103
		1/2″	10	0.39	80	40	128.4
