China Wholesale Solenoid Valve 110v Pricelist - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar – Wofly

Short Description:

Features

Single-stage diaphragm structure

Corrugated diaphragm design for excellent sensitivity

Suitable for corrosive and toxic gases

20μm filter element installed at inlet

Oxygen environment options are available


Product Detail

Video

Parameters

Applications

Packing & Delivery

FAQ

Product Tags

Related Video

Feedback (2)

We pursue the administration tenet of "Quality is superior, Services is supreme, Standing is first", and will sincerely create and share success with all customers for Ferrules 4mm, Two Stage Regulator, Double Stage Pressure Regulator, Now we have experienced manufacturing facilities with extra than 100 employees. So we could guarantee short lead time and high quality assurance.
China Wholesale Solenoid Valve 110v Pricelist - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar – Wofly Detail:

2L 2 Way Steam Solenoid Valve

Safety of solenoid valve

Generally, the solenoid valve is not waterproof. When conditions do not permit, please select the waterproof type, which can be customized by the factory.

The maximum rated nominal pressure of the solenoid valve must exceed the maximum pressure in the pipeline, otherwise the service life will be shortened or other accidents will occur in production.

All stainless steel type shall be selected for corrosive liquid, and solenoid valves of other special materials shall be selected for strongly corrosive fluid.

Corresponding explosion-proof products must be selected for explosive environment.

Characteristics of 2L Solenoid Valve
The automatic compensation seal of the top structure is adopted, which greatly prolongs the service life of the valve. The balance design of piston clearance greatly enhances the reliable use of the valve at higher temperatures.

2L series piston type steam solenoid valve
structure drawing

Product Parameter

Technical parameters

Maximum working pressure

1.6MPA

Operating pressure range

0.2-1.6MPA

Media

Liquid gas steam<20 cst

Media Temperature

<180 degree

Operation

Pilot type

Voltage

AC:380V, AC220V, AC36V/50hz

Insulation grade

Bclass

The power supply range

-15%–+10%

Power

26W

Respone time

open <2 second close <3 second

Install way

Media flow direction and the on the arrow consistent. The coil vertically upward ,the working media clean and no particle.



Model number

A

B

c

D

E

F

H

Pipe Size

Material(mm)

2L-15

82

/

/

70

/

/

/

145

G1/2″

Brass

2L-20

82

/

/

70

/

/

/

147

G3/4″

2L-25

91

/

/

70

/

/

/

158

G1″

2L-32

112

/

/

73

/

/

/

178

G11/4″

2L-40

112

/

/

71

/

/

/

175

G11/2″

2L-50

118

/

/

91

/

/

/

190

G2″

2L-25F

110

12

2

115

70

4-10

65

195

DN25

2L-32F

138

14

2

133

100

4-18

78

215

DN32

2L-40F

139

14

2

150

110

4-18

89

225

DN40

2L-50F

148

14

2

163

125

4-18

90

235

DN50




Product detail pictures:

China Wholesale Solenoid Valve 110v Pricelist - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Pricelist - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Pricelist - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Pricelist - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Pricelist - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Pricelist - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures


Related Product Guide:

To be able to give you benefit and enlarge our business, we also have inspectors in QC Team and assure you our greatest service and products for China Wholesale Solenoid Valve 110v Pricelist - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar – Wofly , The product will supply to all over the world, such as: Kazakhstan, Mombasa, Portugal, To keep the leading position in our industry, we never stop challenging the limitation in all aspects to create the ideal products. In his way, We can enrich our life style and promote a better living environment for the global community.

Specification of Gas Cylinder Pressure Regulator

Technical Data

Max inlet pressure:500psi

Outlet pressure range:0~15,0~30,0~75,0~150

Component material:

   Seat:PCTFE

   Diaphragm:hastelloy

   Filter mesh:316L

Working temperature:-40℃~+74℃(-40℉~+165℉)

Leak rate(helium):

   Internal:bubble-tight

   External:≤1×10-9mbar l/s

   Flow coefficient(CV):1.8

Body thread:

   Inlet port:3/4NPT

   Outlet port:3/4NPT

   Pressure gauge port:1/4NPT

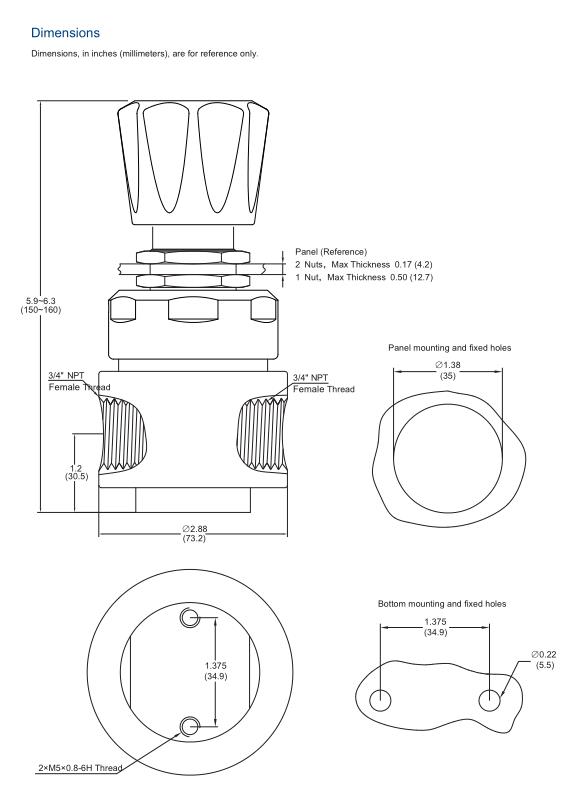

dimension

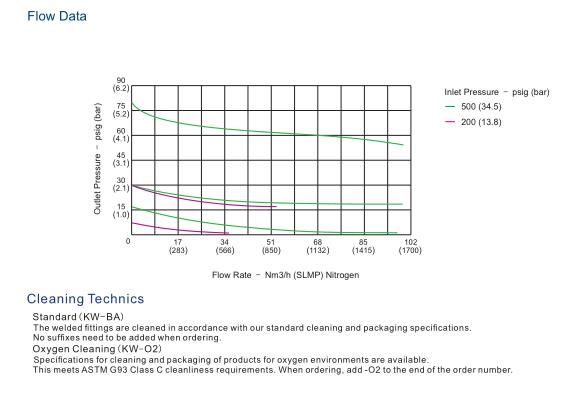

flow data

H47cb423a8c864f21a4b792399267f1979

包装图

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2.How do I order?

You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours

3.Do you have any certificates?

We have CE certificate.

4. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

5.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve

6. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you

7. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
