China Wholesale Solenoid Valve 110v Factory - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar – Wofly Detail:

2L 2 Way Steam Solenoid Valve

Safety of solenoid valve

Generally, the solenoid valve is not waterproof. When conditions do not permit, please select the waterproof type, which can be customized by the factory.

The maximum rated nominal pressure of the solenoid valve must exceed the maximum pressure in the pipeline, otherwise the service life will be shortened or other accidents will occur in production.

All stainless steel type shall be selected for corrosive liquid, and solenoid valves of other special materials shall be selected for strongly corrosive fluid.

Corresponding explosion-proof products must be selected for explosive environment.

Characteristics of 2L Solenoid Valve
The automatic compensation seal of the top structure is adopted, which greatly prolongs the service life of the valve. The balance design of piston clearance greatly enhances the reliable use of the valve at higher temperatures.

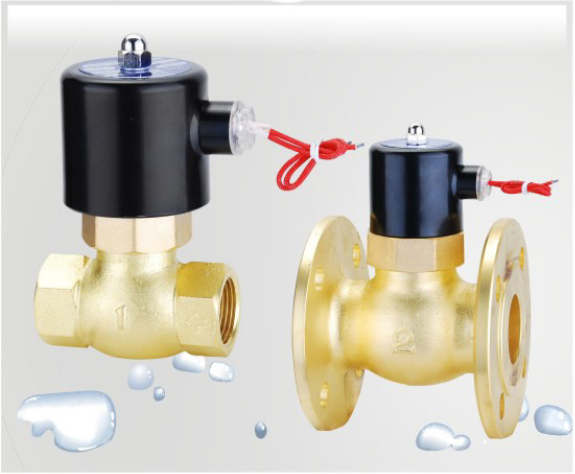

2L series piston type steam solenoid valve

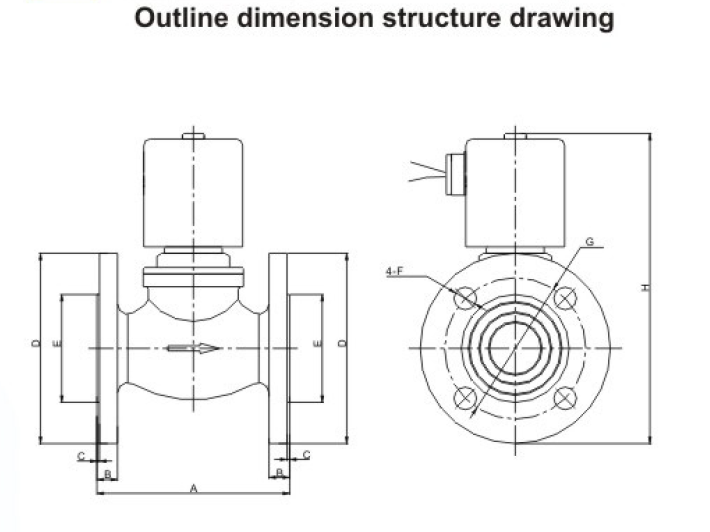

structure drawing

Product Parameter

Technical parameters

Maximum working pressure

1.6MPA

Operating pressure range

0.2-1.6MPA

Media

Liquid gas steam<20 cst

Media Temperature

<180 degree

Operation

Pilot type

Voltage

AC:380V, AC220V, AC36V/50hz

Insulation grade

Bclass

The power supply range

-15%–+10%

Power

26W

Respone time

open <2 second close <3 second

Install way

Media flow direction and the on the arrow consistent. The coil vertically upward ,the working media clean and no particle.



Model number

A

B

c

D

E

F

H

Pipe Size

Material(mm)

2L-15

82

/

/

70

/

/

/

145

G1/2″

Brass

2L-20

82

/

/

70

/

/

/

147

G3/4″

2L-25

91

/

/

70

/

/

/

158

G1″

2L-32

112

/

/

73

/

/

/

178

G11/4″

2L-40

112

/

/

71

/

/

/

175

G11/2″

2L-50

118

/

/

91

/

/

/

190

G2″

2L-25F

110

12

2

115

70

4-10

65

195

DN25

2L-32F

138

14

2

133

100

4-18

78

215

DN32

2L-40F

139

14

2

150

110

4-18

89

225

DN40

2L-50F

148

14

2

163

125

4-18

90

235

DN50




Product detail pictures:

China Wholesale Solenoid Valve 110v Factory - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Factory - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Factory - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Factory - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Factory - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures

China Wholesale Solenoid Valve 110v Factory - 2 Way 2 Position Pilot Type Steam Solenoid Valve 220vac 16bar  – Wofly detail pictures
