R41 Pressure Regulator Valve Body
R41 Serie stainless steel pressure reducers, piston pressure reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.
Function
1. The gas stored in the cylinder is depressurized by the pressure reducer to reach the required working pressure.
2. The high and low pressure gauges of the pressure reducer indicate the high pressure in the bottle and the working pressure after decompression.
3. The pressure of the gas in the pressure stabilizing cylinder decreases gradually with the consumption of the gas, while the working pressure of the gas is required to be relatively stable in gas welding and gas cutting. The stainless steel pressure reducer can ensure the stable output of gas working pressure, so that the working pressure delivered from the low-pressure chamber will not change with the change of high-pressure gas pressure in the cylinder.
Product Parameter
Technical Parameter of New R41 Valve Body Pressure Regulator
| Maximum Inlet Pressure | 3000,6000psig | ||||||||||||||||||||||||
| Outlet Pressure Ranges | 0~250, 0~500, 0~1500,0~3000psig | ||||||||||||||||||||||||
| Safety test pressure | 1.5 times maximum inlet pressure | ||||||||||||||||||||||||
| Operating Temperature | -40°F to +165°F / -40°c to 74°c | ||||||||||||||||||||||||
| Leak rate | foam test | ||||||||||||||||||||||||
| Cv value | 0.06 | ||||||||||||||||||||||||
Material of New R41 Valve Body Pressure Regulator
| 1 | Body | 316L.Brass | |
| 2 | Bonnet | 316L. Brass | |
| 3 | Diafragm | 316L | |
| 4 | Strainer | 316L(10 μm) | |
| 5 | Seat | PCTFE | |
| 6 | Spring | 316L | |
| 7 | Plunger valve core | 316L | |
| 8 | o-ring | viton | |
DESIGN FEATURES
| 1 | Single-stage reduce structure |
| 2 | Use hard-seal between body and Diaphragm |
| 3 | Body Thread:1/4″ NPT (F) |
| 4 | Filter mesh inside |
| 5 | Easy to sweep inside body |
| 6 | Panel mountable or wall mounted |

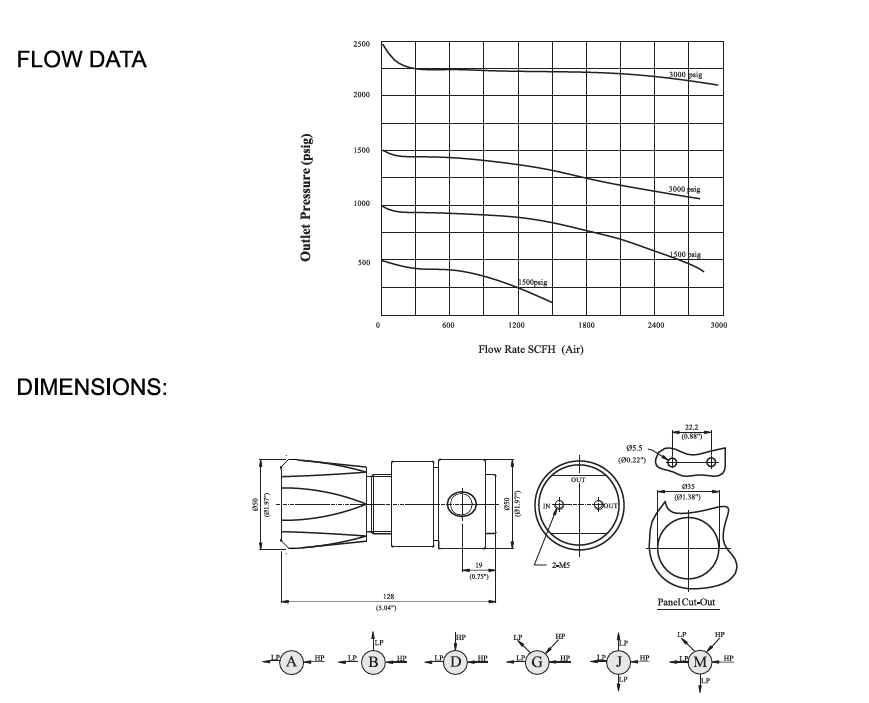

Product selection of New R41 Valve Body Pressure Regulator
| R41 | L | B | B | D | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet Pressure | Outlet Pressure | Pressure Gauge | Inlet Size | Outlet Size | Options |
| R41 | L:316 | A | B:6000psig | D:0~3000psig | G:MPa gauge | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000psig | E:0~1500psig | P:Psig/bar gauge | 00:1/4″NPT(M) | 00:1/4″NPT(M) | ||
| D | F:0~500psig | W:No gauge | 10:1/8″OD | 10:1/8″OD | ||||
| G | G:0~250psig | 11:1/4″OD | 11:1/4″OD | |||||
| J | 12:3/8″OD | 12:3/8″OD | ||||||
| M | 15:6mm”OD | 15:6mm”OD | ||||||
| 16:8mm”OD | 16:8mm”OD | |||||||
| Other type is available | Other type is available |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese

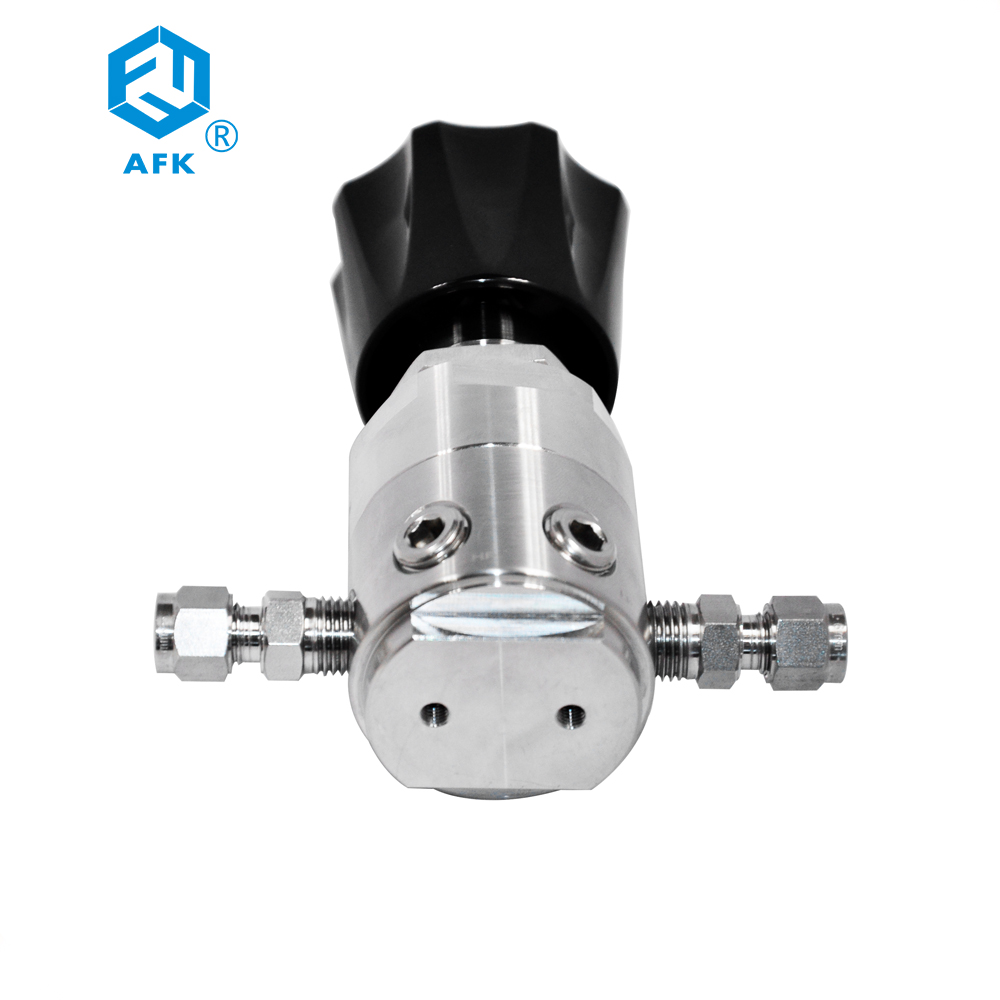

Product detail pictures:
