China Wholesale Oxygen Regulator Gauges Quotes - High Pressure 316 Stainless Steel Cylinder Dual Stage Pressure Regulator 200bar CGA320 CGA540 CGA580 – Wofly Detail:

R31 Stainless Steel Cylinder Dual Stage Pressure Regulator

Characteristics of pressure reducer
The following factors need to be paid attention to when selecting the pressure reducer. Follow up the requirements of your specific use, and use this catalog to select the pressure reducer consistent with your parameters. Our standard is just the beginning of our service. We can modify or design control equipment to solve any problems in application.

R31 series stainless steel pressure reducers，double-stage diaphragm pressure reducing construction，stable output pressure，applied to high pure gas，standard gas，corrosive gas and so on.

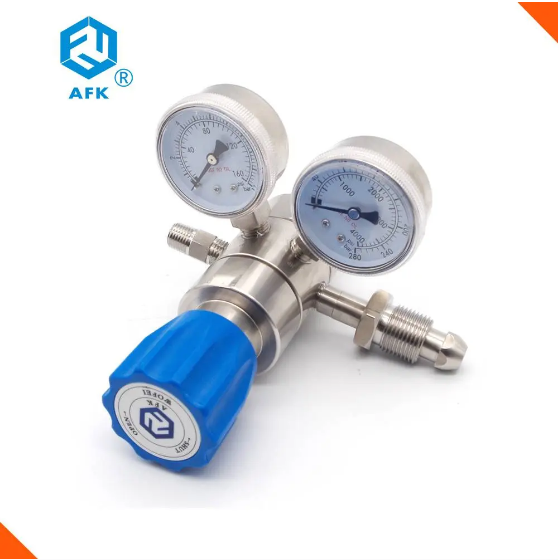

R31 pressure regulator

Product Parameter

Specification of R31 Stainless Steel Pressure Regulator

1	Maximum Inlet Pressure	500,3000psig
2	Outlet Pressure Ranges	0~25, 0~50, 0~50,0~250,0~500psig
3	Safety test pressure	1.5 times maximum inlet pressure
4	Operating Temperature	-40°F to +165°F / -40°c to 74°c
5	Leakage Rate Against Atmosphere	2*10-8atm cc/sec he
6	Cv value	0.06

Material of Nitrogen Regulator

1	Maximum Inlet Pressure	500,3000psig
2	Outlet Pressure Ranges	0~25, 0~50, 0~50,0~250,0~500psig
3	Safety test pressure	1.5 times maximum inlet pressure
4	Operating Temperature	-40°F to +165°F / -40°c to 74°c
5	Leakage Rate Against Atmosphere	2*10-8atm cc/sec he
6	Cv value	0.06

Design Feature

1	Five hole designof body
2	Double-stage pressure-reducing structure
3	Metal-to-metal diaphragm seal
4	Body thread：Input and output connection 1/4″NPT（F）
5	Easy to clean internal structure
6	Fitter element installed internally
7	Panel mounting and wall mounting available
8	Optional outlet：Needle valve，diaphragm valve

Typical Applications

1	Labotary
2	Gas Chromatography
3	Gas laser
4	Gas bus-bar
5	Petro-chemical industry
6	Test equipment

flow and dimension

Ordering Information

R31	L	B	G	G	00	00	02	P
Item	Body Material	Body Hole	Inlet Pressure	Outlet Pressure	Pressure Guage	Inlet size	Outlet size	Mark
R31	L:316	M	G:3000 psi	G:0-250psig	G:Mpa guage	00:1/4 “NPT(F)	00:1/4 “NPT(F)	P:Panel mounting
	B:Brass	Q	F:500 psi	I:0-100psig	P:Psig/Bar Guage	00:1/4 “NPT(F)	00:1/4 “NPT(F)	R:With relief valve
				k:0-50psig	W:No guage	23:CGA330	10:1/8″ OD	N:With Needle valve
				L:0-25psig		24:CGA350	11:1/4″ OD	D:With diaphragm valve
				Q:30″Hg Vac-30psig		27:CGA580	12:3/8″ OD
				S:30″Hg Vac-60psig		28:CGA660	15:6mm OD
				T:30″Hg Vac-100psig		30:CGA590	16:8mm OD
				U:30″Hg Vac-200psig		52:G5/8-RH(F)	74:M8X1-RH(M)
						63:W21.8-14(F)
						64:W21.8-14LF(F)
