China Wholesale Gas Pressure Regulator Pricelist - R52 250psi Stainless Steel Nitrogen Gas Pressure Regulator – Wofly Detail:

R52 pressure regulator

Features of pressure reducer
The following factors need to be paid attention to when selecting the pressure reducer. Follow up your specific use requirements and use this catalog to select the pressure reducer that matches your parameters. Our standard products are just the beginning of our service. We can modify or design the equipment to solve any problems in the application. For details, please contact our AFK foreign trade product sales representative.

250psi pressure regulator

Product parameter

Technical Data

Max inlet pressure 500, 1500, 3000 psig
Outlet pressure 0~15, 0~25, 0~50, 0~100, 0~250 psig
Proof pressure 1.5 times of maximum rated pressure
Working temperature -20°F-+150°F(29°C-+66°C)
Leakage rate 2*10-8 atm cc/sec He
Cv 0.15
Body Thread 1/4″ NPT ( F )

Material List

Body SS316L, Brass
Roof SS316L, Brass
Diaphragm SS316L
Filter mesh 316L (10μm)
Valve seat PCTFE, PTFE, Vaspel
Spring loaded SS316L
Stem SS316L

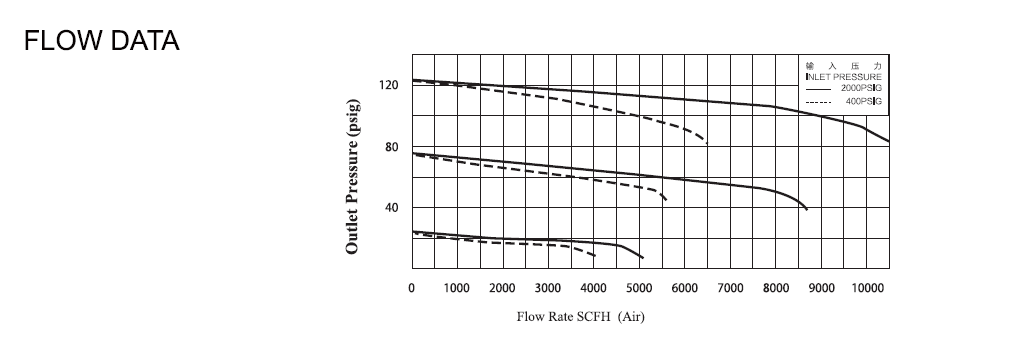

pressure regulator flow
pressure regulator

Ordeering Information

R52 L B G G 00 00 02 P
Item Body Material Body Hole Inlet Pressure Outlet
Pressure
Pressure Guage Inlet
size
Outlet
size
Mark
R52 L:316 A G:3000 psi G:0-250psig G:Mpa guage 00:1/4 “NPT(F) 00:1/4 “NPT(F) P:Panel mounting
  B:Brass B M:1500 psi I:0-100psig P:Psig/Bar Guage 00:1/4 “NPT(F) 00:1/4 “NPT(F) R:With relief valve
    D F:500 psi k:0-50psig W:No guage 23:CGA330 10:1/8″ OD N:With Needle valve
    G   L:0-25psig   24:CGA350 11:1/4″ OD D:With diaphragm valve
    J   Q:30″Hg Vac-30psig   27:CGA580 12:3/8″ OD
    M   S:30″Hg Vac-60psig   28:CGA660 15:6mm OD
        T:30″Hg Vac-100psig   30:CGA590 16:8mm OD
        U:30″Hg Vac-200psig   52:G5/8-RH(F) 74:M8X1-RH(M)
            63:W21.8-14RH(F) Other type is available
            64:W21.8-14LH(F)
            Other type is available
