China Wholesale Gas Ball Valve Manufacturers - 1/8 inch to 3/4 inch Mini SS Compression Three Way Ball Valve 3000psi – Wofly Detail:

3 Way Ball Valve

3 Way Ball Valve

Type

Conn./Size

Orifice

Dimensions (mm)



Inlet/outlet

Mm

In.

A

B

C

D

E

F

Panel Hole Size

Max Panel Thickness

3 Way AFK TUBE END



Fractional

1/8″

5.0

0.19

65.1

32.1

35.0

39.6

55

34

14.0

6.0

1/4″

5.0

0.19

67.7

34.0

35.0

41.5

55

34

14.0

6.0

3/8″

5.0

0.19

70.3

35.9

35.0

43.4

55

34

14.0

6.0

1/2″

10.0

0.39

87.8

41.9

42.3

53.4

75

45

15.8

6.0

3/4″

10.0

0.39

83.8

42.9

42.3

54.4

75

45

15.8

6.0

Metric

6mm

5.0

0.19

67.6

33.8

35.0

41.3

55

34

14.0

6.0

8mm

5.0

0.19

70.0

35.0

35.0

42.5

55

34

14.0

6.0

10mm

5.0

0.39

79.8

39.9

42.3

51.4

75

45

15.5

6.0

12mm

10.0

0.39

83.4

41.7

42.3

53.2

75

45

15.8

6.0

14mm

10.0

0.39

84.8

42.4

42.3

53.9

75

45

15.8

6.0

18mm

10.0

0.39

84.8

42.4

42.3

53.9

75

45

15.8

6.0

3 Way MALE THREAD

Fractional

1/8″

5.0

0.19

52.4

26.2

35.0

33.7

55

34

14.0

6.0

1/4″

5.0

0.19

58.4

29.2

35.0

36.7

55

34

14.0

6.0

3/8″

5.0

0.19

60.4

30.2

35.0

37.7

55

34

14.0

6.0

1/2″

10.0

0.39

74.0

37.0

42.3

48.5

75

45

15.8

6.0

3 Way MALE THREAD

Fractional

1/8″

5.0

0.19

45.4

22.7

35.0

30.2

55

34

14.0

6.0

1/4″

5.0

0.19

52.4

26.0

35.0

33.7

55

34

14.0

6.0

3/8″

10.0

0.39

62.0

31.0

42.3

42.5

75

45

15.8

6.0

1/2″

10.0

0.39

64.0

32.0

42.3

43.5

75

45

15.8

6.0

 All Dimensions Are In Millimeters Unless Specific.
Dimensions Shown Are For Reference Only And Subject To Change.
For Other Connections . Please Contact With Afk Sales Representative.

3pc Ball Valve-6000psig Material Of Construction

Item

Part Description

Qty.

Material

1

Handle

1

Nylon

2

Handle Set Screw

1

Chrome-plated Steel

3

Stem

1

SS316/316L

4

Packing Bolt

1

SS316/316L

5

Gland Packing

2

TFM1600

6

Stem O-ring

1

Viton

7

Panel Nut

1

SS304

8

Body

1

SS316/316L

9

Ball

1

SS316/316L

10

Seat

2

PEEK

11

Spacer bracket

2

SS316/316L

12

Body O-ring

2

Viton

13

Body O-ring

2

Viton

14

End Cap

2

SS316/316L

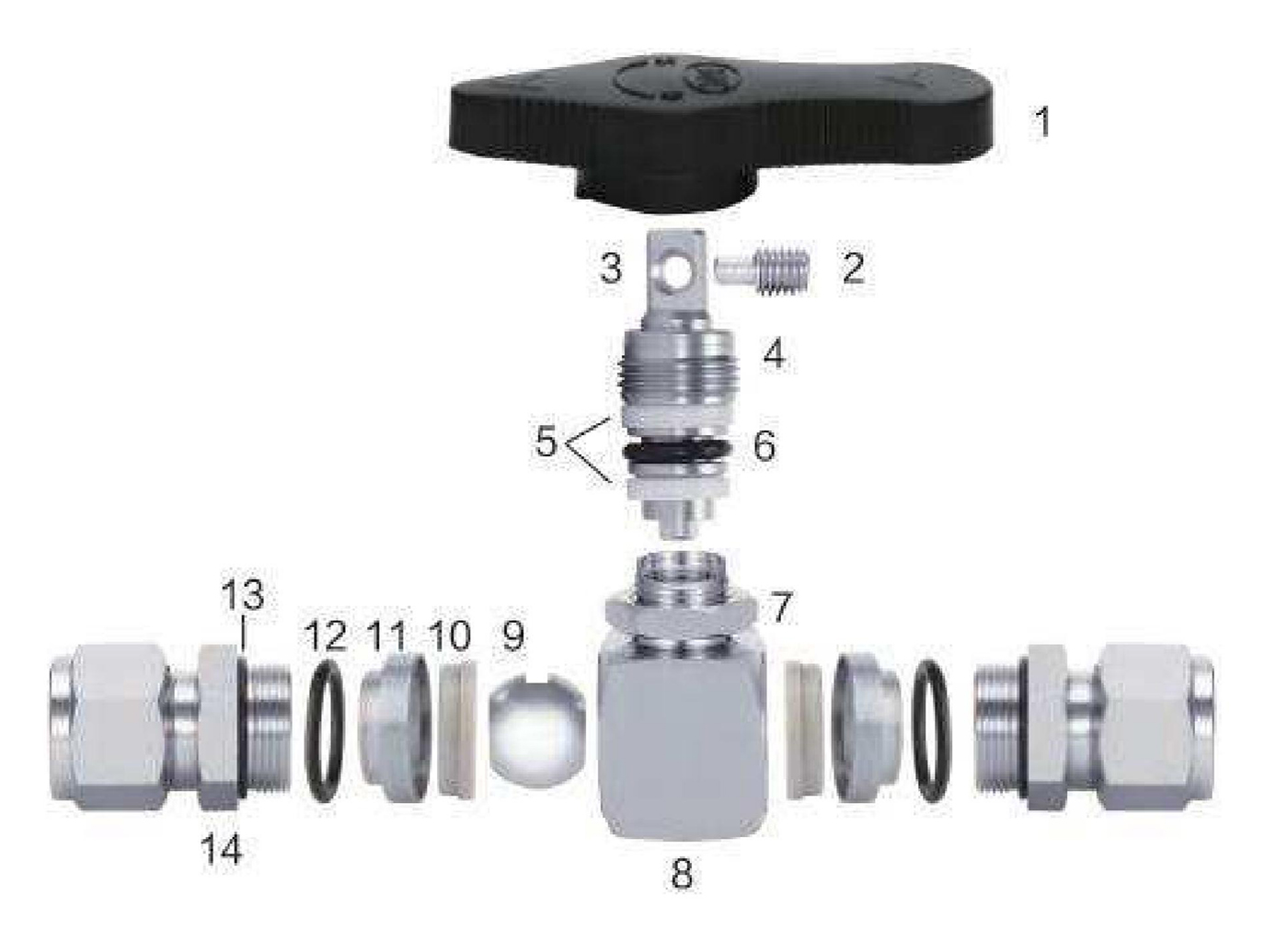

3pc Ball Valve-6000psig Material Of Construction B

 C- 3

BV-

S6-

02

A-

6P

CLASSIFICATION PRODUCT TYPE VALVE TYPE MATERIAL SIZE(FRACTIONAL)

SIZE (MRTRIC)

CONNECTION TYPE MAX.WORKING

PRESSURE

C:VALVE 3:3PC BV:2-WAY BALL VAVE S6 :SS316 02 :1/8″ 6 : 6mm A:AFKTUBE END

6P:6000PSIG

 BVT:3-WAY BALL VAVE S6 L: SS316L 04 :1/4″ 8 : 8mm MR :MALE BSPT THREAD

06 :3/8″

10 : 0mm FR :FEMALE BSPT THREAD

08 :1/2″

12 :12mm MN :MALE NPT THREAD
14:14mm FN :FEMALE NPT THREAD
