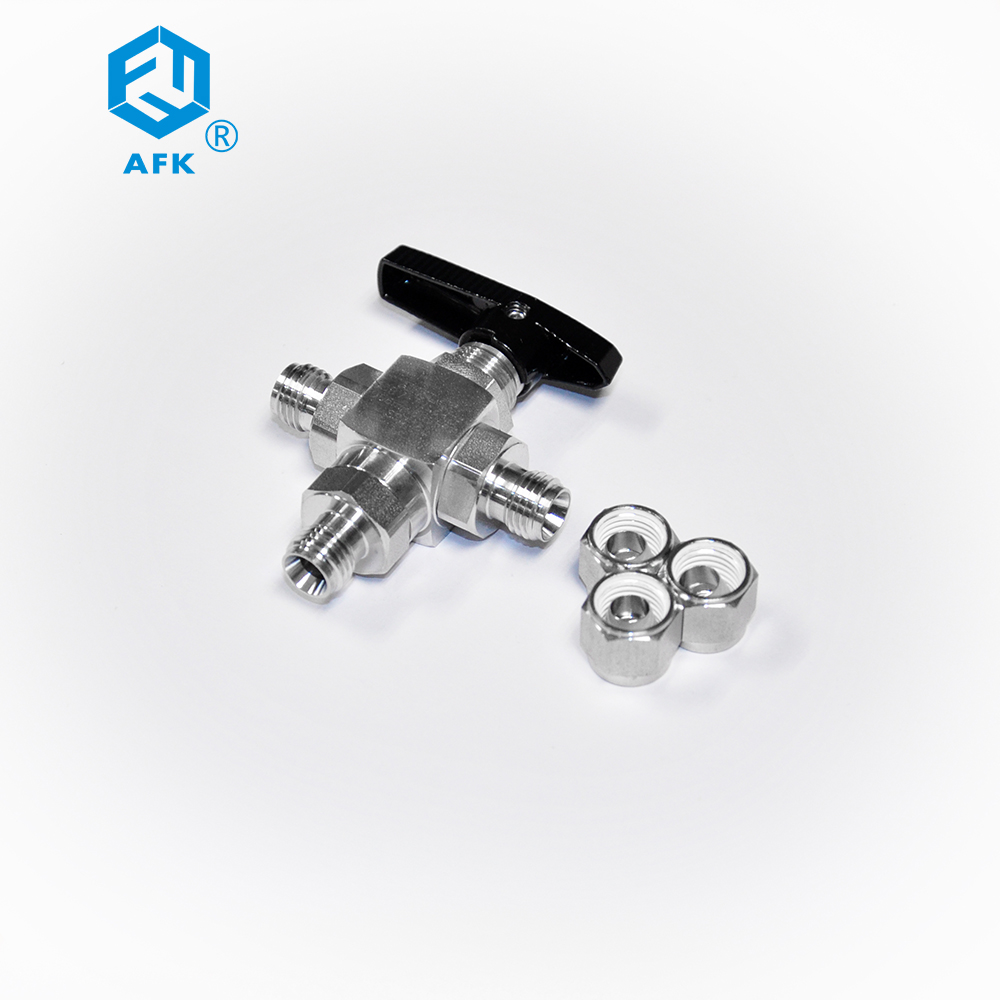

3 Way Stainless Steel Ball Valve

1.Switch, switching, cross conversion flow path
2.Working pressure up to 3000psig (206bar)
3.Temperature range from – 53 to 148 ° C (- 65 to 300 ° f)
4.Environmental and heating process applications
5.1 / 8 to 3 / 4 in And 6 to 12mm termination

Features of 3 Way Ball Valve

1 On/off service ball valve with 2 way pattern
2 Diverter service ball valve with 3 way pattern
3 Body material in stainless steel SS316/316L
4 Max.allowed working pressure:50kg,3000psig,6000psig
5 With Fluororubber O-ring
6 100% factory tested



4

Product Parameter–2 Way Ball Valve

Ordering Information–Ball Valve Stainless Steel 316

C- 3 BV- S6- 02 A- 3P
Classification product name Valve Type Material Size(Fractional) Size(Metric) Connection Type Max.Working Pressure
C:Valve 3:3pc BV:2-Way Ball Valve S6:SS316 02:1/8″ 6:6mm A:AFK Tube End 3P:3000PSIG
BV:3-Way Ball Valve S6L:SS316L 04:1/4″ 8:8mm MR:Male BSPT Thread
06:3/8″ 10:10mm FR:Female BSPT Thread
08:1/2″ 12:12mm MN:Male NPT Thread
012:3/4″ 14:14mm FN:Female NPT Thread
16:16mm
18:18mm

3-Piece Ball Valve – 6000Psig

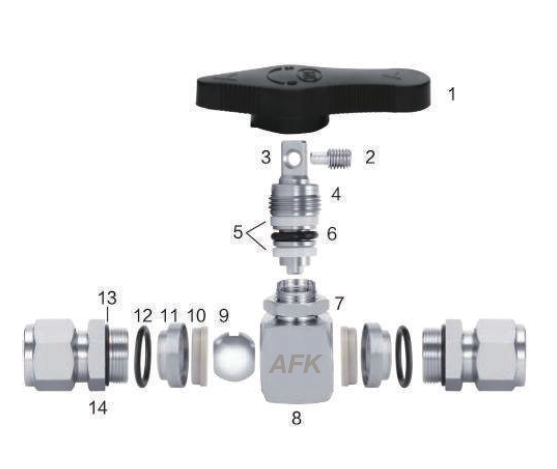

Material Structure

Item Part Name Quantity Texture of Material
1 Handle 1 Nylon
2 Handle Set Screw 1 Chrome-Plated Steel
3 Stem 1 SS316/316L
4 Packing Bolt 1 SS316/316L
5 Gland Packing 2 TFM1600
6 Stem O-ring 1 Fluororubber
7 Panel Nut 1 SS304
8 Body 1 SS316/316L
9 Ball 1 SS316/316L
10 Seat 2 PEEK
11 spacer bracket 2 SS316/316L
12 Body O-ring 2 Fluororubber
13 Body O-ring 2 Fluororubber
14 End Cap 2 SS316/316L





BALL VALVE 6000PSI

Ordering Information–316 ss Ball Valve

C- 3 BV- S6- 02 A- 3P
Classification product name Valve Type Material Size(Fractional) Size(Metric) Connection Type Max.Working Pressure
C:Valve 3:3pc BV:2-Way Ball Valve S6:SS316 02:1/8″ 6:6mm A:AFK Tube End 6P:6000PSIG
    BV:3-Way Ball Valve S6L:SS316L 04:1/4″ 8:8mm MR:Male BSPT Thread
        06:3/8″ 10:10mm FR:Female BSPT Thread
        08:1/2″ 12:12mm MN:Male NPT Thread
          14:14mm FN:Female NPT Thread

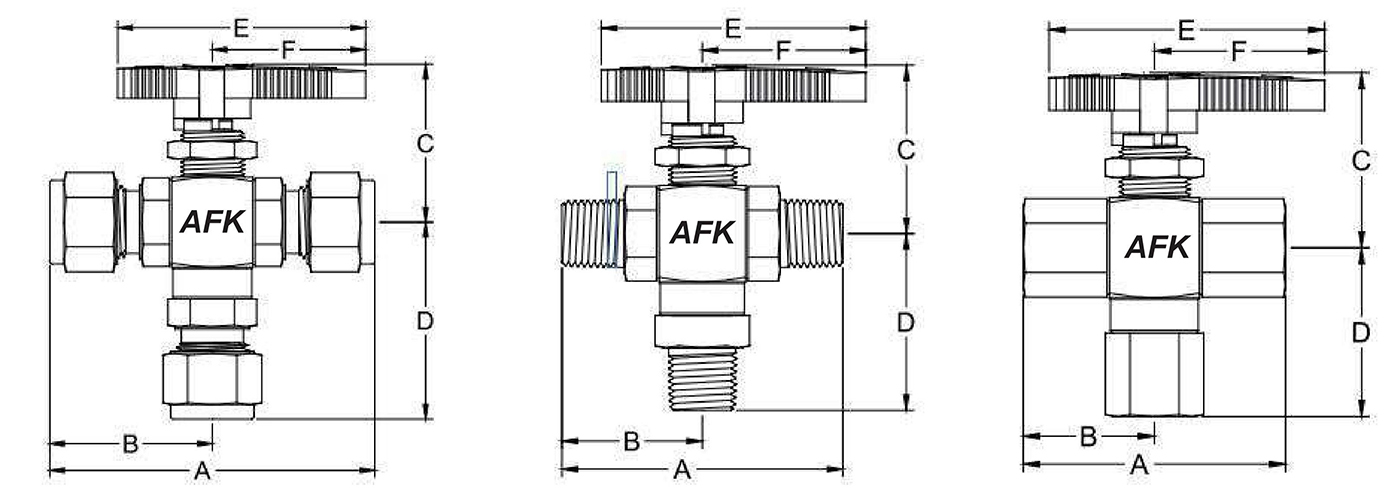

3 Way Ball Valve

3 Way Ball Valve

Type

Conn./Size

Orifice

Dimensions (mm)



Inlet/outlet

Mm

In.

A

B

C

D

E

F

Panel Hole Size

Max Panel Thickness

3 Way AFK TUBE END



Fractional

1/8″

5.0

0.19

65.1

32.1

35.0

39.6

55

34

14.0

6.0

1/4″

5.0

0.19

67.7

34.0

35.0

41.5

55

34

14.0

6.0

3/8″

5.0

0.19

70.3

35.9

35.0

43.4

55

34

14.0

6.0

1/2″

10.0

0.39

87.8

41.9

42.3

53.4

75

45

15.8

6.0

3/4″

10.0

0.39

83.8

42.9

42.3

54.4

75

45

15.8

6.0

Metric

6mm

5.0

0.19

67.6

33.8

35.0

41.3

55

34

14.0

6.0

8mm

5.0

0.19

70.0

35.0

35.0

42.5

55

34

14.0

6.0

10mm

5.0

0.39

79.8

39.9

42.3

51.4

75

45

15.5

6.0

12mm

10.0

0.39

83.4

41.7

42.3

53.2

75

45

15.8

6.0

14mm

10.0

0.39

84.8

42.4

42.3

53.9

75

45

15.8

6.0

18mm

10.0

0.39

84.8

42.4

42.3

53.9

75

45

15.8

6.0

3 Way MALE THREAD

Fractional

1/8″

5.0

0.19

52.4

26.2

35.0

33.7

55

34

14.0

6.0

1/4″

5.0

0.19

58.4

29.2

35.0

36.7

55

34

14.0

6.0

3/8″

5.0

0.19

60.4

30.2

35.0

37.7

55

34

14.0

6.0

1/2″

10.0

0.39

74.0

37.0

42.3

48.5

75

45

15.8

6.0

3 Way MALE THREAD

Fractional

1/8″

5.0

0.19

45.4

22.7

35.0

30.2

55

34

14.0

6.0

1/4″

5.0

0.19

52.4

26.0

35.0

33.7

55

34

14.0

6.0

3/8″

10.0

0.39

62.0

31.0

42.3

42.5

75

45

15.8

6.0

1/2″

10.0

0.39

64.0

32.0

42.3

43.5

75

45

15.8

6.0

 All Dimensions Are In Millimeters Unless Specific.
Dimensions Shown Are For Reference Only And Subject To Change.
For Other Connections . Please Contact With Afk Sales Representative.

3pc Ball Valve-6000psig Material Of Construction
