China Wholesale Argon Gas Regulator Factories - 1/2inch Adjustable Helium Single Stage High Pressure Gas Regulator – Wofly Detail:

R12 Pressure Regulator

R12 Serie stainless steel pressure reducers, single-stage diaphragms pressure reducing construction, stainless steel diaphragms pressure transmission, stable output pressure, applied in mass flow gas system

R12 Product Parameter

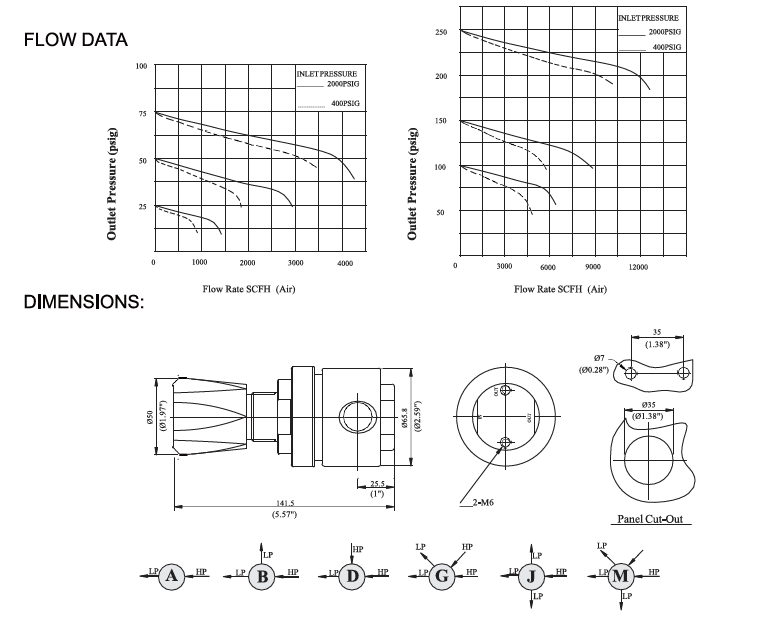

R12 flow data

Ordering Information

R12

L

B

B

D

G

00

02

P

Item

Body Material

Body Hole

Inlet Pressure

Outlet

Pressure

Pressure  Guage

Inlet

size

Outlet

size

Mark

R12

L:316

A

D:3000 psi

H:0-125psig

G:Mpa guage

02:3/8″NPT(F)

02:3/8″NPT(F)

P:Panel mounting

  B:Brass

B

F:500 psi

I:0-100psig

P:Psig/Bar Guage

03:3/8″NPT(M)

03:3/8″NPT(M)

R:With relief valve

    D

K:0-50pisg

W:No guage

04:1/2″NPT(F)

04:1/2″NPT(F)



    G

L:0-25psig



04:1/2″NPT(M)

04:1/2″NPT(M)


    J

12:3/8″ OD

12:3/8″ OD
    M

13:1/2″ OD

13:1/2″ OD
            Other type is available Other type is available

Application

Laboratory,Gas purge system,Corroslve gas,special gas,Gas bus-bar,Testing equipment,Chemistry industry

Features of R12 High Pressure Regulator

1 Single -stage pressure-reducing Structure
2 Metal-to-metal diaphragm seal.
3 Body Thread : input & output connection 3/4″ NPT ( F )
4 Gauge and safety valve connection: 1/4″ NPT ( F )
5 Filter element installed internally
6 Panel mountable or wall mounting available
7 Easy to clean internal structure

Specification

1 Max. Inlet Pressure 500, 3000 psi
2 Outlet Pressure 0~25, 0~50, 0~125 Psi
3 Proof Pressure 1.5 times of maximum rated pressure
4 Working Temperature -40°F-+165°F(-40°C-+74°C)
5 Leakage Rate 2*10-8 atm cc/sec He
6 CV  1.1
7 Body Thread  1/4″ NPT ( F )
