China Wholesale 2 Inch Water Solenoid Valve Pricelist - 2 Way Normally Closed 3/4inch 1 inch Water Solenoid Valve for Irrigation – Wofly Detail:

2 Way Normally Closed Solenoid Valve

Scope of application of Normally Closed Water Solenoid Valve
At present, it is one of the most widely used solenoid valves in garden irrigation. It is used in large-area lawn, stadium, agriculture, industrial and mining dust removal and water treatment equipment.

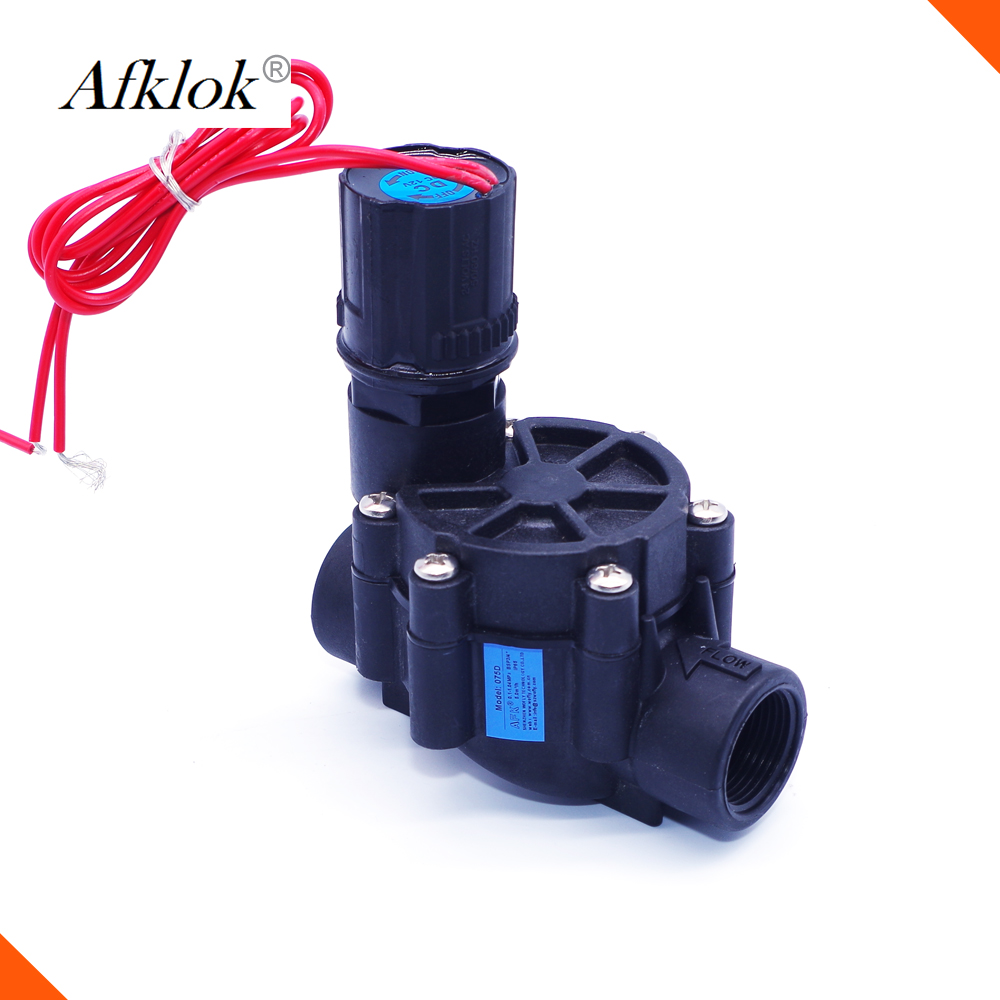

Irrigation Solenoid Valve 200P (14)

Specification of  Water Solenoid Valve

1 Material regular plastic
2 Water temperature  ≤43°C
3 Environment temperature ≤52°C
4 Service voltage 6-20VDC ( 24VAC, 24VDC optional)
5 Pulse width 20-500mSec
6 Coil resistance  6 Ω
7 Capacitance 4700uF
8 Coil inductance 12mH
9 Connection G/NPT female thread
10 Working pressure 1~10.4bar (0.1~1.04MPa)
11 Flow rate range 0.45~34.05m³/h
12 Operation mode valve element lock position,valve open, release position, valve close.

material of Irrigation Water Solenoid Valve

1 Valve body Nylon
2 Seal NBR / EPDM
3 Moving core 430F
4 Static core 430F
5 Spring SUS304
6 Magnetic ring red copper
1 Size 075D 3/4”, 20mm (BSP thread)
100D 1″, 25mm (BSP or NPT female )
2 Working pressure 1″  1-10bar
3 Flow rate 1″ 9 m³/h
4 Operation mode valve element lock position,valve open, release position, valve close.

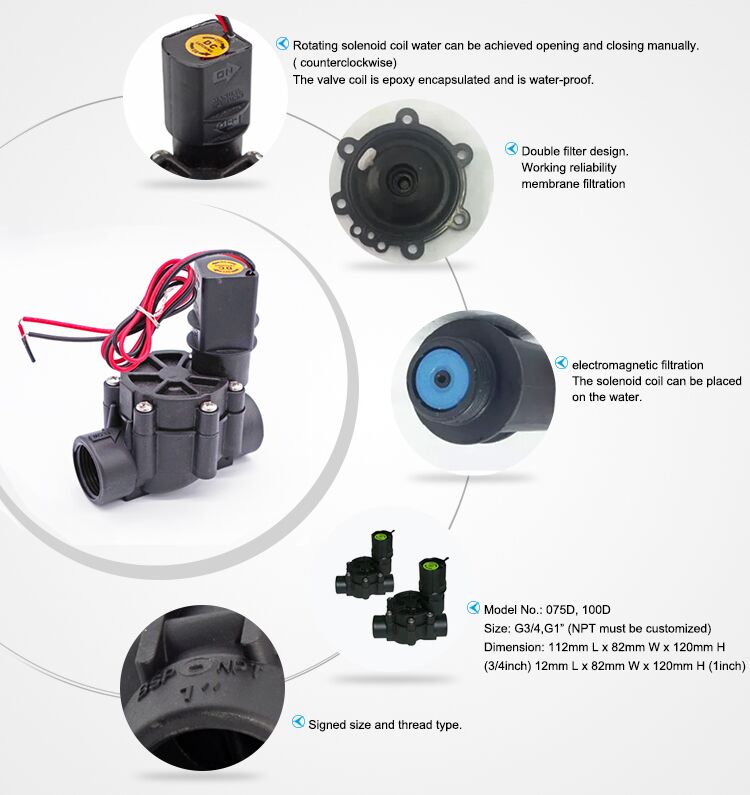

075D-new

Features of Solenoid Valve

1 Globe and angle configuration for flexibility in design and installation.
2 Rugged PVC construction
3 Filtered pilot flow to resist debris and clogging of solenoid ports.
4 Slow closing to prevent water hammer and subsequent system damage.
5 Manual internal bleed operates the valve without allowing water into the valve box.
6 One-piece solenoid design with captured plunger and spring for easy servicing.
7 Prevents loss of parts during field service.
8 Non-rising flow control handle adjusts water flows as needed.
9 Normally closed, forward flow design.
