AFK Stainless Steel Industrial Oxygen/Hydrogen/Nitrogen/Argon Gas Cylinder Regulator Valve 1000psi

Design Features

Typical applications

Material

Specification

Maximum inlet pressure : 500 , 1500 psig

Output pressure : 0~15 , 0~25 , 0~75 , 0~125psig

Safety testing pressure : 1.5times of max inlet pressure

Working tem : 40℉~+446℉(-40℃~+230℃)

Leakage rate : 2*10^-8 atm cc/sec He

Cv ： 1.8

Cleaning Technics

Standard(KW-BA)

The welded fittings are cleaned in accordance with our standard cleaning and packaging specifications. No suffixes need to be added when ordering.

Oxygen Cleaning(KW-O2)

Specifications for cleaning and packaging of products for oxygen environments are available. This meets ASTM G93 Class C cleanliness requirements. When ordering, add -O2 to the end of the order number.

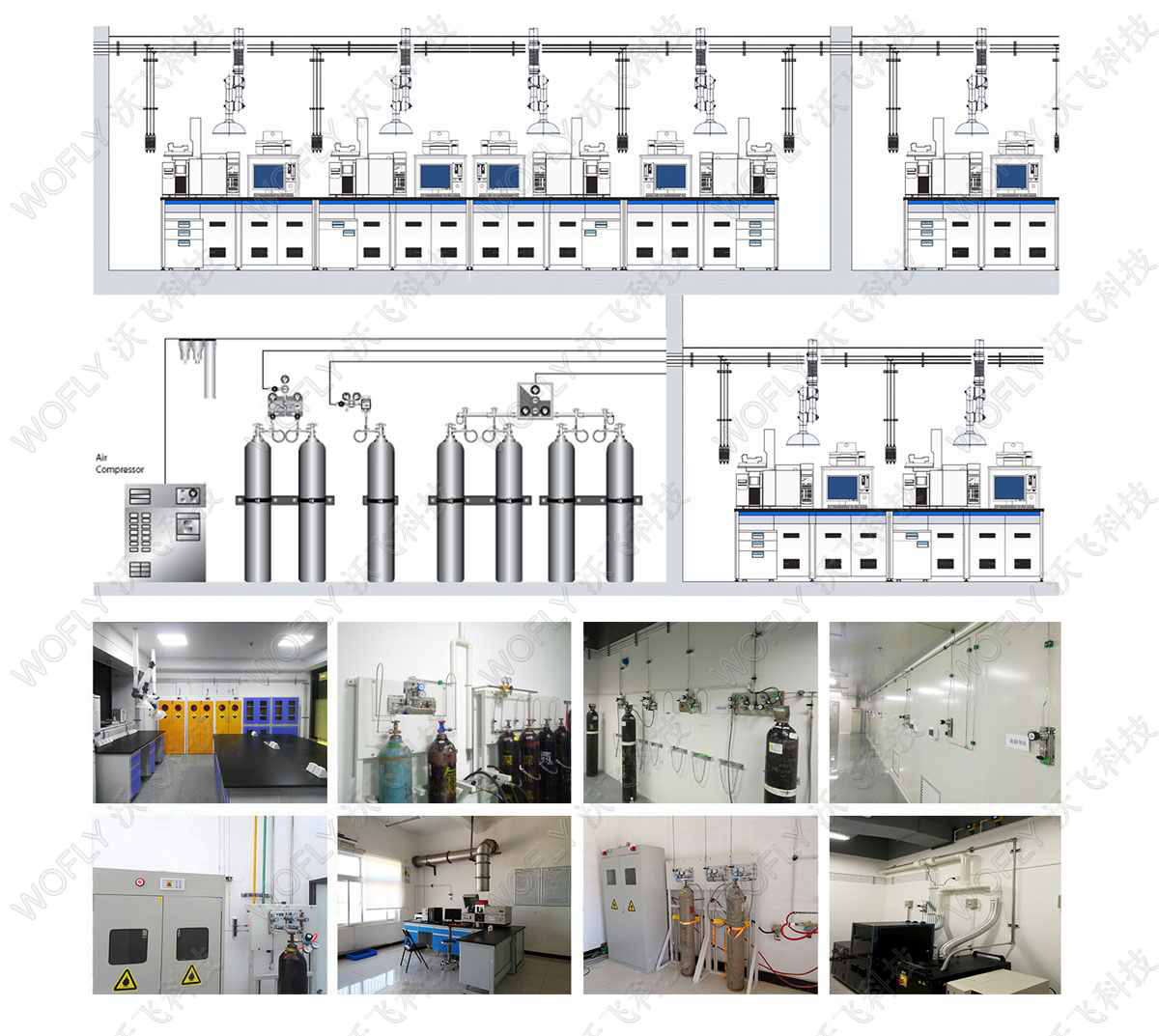

The company offers a full range of laboratory gas piping systems to meet the gas requirements and safety of different experiments. The gas supply system is equipped with a double bottle with manual, semi-automatic and fully automatic switching functions, with a low pressure alarm device, real-time monitoring of gas pressure, concentration detection alarm and exhaust air to ensure normal gas demand and safety of life and property of customers.

Q1. What products can you provide?

Re: High pressure regulator, cylinder gas regulator, ball valve, needle valve, compression fittings(connections).

Q2. Can you make the products based on our requests, such as connection, thread, pressure and so on?

Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements. Take a pressure regualtor for example, we can set the range of pressure gauge according actual working pressure, if the regulator is connected to a gas cylinder, we can add an adaptor such as CGA320 or CGA580 to connect the regulator with the cylinder valve.

Q3. What about the quality and price?

Re: Quality is very good. Price is not low but pretty reasonable at this quality level.

Q4. Can you provide samples to test? For free?

Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.

Q5. Can you operate OEM orders?

Re: Yes, OEM is supported though we also have our own brand named AFK.

Q6. What payment methods for chose?

Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 30%T/T, Western Union, L/C as deposit, and 70% balance paid before shipment.

Q7. How about the lead time?

Re:  Usually, delivery time is 5-7 working days for sample, 10-15 working days for mass production.

Q8. How will you ship the goods?

Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
