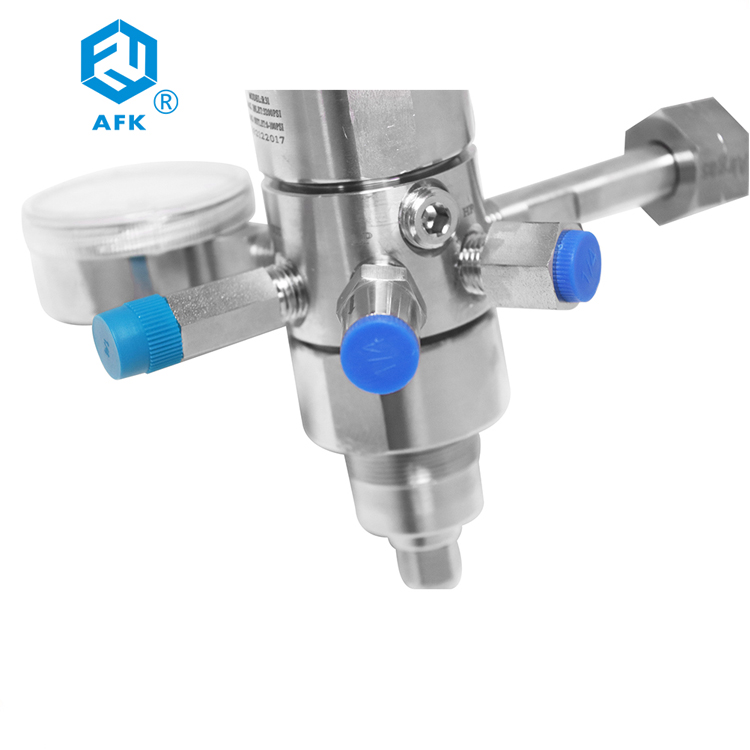

AFK R31 Stainless Steel Dual Stage High Pressure Argon Gas Pressure Regulator 4000psi
R31 pressure regulator

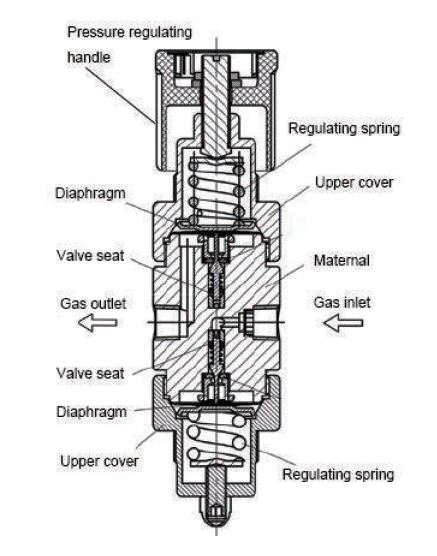

R31 series stainless steel pressure regulator, double stage diaphragm reducing structure, stable input pressure, suitable for high purity gas, standard gas, corrosive gas etc.
Product parameter of Stainless Steel Dual Stage High Pressure Argon Gas Pressure Regulator 4000psi
| Material List of Gas Pressure Regulator | ||
| 1 | Body | 316L,Brass |
| 2 | Roof | 316L,Brass |
| 3 | Diaphragm | 316L |
| 4 | Filter mesh | 316L（10μm） |
| 5 | Valve seat | PCTFE,PTFE,Vaspel |
| 6 | Spring loaded | 316L |
| 7 | Valve disc regulation pole | 316L |
| Typical Application of R31 Stainless Steel Pressure Regulator | ||
| 1 | Laboratory | |
| 2 | Gas chromatograph | |
| 3 | Gas laser | |
| 4 | Gas bus-bar | |
| 5 | Petrochemical industry | |
| 6 | Tested instrumentation | |
| Main Features of High Pressure Argon Gas Pressure Regulator | ||
| 1 | Five hole design of the body | |
| 2 | Double-stage reduce body and diaphragm | |
| 3 | Ues hard-seal between body and diaphragm | |
| 4 | Body thread：input and output connection 1/4″NPT F | |
| 5 | Easy to sweep inside body | |
| 6 | Filter element installed internally | |
| 7 | Panel mountable or wall mounting available | |
| 8 | Optional outlet：needle valve，diaphragm valve | |
ORDERING INFORMATION
|
R31 |
L |
B |
G |
G |
00 |
00 |
02 |
P |
|
Item |
Body Material |
Body Hole |
Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
|
R31 |
L:316 |
M |
G:3000 psi |
G:0-250psig |
G:Mpa guage |
00:1/4 “NPT(F) |
00:1/4 “NPT(F) |
P:Panel mounting |
|
|
B:Brass |
Q |
F:500 psi |
I:0-100psig |
P:Psig/Bar Guage |
00:1/4 “NPT(F) |
00:1/4 “NPT(F) |
R:With relief valve |
|
|
|
|
|
k:0-50psig |
W:No guage |
23:CGA330 |
10:1/8″ OD |
N:With Needle valve |
|
|
|
|
|
L:0-25psig |
|
24:CGA350 |
11:1/4″ OD |
D:With diaphragm valve |
|
|
|
|
|
Q:30″Hg Vac-30psig |
|
27:CGA580 |
12:3/8″ OD |
|
|
|
|
|
|
S:30″Hg Vac-60psig |
|
28:CGA660 |
15:6mm OD |
|
|
|
|
|
|
T:30″Hg Vac-100psig |
|
30:CGA590 |
16:8mm OD |
|
|
|
|
|
|
U:30″Hg Vac-200psig |
|
52:G5/8-RH(F) |
74:M8X1-RH(M) |
|
|
|
|
|
|
|
|
63:W21.8-14(F) |
|
|
|
|
|
|
|
|
|
64:W21.8-14LF(F) |
|
