AFK R11 4000PSI Stainless Steel Argon Nitrogen Pressure Reducing Valve

Short Description:

Features of pressure reducer

The following factors need to be paid attention to when selecting the pressure reducer. Follow up your specific use requirements and use this catalog to select the pressure reducer that matches your parameters. Our standard products are just the beginning of our service. We can modify or design the equipment to solve any problems in the application. For details, please contact our AFK foreign trade product sales representative.

R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc.


Product Detail

Video

Parameters

Ordering Information

Application

FAQ

Product Tags

Single Stage Pressure Reducer of R11 4000PSI Stainless Steel Argon Nitrogen Pressure Reducing Valve

Technical Data of pressure regulator

1 Max inlet pressure 500, 3000 psi
2 Outlet pressure 0~25, 0~50, 0~100, 0~250, 0~500 psi
3 Proof pressure 1.5 times of maximum rated pressure
4 Working temperature -40°F-+165°F(-40°C-+74°C)
5 Leakage rate 2*10-8 atm cc/sec He
6 Cv 0.08
CO2 Pressure Regulator

  • Previous:
  • Next:

  • Main Features of R11 4000PSI Stainless Steel Argon Nitrogen Pressure Reducing Valve

    1 Single -stage reduce Structure
    2 Use hard-seal between body and diaphragm
    3 Body Thread : 1/4″ NPT ( F )
    4 Easy to sweep inside body
    5 Filter mesh inside
    6 Panel mountable or wall mounted

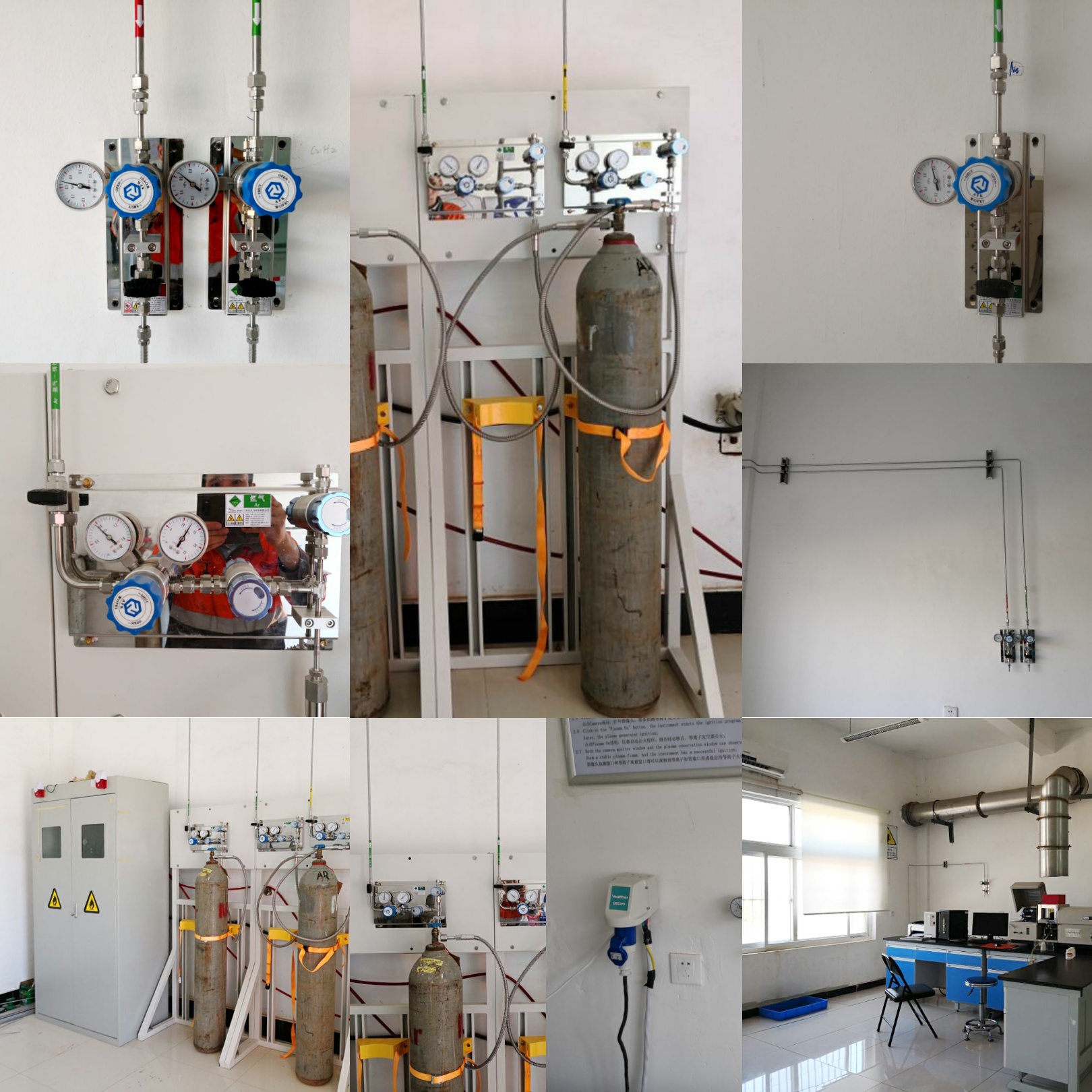

    Typical applications of R11 4000PSI Stainless Steel Argon Nitrogen Pressure Reducing Valve

    1 Laboratory
    2 Gas Chromatograph
    3 Gas Laser
    4 Gas bus
    5 Oil and chemical industry
    6 Tested instrumentation

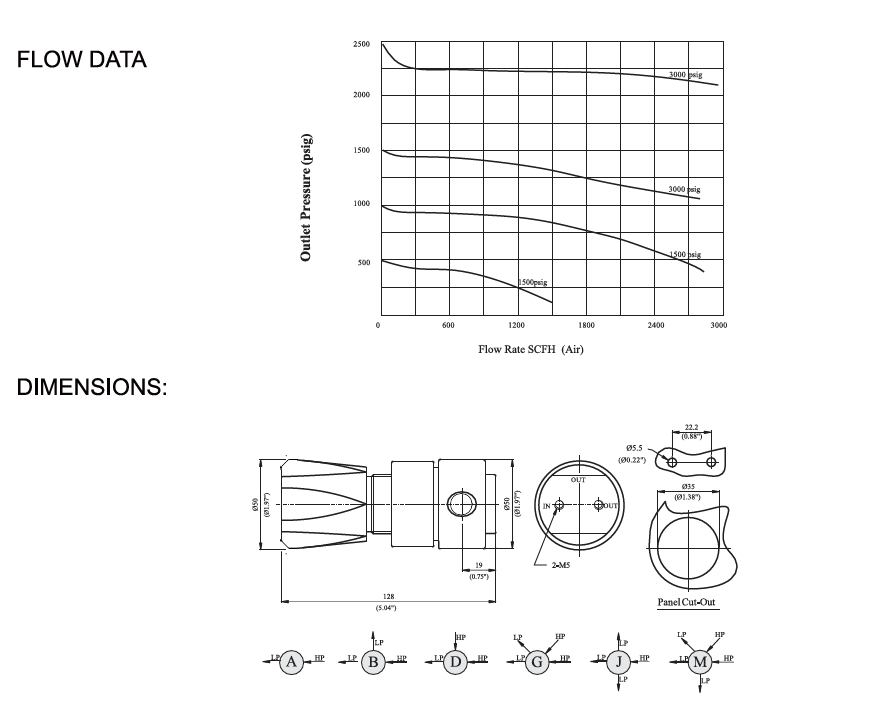

    flow-data2

    Ordering Information of R11 4000PSI Stainless Steel Argon Nitrogen Pressure Reducing Valve

    R11 L B B D G 00 02 P
    Item Body Material Body Hole Inlet Pressure Outlet
    Pressure
    Pressure Guage Inlet
    size
    Outlet
    size
    Mark
    R11 L:316 A D:3000 psi F:0-500psig G:Mpa guage 00:1/4″NPT(F) 00:1/4″NPT(F) P:Panel mounting
      B:Brass B E:2200 psi G:0-250psig P:Psig/Bar Guage 01:1/4″NPT(M) 01:1/4″NPT(M) R:With relief valve
        D F:500 psi K:0-50pisg W:No guage 23:CGGA330 10:1/8″ OD N:Needle calve
        G   L:0-25psig   24:CGGA350 11:1/4″ OD D:Diaphregm valve
        J       27:CGGA580 12:3/8″ OD
        M       28:CGGA660 15:6mm OD
                30:CGGA590 16:8mm OD
                52:G5/8″-RH(F)
                63:W21.8-14H(F)
                64:W21.8-14LH(F)

    1

    Q1. What is your terms of packing?

    A: Export standard.

    Q2. What is your terms of payment?

    A: T/T ,PayPal, Western Union.

    Q3. What is your terms of delivery?

    A: EXW.

    Q4. How about your delivery time?

    A: Generally, it will take 5 to 7 days after receiving your full payment. The specific delivery time depends on the items and the quantity of your order.

    Q5. Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?

    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q7. Do you test all your goods before delivery?

    A: Yes, we have 100% test before delivery

    Q8: How do you make our business long-term and good relationship?

    A:1. We keep good quality and competitive price to ensure our customers benefit ;

    A:2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
