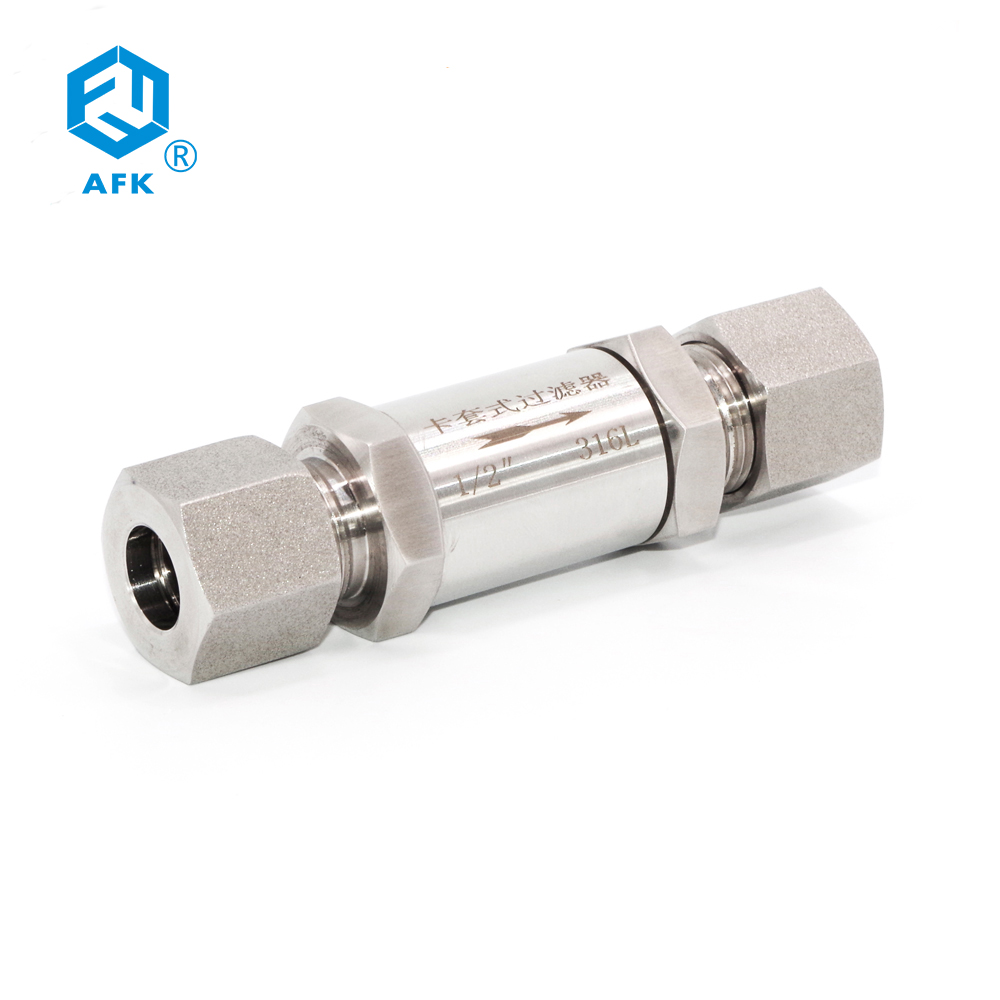

AFK 6mm / 8mm / 10mm Stainless Steel 316 Ferrule Filter
Stainless steel filter
| 1 | Max.working pressure 20.6 Mpa. |
| 2 | Max. working temperature 204℃ (High temperature environment up to 454℃,at this time the sealing material is replaced with expanded graphite) |
| 3 | Filter system Particulate pollutants, gases, liquids are applicable. |
| 4 | Stainless steel powder metallurgy sintered filter filter accuracy 2μm~40μm |
| 5 | Filter flow 1x 10 -6~1×10-2L/min. cm2. pa |
| 6 | Filter can be changed. |
Product features of Filter
| 1 | Wide application range, flow range from 15 to 300SL / min. |
| 2 | It has good compatibility with most high-purity semiconductor process gases. |
| 3 | 3 nanoparticle filtration capacity maintains high flow efficiency and ultra-small pressure drop. |
| 4 | 5Ra electropolished surface can prevent internal pollution. |
| 5 | Bake with hot nitrogen after deionized water to meet semiconductor process standards. |
| 6 | 1000 level dust-free aseptic workshop manufacturing, cleaning and packaging environment. |
| 7 | Test for 100% helium leakage. |
|
Inlet
|
Outlet
|
|
|
1
|
1/8″ tube fitting
|
1/8″ tube fitting
|
|
2
|
1/4″ tube fitting
|
1/4″ tube fitting
|
|
3
|
3/8″ tube fitting
|
3/8″ tube fitting
|
|
4
|
1/2″ tube fitting
|
1/2″ tube fitting
|
|
5
|
6MM tube fitting
|
6MM tube fitting
|
| 6 |
8MM tube fitting
|
8MM tube fitting
|
|
7
|
10MM tube fitting
|
10MM tube fitting
|
|
8
|
12MM tube fitting
|
12MM tube fitting
|
|
9
|
1/8″ Female NPT
|
1/8″ Female NPT
|
|
10
|
1/4″ Female NPT
|
1/4″ Female NPT
|
|
11
|
1/4″ Male NPT
|
1/4″ Male NPT
|
|
12
|
3/8″ Male NPT
|
3/8″ Male NPT
|
|
13
|
1/2″ Male NPT
|
1/2″ Male NPT
|
Product Performance Parameters of Filter
| 1 | Filtering Accuracy | ≥0.0025μm | |
| 2 | Filtration efficiency | Removal rate99.99999%≥0.0025μm | |
| 3 | Rated flow | 15L/Min | |
| 4 | 60L/Min | ||
| 5 | 120L/Min | ||
| 6 | 200L/Min | ||
| 7 | 300L/Min | ||
| 8 | Filter composition | filter element | 316L/PTFE |
| 9 | housing | stainless steel 316L | |
| 10 | Working conditions | Maximum inlet pressure | 21Mpa（310kgf/cm2） |
| 11 | Maximum differential pressure | 15Mpa（153kgf/cm2） | |
| 12 | Maximum operating temperature | 430℃（inert gas） | |
| 13 | Helium leakage rate | 1×10-9 atm.cc/sec | |
| 14 | Surface finish | ≤Ra 5μin | |
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator。
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
