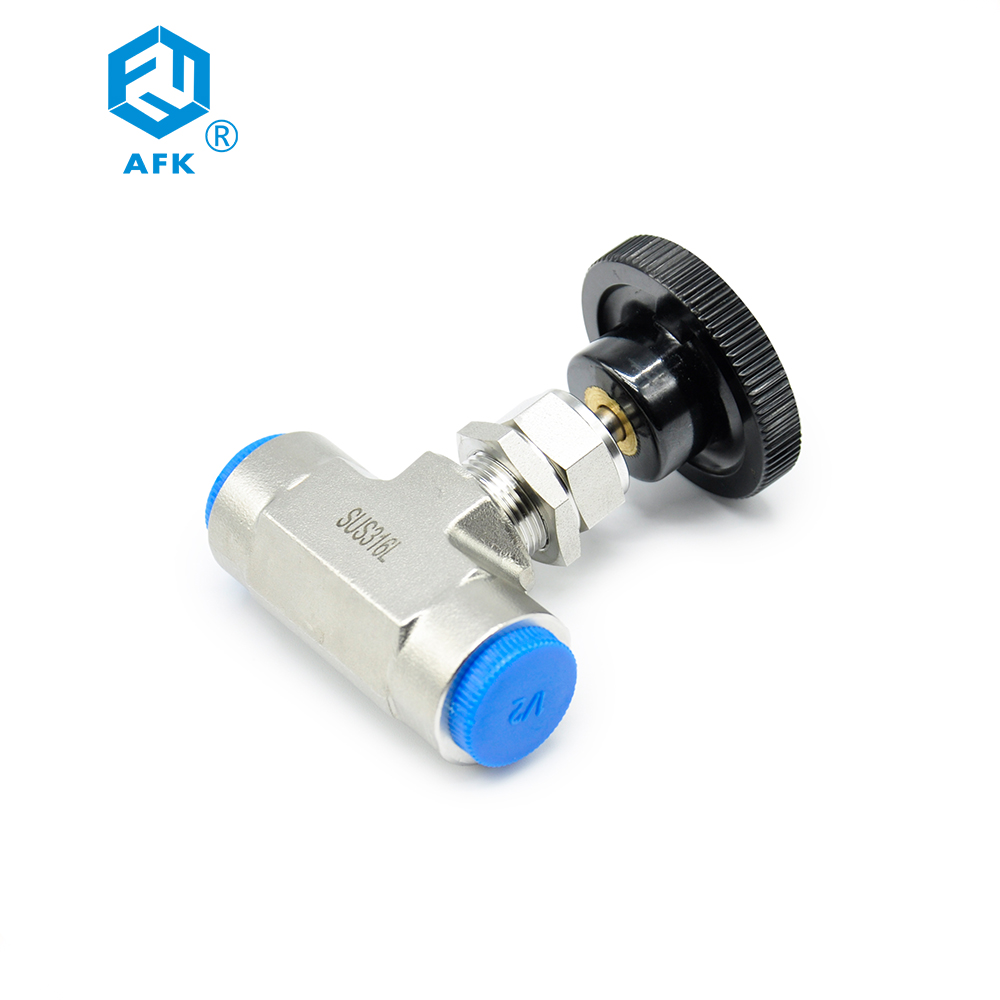

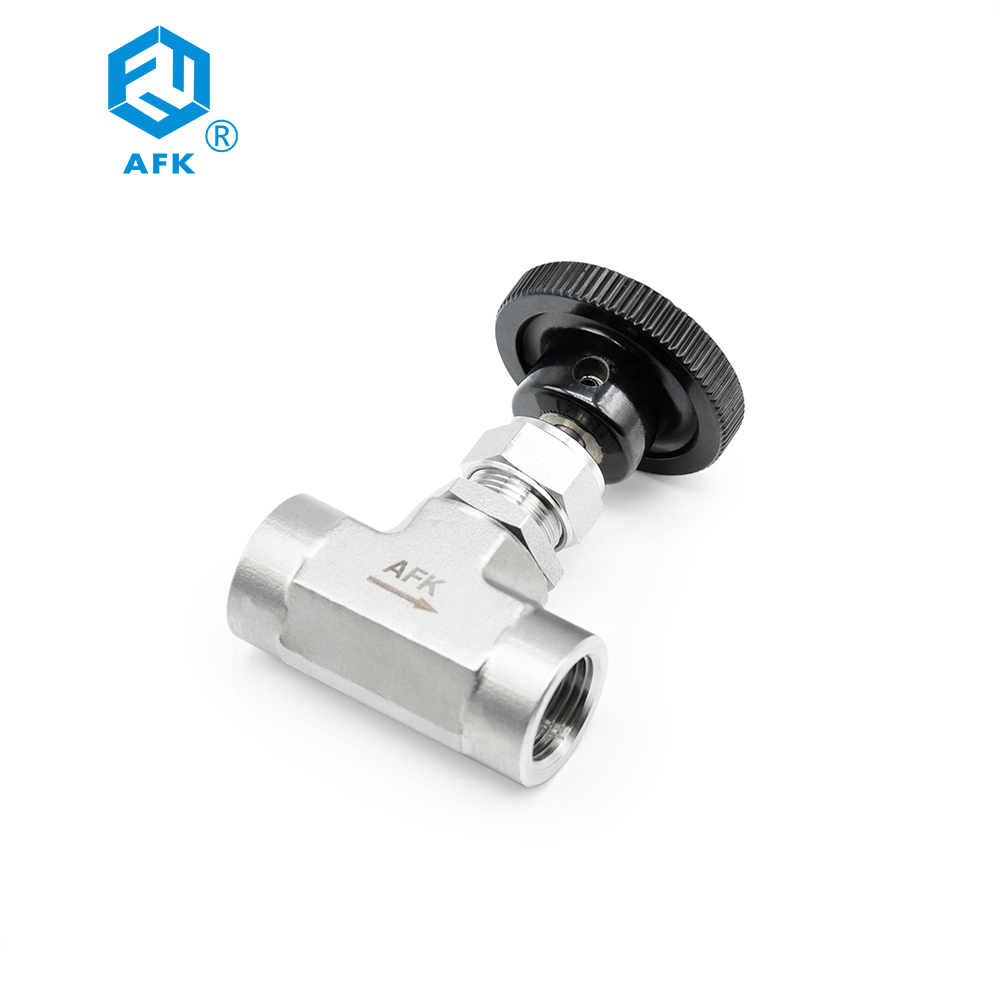

AFK 3000psi 2 Way Female Thread Stainless Steel High Pressure Needle Valve 1/4 3/8 1/2 3/4 in
Product Description of Female Needle Valve

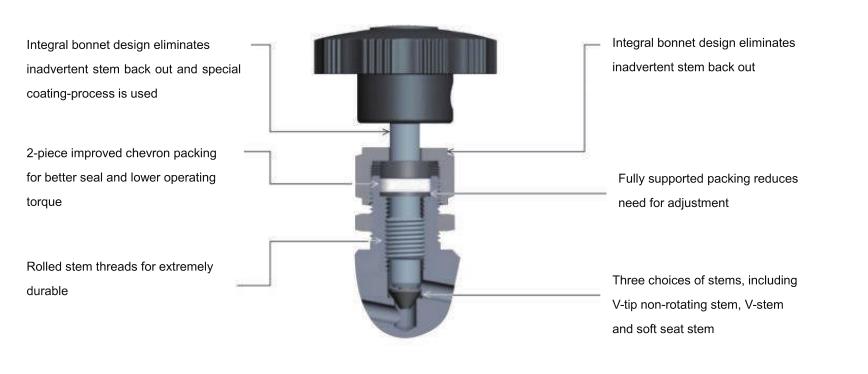

Featutes of female needle valve
1.forged body available with inline and angle pattern
2.max .working presssure to 6000psi（413bar）at 37℃（100℉）
3.panel mountable
4.TFM1600 packing as standard
5.100% factory tested

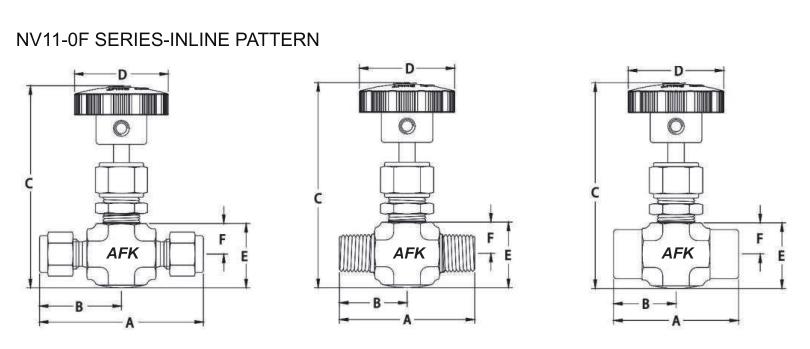

Specification of OF female thread needle valve
| Ordering Information | ||||||
|
C |
Classification |
C:valve |
|
|
|
|
|
NV |
Product name |
NV:needle valve |
|
|
|
|
|
1 |
Valve type |
1.Forged |
|
|
|
|
|
1- |
Valve pattern |
1.Inline pattern |
2.Angle pattern |
|
|
|
|
OF- |
Suiface treatment |
of:oil free |
|
|
|
|
|
S6- |
Material |
S6:SS361 |
S6L:SS316L |
|
|
|
|
02 |
Size(fractionnal） |
02:1/8″ |
04:1/4″ |
06:3/8″ |
0/:1/2″ |
|
|
Size(mrtric） |
4:4mm |
6:6mm |
8:8mm |
10:10mm |
12:12mm |
|
|
A |
Connection type |
A:AFK tube end |
MR:male BSPT thread |
FR:female BSPT thread |
MN:male NPT thread |
FR:female NPT thread |
|
T |
Packing |
T:TFM1600 |
|
|
|
|
|
|

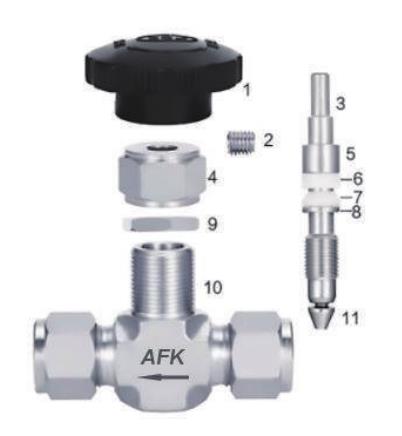

Construction OF female thread needle valve | |||
|
Item |
Part description |
Qty. |
Material |
|
|
1 |
handle |
1 |
Phenolic resins |
|
|
2 |
Locking nut |
1 |
SS304 |
|
|
3 |
stem |
1 |
SS316/316L |
|
|
4 |
Packing nut |
1 |
SS316/316L |
|
|
5 |
Upper gland |
1 |
SS316/316L |
|
|
6 |
Upper packing |
1 |
TFM1600 |
|
|
7 |
Lower packing |
1 |
TFM1600 |
|
|
8 |
Lower gland |
1 |
SS316/316L |
|
|
9 |
Panel nut |
1 |
SS304 |
|
|
10 |
body |
1 |
SS316/316L |
|
|
11 |
Stem tip |
1 |
SS630 |
|
Assemblying And Testing
All valves are assembled in clean and well-lighted workplaceTo reach 100% oil-off，surface coating is applied on packing nut，stem，and valve end as lubricationAll JPE needle valve are tested by nitrogen 1000psi（69bar）in factory
Packing And Marking
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve，Thermometer, pressure gauge
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
