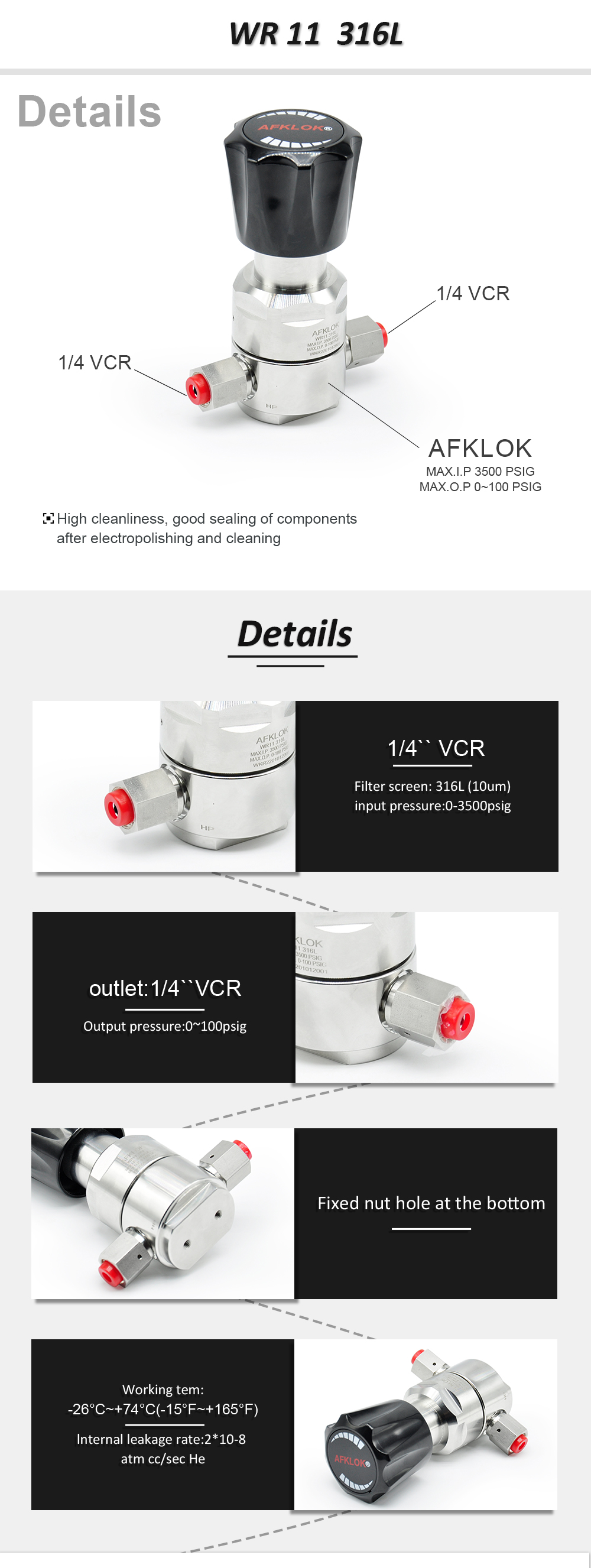

Ultra High Purity Regulator 3500psi

Short Description:

Designed for point-of-use high flow to be used in process gas cabinets for gas companies, equipment manufactures and semiconductor manufacturers.
All internal surfaces are finished with 10Ra or 5Ra to ensure minimal particle generation and entrapment. Metal-to-metal diaphragm seals provide enhanced leak tight integrity.
Every step of assembly, welding, testing and final cleaning finished in Class 100 or 10 cleanrooms.

Send email to us

Product Detail

Video

Parameters

Ordering Information

Application

FAQ

Product Tags

Product Description of Adjusting Propane Regulator High Flow Pressure Regulator with 1/4inch VCR fitting

Previous: Stainless Steel Specialty Gas Lab Regulator For High Purity Application Corrosion Resistant High Precision Regulators

Next: Argon Hydrogen Stainless Steel Pressure Gauge Manometer

Specification of Adjusting Propane Regulator High Flow Pressure Regulator with 1/4inch VCR fitting

Technical Data of Adjusting Propane Regulator High Flow Pressure Regulator with 1/4inch VCR fitting

Max Inlet Pressure：600psig, 3500psig

Outlet Pressure Range：0~30, 0~60, 0~100, 0~150, 0~250, 0~500

Component Material：

Seat：PCTFE

Diaphragm：Hastelloy

Filter mesh：316L

Working Temperature：-40℃～+74℃(-40℉～+165℉)

Leak Rate (Helium)：

Internal： ≤1×10 mbar l/s

External：≤1×10 mbar l/s

Flow Coefficient (Cv)：

3500psig Inltet：Cv=0.09

600psig Inltet：Cv=0.20

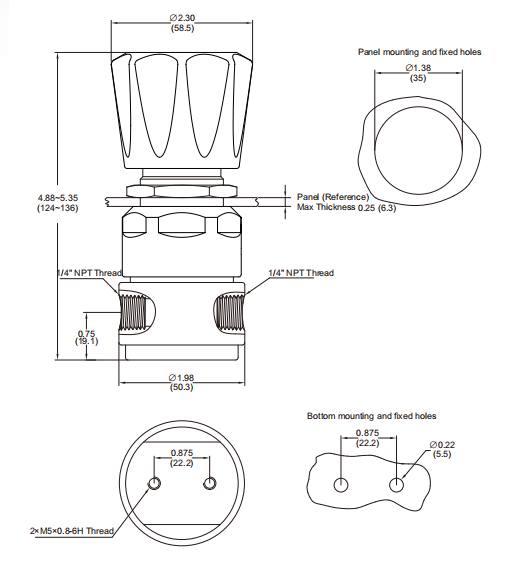

Body Thread：

Inlet port：1/4NPT (EP 1 / 4 VCR optional)

Outlet port：1/4NPT (EP 1 / 4 VCR optional)

Pressure gauge port：1/4NPT (EP 1 / 4 VCR optional)

Ordering Number Description WR11-6L-35-100-D 00 M M 00-Z-O2
6L	35	100	D	00 M M 00	Z	O2

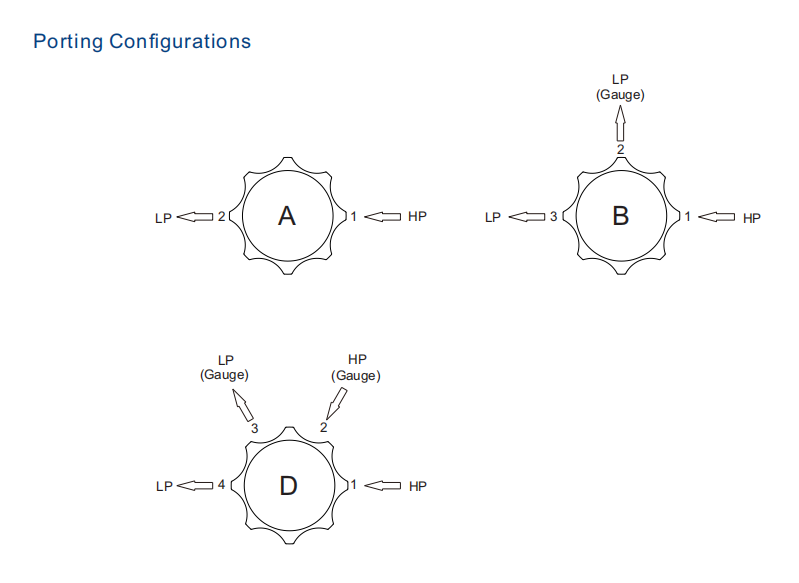

Body Material	Inlet Pressure P1	Outlet Pressure Range P2	Porting	00:1/4″ Female NPT	Optional Feature	Product Grade
6L 316L SS	35:3500PSI	30:0~30psi	A:2 ports	01:1/4″ Male NPT	None	Standard(BA)
HC Hastelloy C-276	06:600PSI	60:0~60psi	B:3 ports	10:1/4″ OD	Z With a panel nut	O2:Oxygen clea-ning
		100:0~100psi	D:4 ports	11:3/8″ OD
		150:0~150psi	Other ports are available upon request	20:1/4″ OD diaphragm valve
		250:0~250psi		21:3/8″ OD diaphragm valve
		500:0~500psi		FR4:1 / 4 “female VCR
				RMR 4 1 / 4 “male VCR
				M:With gauge (psi/MPa)
				C_ CGA(USA) NO.
				DIN_DIN (DEU) NO.
				Refer to the manual for cylinder connections.Other connections are available upon request.

Ltd. is a high-tech enterprise specializing in gas application system engineering: ultra-high purity electronic special gas system, laboratory gas system, bulk gas (liquid) system, industrial centralized gas supply system, special process gas secondary piping system, chemical delivery system, pure water system, providing technical consultation, overall planning, system design, selected equipment, prefabricated components, project site installation and construction, overall system The project covers semiconductor, integrated circuit, flat panel display, optoelectronic, automotive, new energy, nano, optical fiber, microelectronics, petrochemical, biomedical, various laboratories, research institutes, standard testing and other high-tech industries to provide customers with a full set of high-purity media delivery system solutions, and gradually become a leading industry We have become a leading system supplier in the industry.

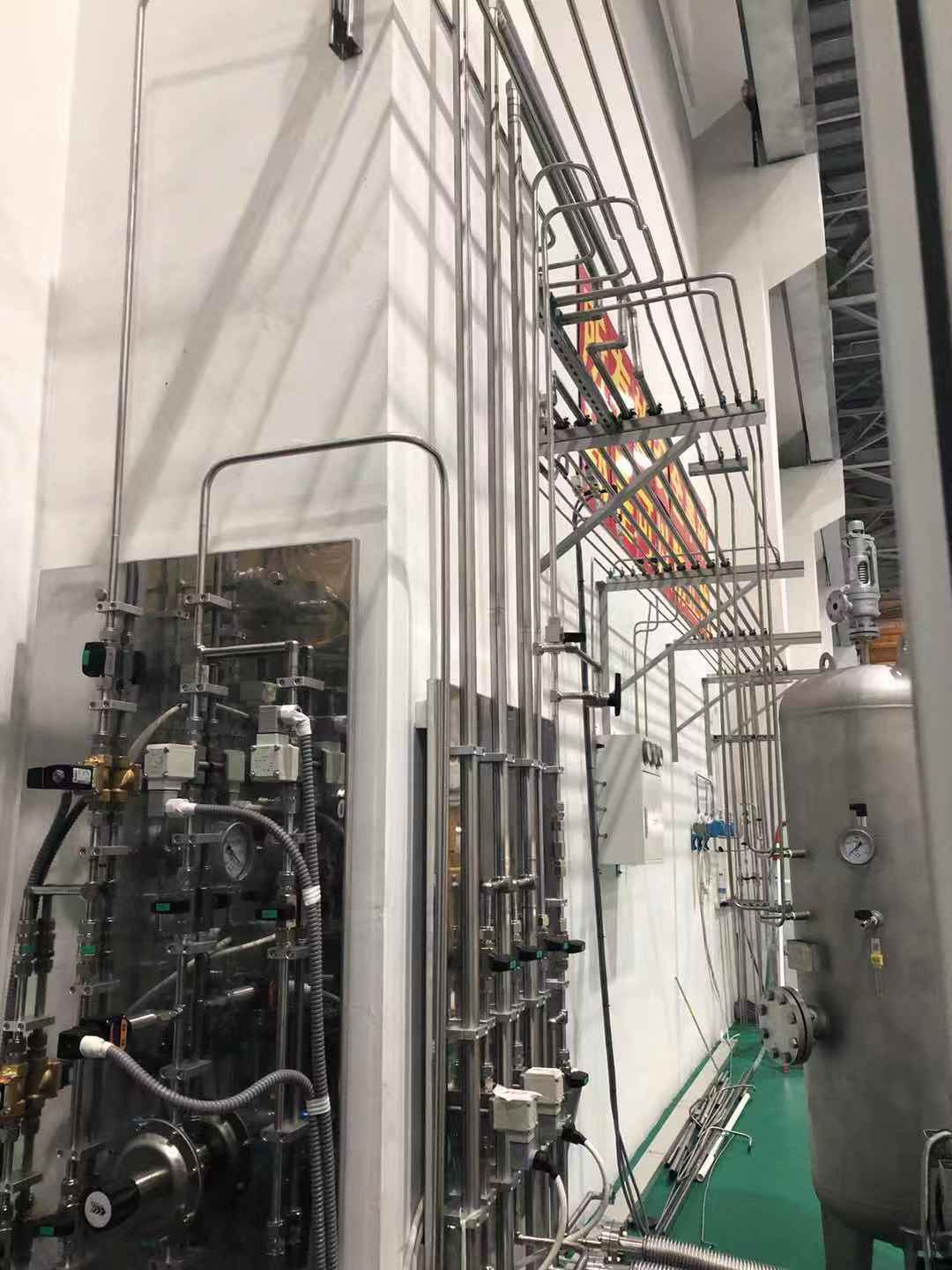

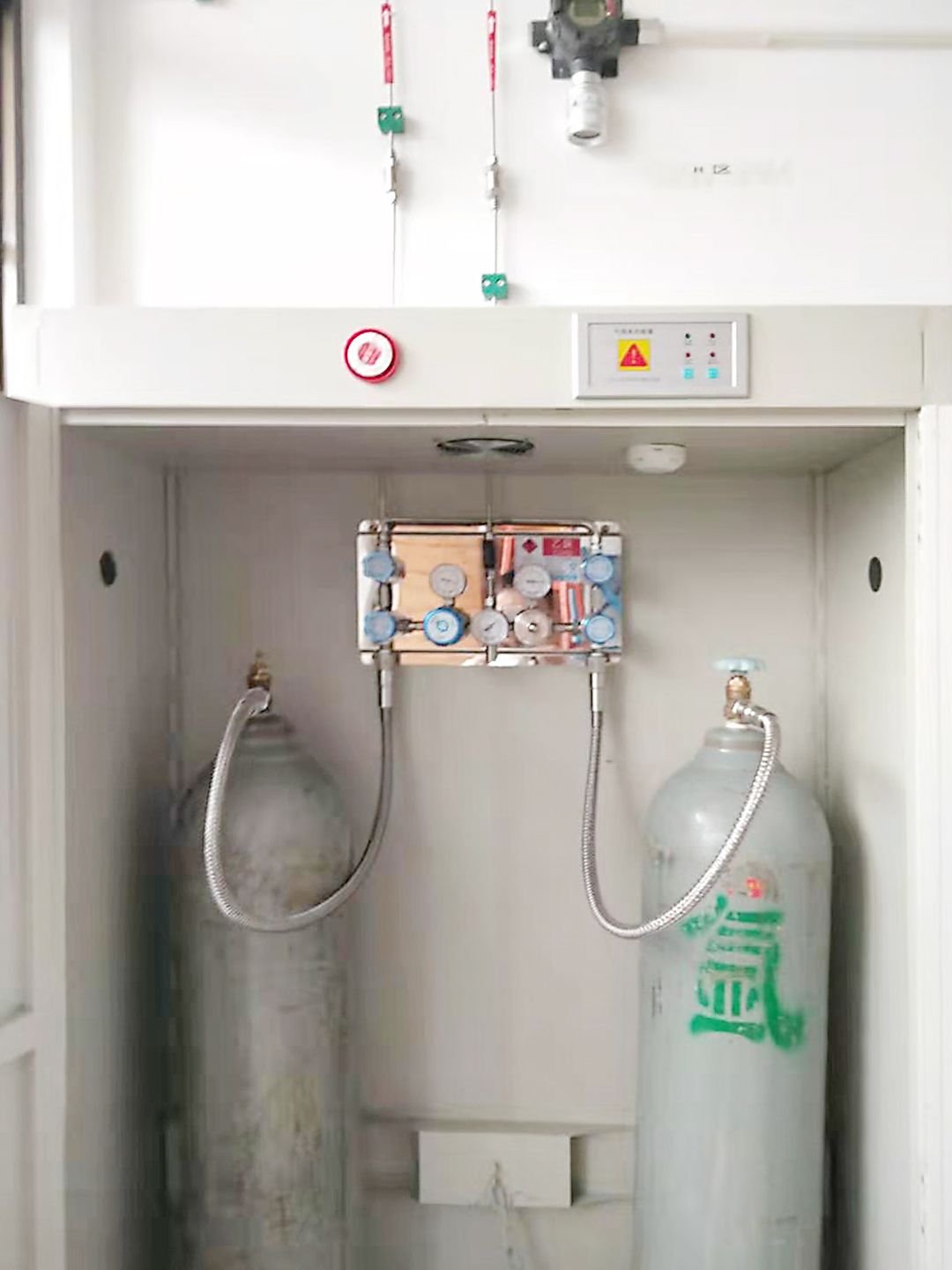

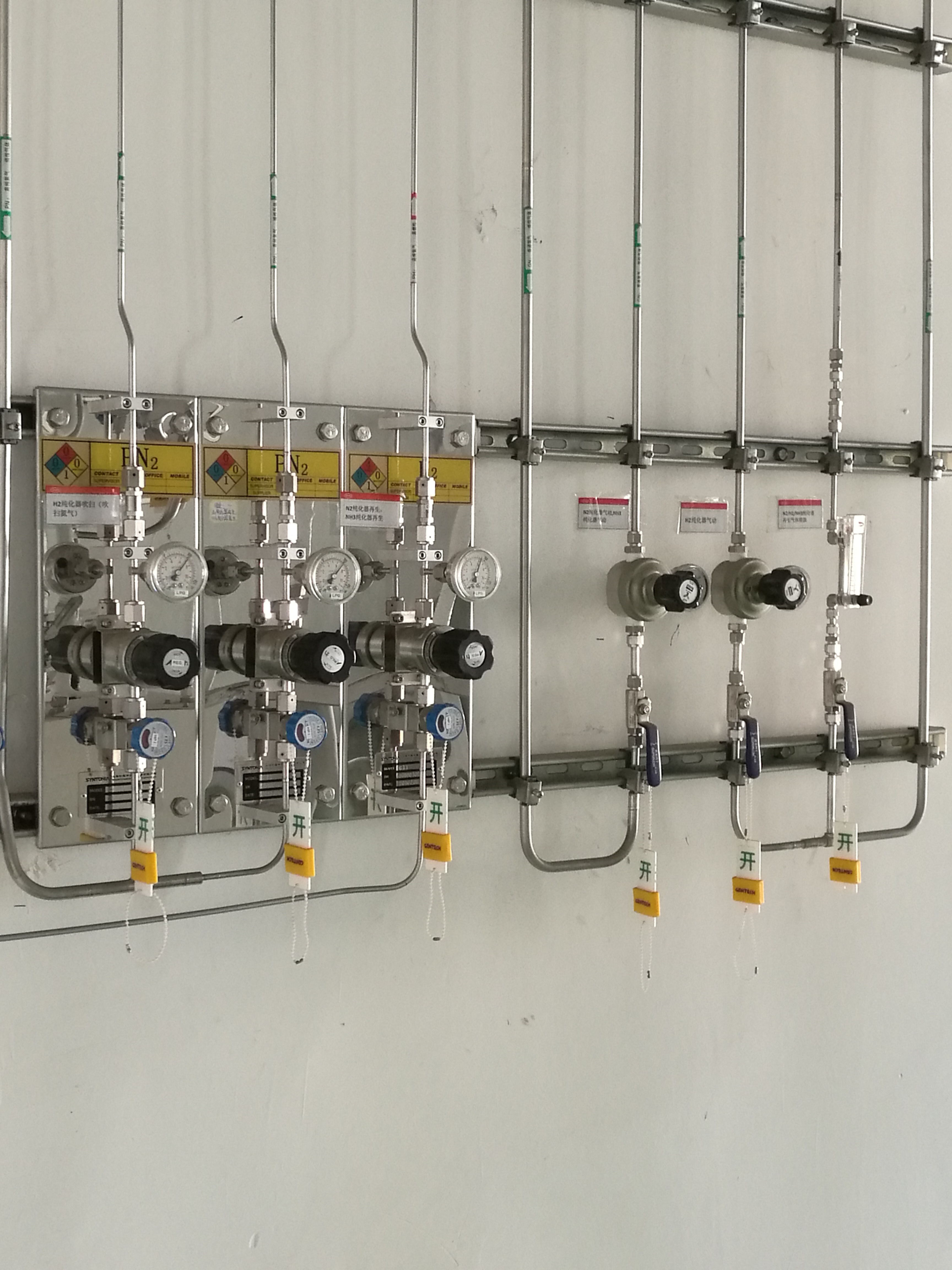

Customer Cases

Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q2. Do you have any MOQ limit ?

A: Low MOQ 1 pic.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.

Q4. How to proceed an order ?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
