AFK High Pressure 6000PSI Stainless Steel 316 Small Square Body Slotted Handle Ferrule Needle Valve
High Pressure Stainless Steel Needle Valve

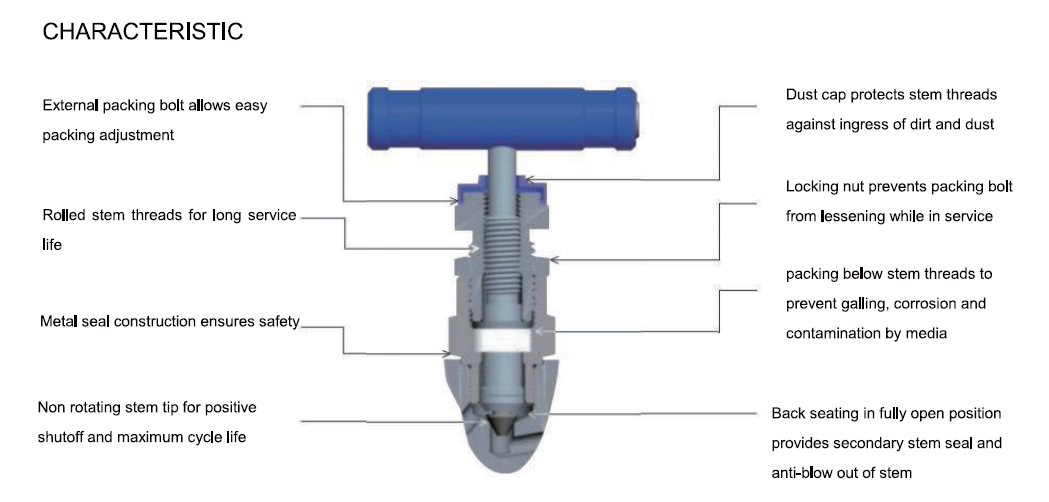

Features of stainless steel needle valve
| 1 | A variety of connection ends:AFK tube end,Male/Female thread |
| 2 | Pressure range:6000psig |
| 3 | Four corner bar body |
| 4 | The body is stainless steel SS316 / 316L |
| 5 | The maximum working pressure is 6000psig (413bar) at 37 ℃ (100 ℉) |
| 6 | The standard material of filler is tfm1600, and graphite filler is available |
| 7 | 100% factory test |

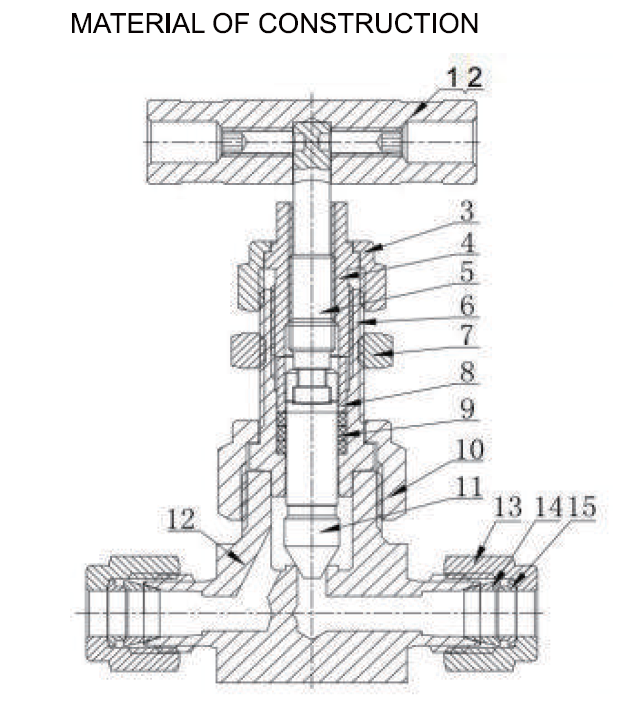

| Item | Part Description | Qty. | Material |  |
| 1 | Handle | 1 | Nylon | |
| 2 | Handle set screw | 2 | Chrome-plated | |
| 3 | Nut | 1 | SS316/316L | |
| 4 | Packing nut | 1 | SS316/316L | |
| 5 | Stem | 1 | SS316/316L | |
| 6 | Stem | 1 | SS316/316L | |
| 7 | Bulkhead | 1 | SS304 | |
| 8 | Packing | 1 | SS304 | |
| 9 | Packing | 3 | PTFE | |
| 10 | Nut | 1 | SS304 | |
| 11 | Tip | 1 | SS304 | |
| 12 | Body | 1 | SS316/316L | |
| 13 | Nut | 2 | SS316/316L | |
| 14 | Front Ferrule | 2 | SS316/316L | |
| 15 | Back Ferrule | 2 | SS316/316L |
Ordering Inforrmation of stainless steel needle valve
| C | NV | 53- | S6- | 02 | A | T | D6 | |
| Classifi-Cation | Produt Name | Valve Type | Material | Size(Fractional) | Size(Mrtric) | Connection Type | Packing | Orifice |
| C:Valve | NV:NEED | 53:Square Bar Stock | S4:SS304 | 04:1/4″ | 3:3mm | A:AFK Tube End | T:TFM1600 | D:4:4mm |
| LE Valve | Inlinepattern | |||||||
| S6:SS316 | 05:5/16″ | 6:6mm | MR:Male BSPT Thread | G:Graphite | D6:6mm | |||
| S6L:SS316L | 06:3/8″ | 8:8mm | FR:Female BSPT Thread | D8：8mm | ||||
| 08:1/2″ | 10:10mm | MN:Male NPT Thread | D10:10mm | |||||
| 10:5/8″ | 12:12mm | FN:Female NPT Thread | D12:12mm | |||||
| 12:3/4″ | 15:15mm | D15:15mm | ||||||
| 16:1″ | 25:25mm | |||||||

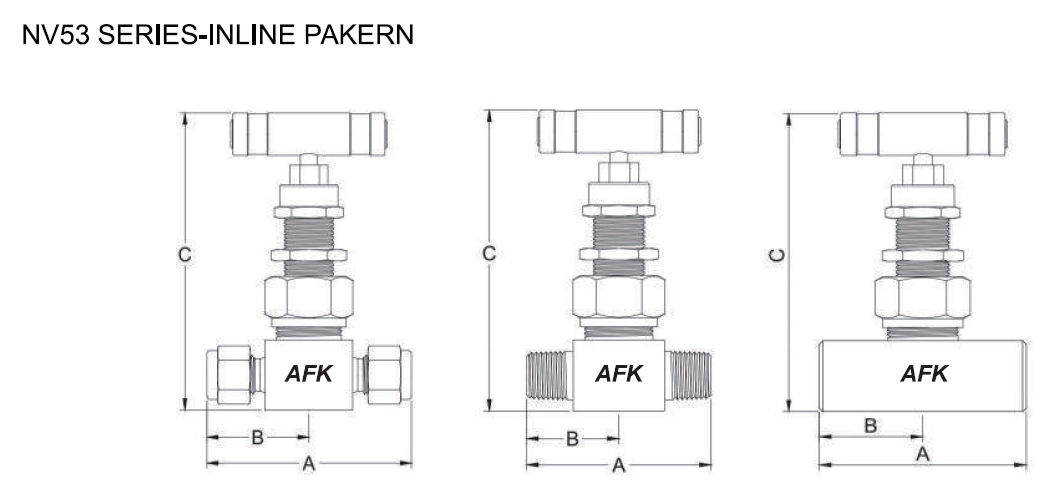

| Type | Conn./Size | Orifice | Dimensions(mm) | ||||
| Inlet/Outlet | mm | In. | A | B | C | ||
| AFK Tube End | Fractional | 1/4″ | 4 | 0.16 | 61.7 | 30.8 | 83.8 |
| 3/8″ | 6 | 0.24 | 73.5 | 36.7 | 103 | ||
| 1/2″ | 6 | 0.24 | 77.8 | 38.9 | 103 | ||
| 3/4″ | 10 | 0.39 | 101.9 | 50.9 | 128.4 | ||
| Male Thread | Fractional | 1/8″ | 4 | 0.16 | 46 | 23 | 83.8 |
| 1/4″ | 4 | 0.16 | 52 | 26 | 83.8 | ||
| 3/8″ | 4 | 0.16 | 54 | 26 | 83.8 | ||
| 1/4″ | 6 | 0.24 | 60 | 30 | 103 | ||
| 3/8″ | 6 | 0.24 | 62 | 31 | 103 | ||
| 1/2″ | 6 | 0.24 | 68 | 34 | 103 | ||
| 1/2″ | 10 | 0.39 | 80 | 40 | 128.4 | ||
| 3/4″ | 10 | 0.39 | 84 | 42 | 128.4 | ||
| Female Thread | Fractional | 1/8″ | 4 | 0.16 | 50 | 25 | 83.8 |
| 1/4″ | 4 | 0.16 | 50 | 25 | 83.8 | ||
| 1/4″ | 4 | 0.24 | 58 | 29 | 103 | ||
| 3/8″ | 6 | 0.24 | 58 | 29 | 103 | ||
| 1/2″ | 10 | 0.39 | 80 | 40 | 128.4 | ||
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
