1/8 1/4 3/8 3/4 inch Double Male SS Hex Nipple Featured Image
  • 1/8 1/4 3/8 3/4 inch Double Male SS Hex Nipple

1/8 1/4 3/8 3/4 inch Double Male SS Hex Nipple

Short Description:

Model No.: HN

Connection: male NPT  to male NPT (other thread are available)

Working pressure: 3000psi

Material: ss304, ss316


Product Detail

Product Tags

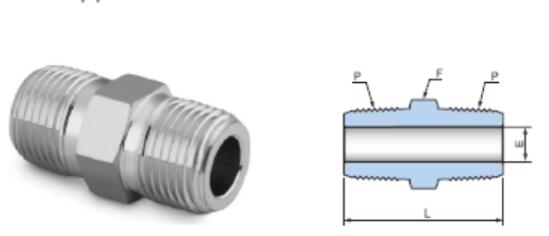

Male NPT to Male NPT

Male NPT to Male NPT

Part No.

P NPT

Dimensions (mm)

L

E

F

inch

mm

HM-02N

1/8

25.6

4.8

7/16

11.11

HN-04N

1/4

35.6

7.1

9/16

14.28

Hh-06N

3/8

36.3

9.6

11/16

17.46

HN-08lN

1/2

46.7

11.9

7/8

22.22

HN-12N

3/4

46.7

15.7

1-1/16

26.98

HN-16N

1

58.9

22.4

1-3/8

34.92

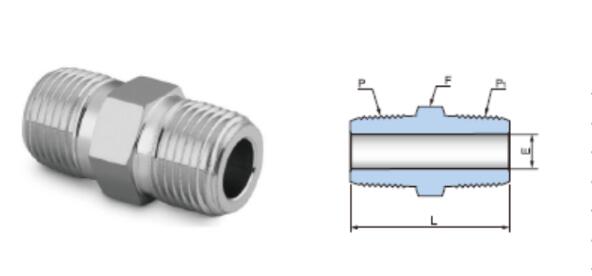

Male NPT to Male ISO Tapered Thread

Male NPT to Male ISO Tapered Thread

Part No.

P

NPT

P1

ISO7/1

Dimensions (mm)

L

E

F

inch

mm

HM-02N02R

1/8

1/8

25.6

4.8

7/16

11.11

HN-04N04R

1/4

1/4

35.6

7.1

9/16

14.28

HN-06N06R

3/8

3/8

36.3

9.6

11/16

17.46

HN-08N08R

1/2

1/2

46.7

11.9

7/8

22.22

HN-12N12R

3/4

3/4

46.7

15.7

1-1/16

26.98

HN-16N16R

1

1

58.9

22.4

1-3/8

34.92

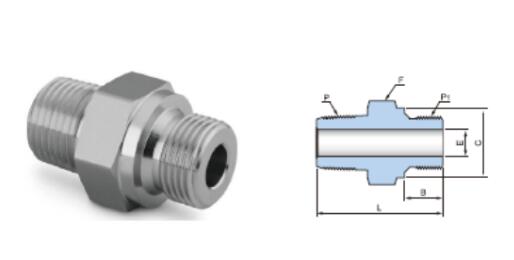

Male NPT to Male SO Parallel Thread

Male NPT to Male SO Parallel Thread

Part No.

P

NPT

P1

ISO7/1

Dimensions (mm)

L

B

C

E

F

inch

mm

HM-02N02G

1/8

1/8

27.7

7.1

13.8

4.1

9/16

14.28

N-04N04G

1/4

1/4

36.8

11.2

18.0

5.8

3/4

19.05

HN-06N06G

3/8

3/8

37.6

11.2

21.8

7.9

7/8

22.22

HN-08N08G

1/2

1/2

44.4

14.2

26.0

11.9

1-1/16

26.98

HN-12N12G

3/4

3/4

49.0

15.7

32.0

15.7

1-5/16

33.33

HN-16N16G

1

1

56.6

18.3

39.0

19.0

1-5/8

41.27
