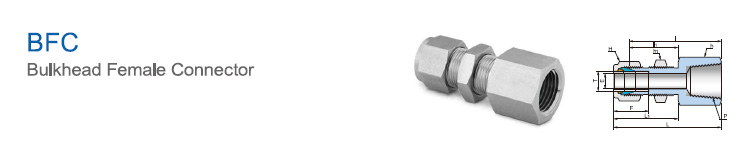

1/8 1/4 1/2 3/4 inch High Pressure Stainless Steel Gas Bulkhead Female Connector
Connects Fractional(inch) Tube to Male NPT Thread
|
Part No. |
TubeOD T |
P Min. |
Dimensions (mm) |
||||||||||||||
|
E Min. |
h |
h1 |
H |
F |
I |
I1 |
L |
L1 |
Panel Hde Size |
Max Pand Thickness |
|||||||
|
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
||||||||||
|
BFC-0202N |
1/8 |
3.17 |
1/8 |
2.3 |
9/16 |
14.28 |
1/2 |
12.70 |
7/16 |
11.11 |
12.7 |
38.1 |
24.6 |
44.7 |
31.2 |
8.3 |
12.7 |
|
BFC-0402N |
1/4 |
6.35 |
1/8 |
4.8 |
5/8 |
15.87 |
5/8 |
15.87 |
9/16 |
14.28 |
15.2 |
39.6 |
26.2 |
47.0 |
33.5 |
115 |
10.2 |
|
BFC-0404N |
1/4 |
6.35 |
1/4 |
4.8 |
3/4 |
19.05 |
5/8 |
15.87 |
9/16 |
14.28 |
15.2 |
44.5 |
26.2 |
51.8 |
33.5 |
11.5 |
10.2 |
|
BFC43604N |
3/8 |
9.52 |
1/4 |
7.1 |
3/4 |
19.05 |
3/4 |
19.05 |
11/16 |
17.46 |
16.8 |
47.8 |
29.5 |
55.1 |
36.8 |
14.7 |
11.2 |
|
BFC-0806N |
1/2 |
12.70 |
3/8 |
10.4 |
15/16 |
23.81 |
15,16 |
23.81 |
7/8 |
22.22 |
22.9 |
51.6 |
31.8 |
61.7 |
41.9 |
19.4 |
12.7 |
|
BFC-0808N |
1/2 |
12.70 |
1/2 |
10.4 |
1-1/16 |
26.98 |
15/16 |
23.81 |
7/8 |
22.22 |
22.9 |
56.4 |
31.8 |
66.5 |
413 |
19.4 |
12.7 |
|
BFC-1212N |
3/4 |
19.05 |
3/4 |
15.7 |
1-5/16 |
33.33 |
1-3/16 |
30.16 |
1-1/8 |
28.57 |
24.4 |
63.6 |
37.3 |
73.7 |
47.4 |
25.8 |
16.8 |
All metric BFCs are available with NPT standard threads. To order, add an "N" instead ol an "R" al the end.
Connects Metric Tube to Male ISO Tapered Thread
|
Part No. |
Tube OD T
|
P ISO7/1 |
Dimensions (mm) |
||||||||||
|
E Min. |
h |
h1 |
H |
F |
I |
I1 |
L |
L1 |
Panel Hole Size |
Max Panel Thickness |
|||
|
mm |
mm |
mm |
mm |
||||||||||
|
BFC-M0602R |
6 |
1/8 |
4.8 |
15.87 |
15.87 |
14.28 |
15J |
39.6 |
26.2 |
47.0 |
33.6 |
11.5 |
10.2 |
|
BFC-M0604R |
6 |
1/4 |
4.8 |
19.05 |
15.87 |
14.28 |
153 |
44.4 |
26.2 |
51.8 |
33.6 |
11.5 |
10.2 |
|
BFC-M0804R |
8 |
1/4 |
6.4 |
19.05 |
17.46 |
15.87 |
162 |
46.7 |
28.6 |
54.2 |
36.1 |
13.1 |
11.2 |
|
BFC-M1208R |
12 |
1/2 |
S.5 |
26.98 |
23.81 |
22.22 |
22.B |
56.4 |
31.8 |
66.5 |
41.9 |
1ft5 |
12.7 |
All metric BFCs are avalable with NPT standard threads. To order, add an instead of an "N" at the end.
Features
|
1.Available in size: 1/16" to 1", and 2mm to 25mm.
|
|||
|
2.Working temperature:-325℉~800℉ (-198℃~426℃).
|
|||
|
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
|
|||
|
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
|
|||
|
5.Zero leakage even under tough working conditions.
|
|||
|
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
|
|||
|
7.Simple to operate and save time and cost because of the usage of elastic seal.
|
|||
|
8.Available in wide variety of configurations.
|
|||
|
9.It can be reused.
|
